Disc Rotor 415mm Hendrickson MAXX22T

Amelia Varapodio on 28/05/2026

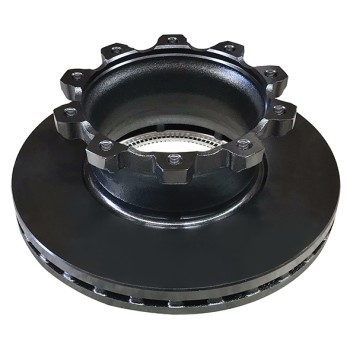

Hendrickson 415mm disc rotor with ABS ring and mounting hardware

Disc Rotor 415mm Hendrickson MAXX22T

$535.00

Hendrickson 415mm disc rotor suits MAXX22T HTD-415 and HXL7 HP disc brake wheel-end service, with mounting hardware and ABS ring included, plus a 250mm PCD, 150mm centre bore and 10-hole layout to help match the fitted hub before ordering.
Part number AP3237G.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP3237G Category: Tags: , , , , , , , , , , , , , , , , ,
This field is for validation purposes and should be left unchanged.

Description

Overview

Hendrickson 415mm disc rotor replaces the brake rotor in MAXX22T HTD-415 and HXL7 HP disc brake wheel-end service. It suits heavy trailer disc brake assemblies using the 415mm rotor, so check the fitted wheel end and rotor dimensions before ordering.

Features

  • 415mm disc brake rotor kit for MAXX22T HTD-415 applications.
  • Includes mounting hardware and ABS ring for the rotor change.
  • 10-hole layout with 250mm PCD and 150mm centre reference.
  • Supports HXL7 HP wheel-end service where the 415mm rotor is fitted.

Specifications and Materials

The Hendrickson 415mm disc rotor carries the rotor, ABS ring and mounting hardware needed for a complete rotor kit replacement.

Part number: AP3237G.

Measurement Value
Rotor diameter 415mm
PCD reference 250mm
Centre reference 150mm
Depth reference 44mm
Height reference 185mm
Mounting holes 10



See the Hendrickson brake systems parts list

Compatibility and Fitment

Match this rotor to Hendrickson WABCO MAXX22T, MAXX22T HTD-415 and HXL7 HP disc brake wheel ends. Confirm the 415mm rotor diameter, 10 mounting holes and 250mm PCD before fitting.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 98815-027, 98815027

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Disc pads to suit FB4683 Aftermarket brake pad set
Disc pads to suit FB4683G Genuine brake pad set
Brake pad kit FB4676 MAXX22T pad kit



Compliance and Safety

When fitting this rotor, clean the hub face, use the included hardware, follow the OEM torque procedure and check ABS ring position before returning the trailer to service. Also inspect pads, sensor parts and hub components because rotor wear often appears with other wheel-end service issues.

Trailer Applications

Workshops fit this Hendrickson 415mm disc rotor during rotor and pad service on 22.5 inch MAXX22T air disc brake trailer wheel ends. Fleets should compare the hub, wheel end and brake package before ordering because HXL7 wheel ends can use different rotor sizes.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

98815-027 98815027



Why Choose ICS Trailers

ICS Trailers supports heavy trailer brake work with parts-counter matching across rotors, pads and wheel-end components. For brake service, compare the current rotor and pad set before ordering so the workshop receives parts that match the axle setup.
