Description

Overview

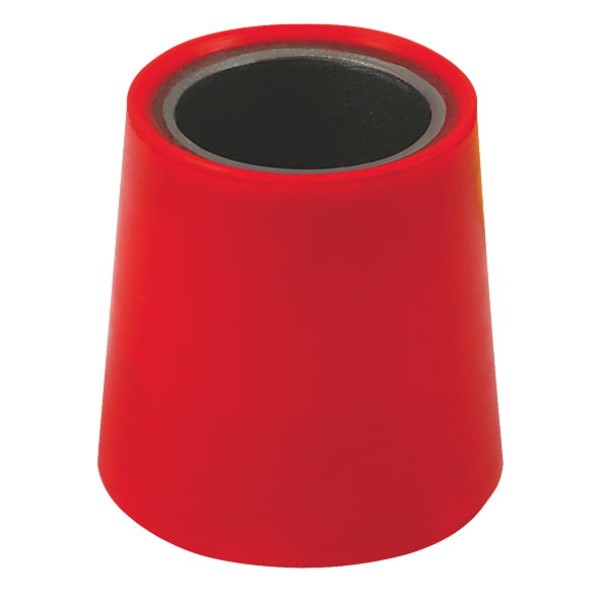

Polyurethane radius rod bush cushions movement through the rod eye and supports location in trailer suspension link assemblies. It suits replacement work when a worn bush starts adding slack, noise or uneven movement through the radius rod joint.

Features

• 55.6mm OD for housing match-up
• 31.75mm ID for pin or sleeve fitment checks
• 60.3mm length for rod eye width matching
• Polyurethane construction with 80-97 hardness range

Specifications and Materials

This bush measures 55.6mm OD, 31.75mm ID and 60.3mm length, so buyers can match the housing, pin and overall bush width before ordering. Its polyurethane construction carries an 80-97 hardness range, which suits general suspension bush service where a firmer replacement is required. Part number: SP1301P. For polyurethane material background, see the polyurethane elastomers guide for general reference

Compatibility and Fitment

Match the outside diameter, inside diameter and length against the rod eye and pin before ordering, and also check whether the old bush used a straight or stepped profile. Radius rod bushes often wear with the pin and surrounding hardware, so inspect the sleeve, bolt or pin surface while the joint is apart.

Compliance and Safety

Clean the housing bore before pressing the new bush into place, then confirm the pin or sleeve passes through square without cutting the bore. Replace bushes that show splitting, crush damage or loose fit in the housing, because joint movement can upset suspension control and tyre wear.

Trailer Applications

Workshops fit this polyurethane radius rod bush during trailer suspension rebuilds, rod eye service and routine bush replacement on mechanical suspension setups. It also suits jobs where the original bush has softened, shifted or worn out under repeated load.

Why Choose ICS Trailers

ICS Trailers also carries the matching rod pins, hardware and suspension service parts that commonly get checked in the same repair. Browse Suspension parts at ICS Trailers for matching radius rod and bush service parts
