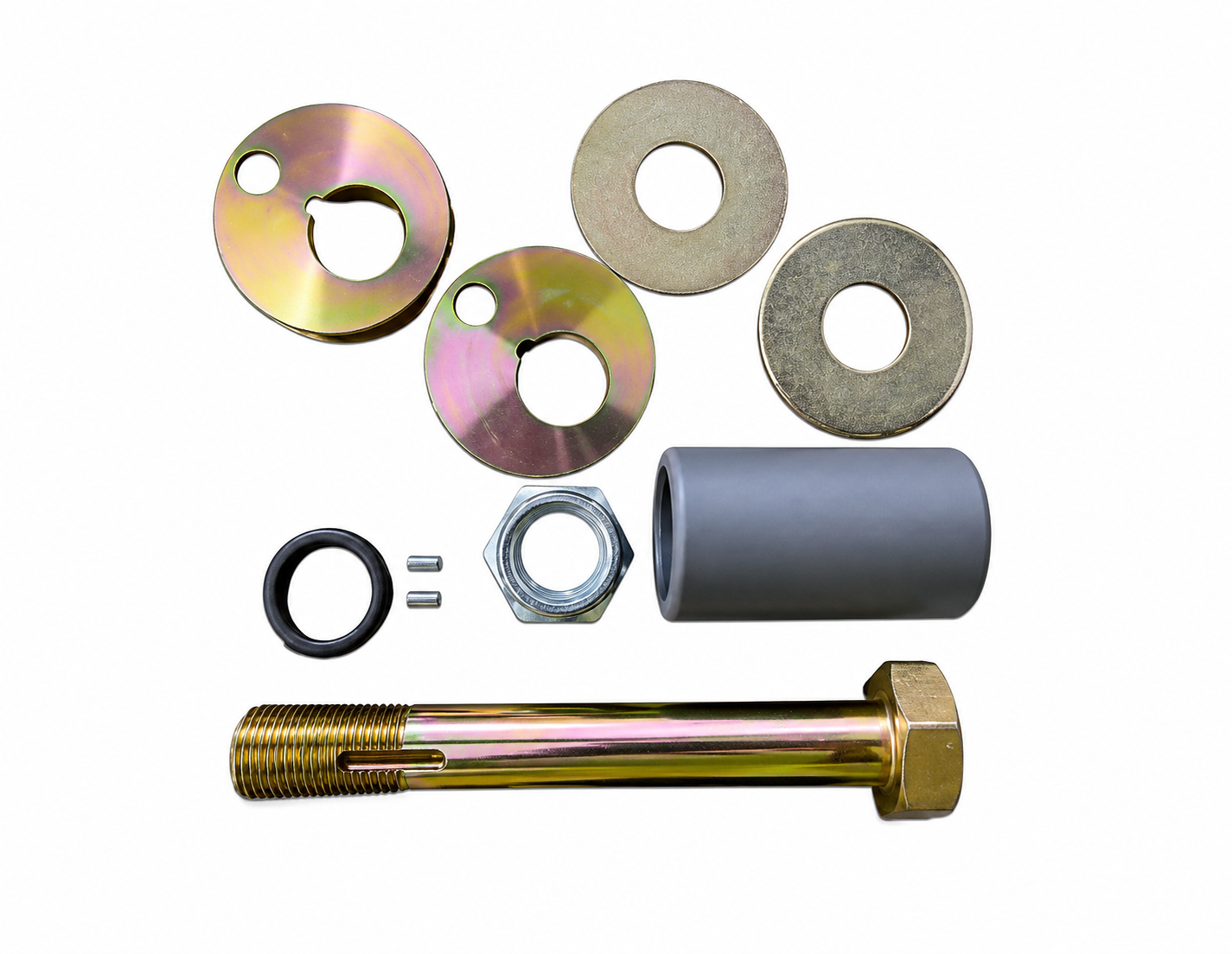

Pivot bolt kit RFS MK4 & MK5 renews the main pivot hardware on Krueger RFS air suspension spring arm assemblies. This kit suits RFS suspension service work where the pivot bolt, bush, boss, nut, washer and keyway components need replacement together.

The pivot area carries major suspension movement and alignment load, so replacing the kit as a set helps keep the spring arm located correctly through the hanger.

Features

• Includes pivot bolt, pivot bolt nut and spring washer.
• Includes two large internal flat washers and two pivot bolt keyways.
• Includes two inner and outer bosses.
• Includes one pivot bush for the spring arm pivot point.

Specifications and Materials

The pivot bolt kit RFS MK4 & MK5 suits RFS MK4 pivot service applications and should be matched against the removed hardware before fitting to MK5 suspension layouts.

Kit contents include 29-5038-1 pivot bolt, 295039 pivot bolt nut, 993108 pivot bolt spring washer, 29-5147-1 large internal flat washers, 29-5070-2 pivot bolt keyways, 29-5342-1 inner and outer bosses, and 294060 pivot bush.

Part number: 299384V-KIT.

Use the Krueger RFS suspension technical overview when checking RFS suspension family and service context

Compatibility and Fitment

Check the suspension mark, spring arm, hanger style and removed pivot hardware before ordering. For MK5 fitment, compare the full kit contents against the existing assembly because the official kit reference follows the MK4 pivot kit component set.
