Brake Drum 10 Stud 285 PCD 16.5 x 7

Allan Davis on 05/06/2026

Brake drum 10 stud 285 PCD 16.5 x 7

Brake Drum 10 Stud 285 PCD 16.5 x 7

$140.00

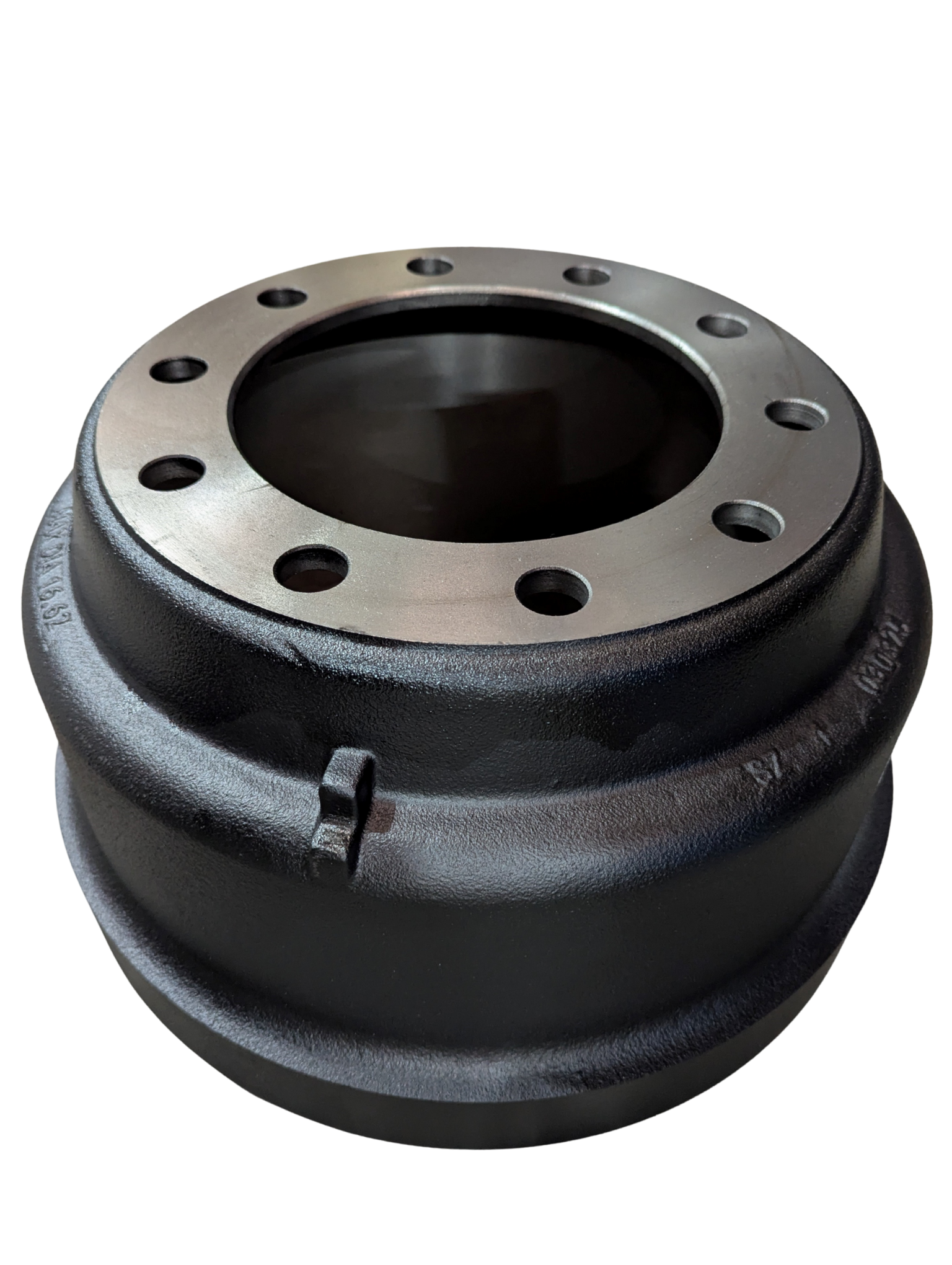

Brake drum 10 stud 285 PCD for 16.5″ x 7″ brake setups, with 223mm drum pilot, 269mm height and 23.88mm mount holes for matching common trailer and drive axle assemblies.

Part number 520.378.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: 520.378 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
This field is for validation purposes and should be left unchanged.

Description

Overview

Brake drum 10 stud 285 PCD supports 16.5″ x 7″ drum brake setups on heavy trailer and drive axle applications. This 10 stud drum matches 285 PCD hubs where the pilot, mount hole and drum height line up with the existing assembly.

The drum gives workshops a direct replacement path for common 10/285 brake layouts, but the removed drum should still be measured before ordering.

Features

  • 10 stud brake drum for 285 PCD hub layouts.
  • Suits 16.5″ x 7″ brake size.
  • 223mm drum pilot with 23.88mm mount holes.
  • Common fitment for trailer, truck and drive axle brake applications.

Specifications and Materials

The brake drum 10 stud 285 PCD has a 16.5″ x 7″ brake size, 223mm drum pilot, 269mm drum height and 10 mounting holes.

Mount hole size is 23.88mm, with 285mm PCD for 10 stud hub fitment.

Part number: 520.378.

Use the HVIA brake servicing and maintenance guide for heavy vehicle brake inspection context

Compatibility and Fitment

Match the PCD, pilot diameter, brake size, mount hole size and drum height before fitting. Also check the brake shoe width and hub mounting face, because a close-looking drum can still miss the correct offset or pilot.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. AP0875, AP0875C, 011014, 1108, 161-06123, 16106123, 3219F162A, 3600A, 60371, 66864, 786875, 79786875, DR190, EM32740, EP32740, F33-010, F33010, ITBD120, FRT-161-06123, FRT16106123, 55.190, 55190, BD751

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Shoe set to suit FB4012 Brake shoe lined wheel set
Q Plus shoe set FB4049AF557 Brake shoe lined wheel set
Spring to suit FB3449 Brake shoe return spring
Related assembly AP3374 Hub and drum assembly



Compliance and Safety

Inspect the old drum for cracking, scoring, heat spotting and oversize wear before replacement. If the hub, shoes or hardware show uneven wear, replace the affected parts during the same brake service.

After fitting, confirm wheel-end assembly, brake adjustment and roadworthiness before returning the trailer to service.

Trailer Applications

Trailers use this brake drum 10 stud 285 PCD on common 16.5″ x 7″ drum brake assemblies. It suits workshop replacement where the original 10/285 drum matches the pilot and height measurements.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

AP0875 AP0875C 011014
1108 161-06123 16106123
3219F162A 3600A 60371
66864 786875 79786875
DR190 EM32740 EP32740
F33-010 F33010 ITBD120
FRT-161-06123 FRT16106123 55.190
55190 BD751



Why Choose ICS Trailers

ICS Trailers supplies brake and wheel-end parts for trailer repairers who need clear measurements before ordering.
