Description

Overview

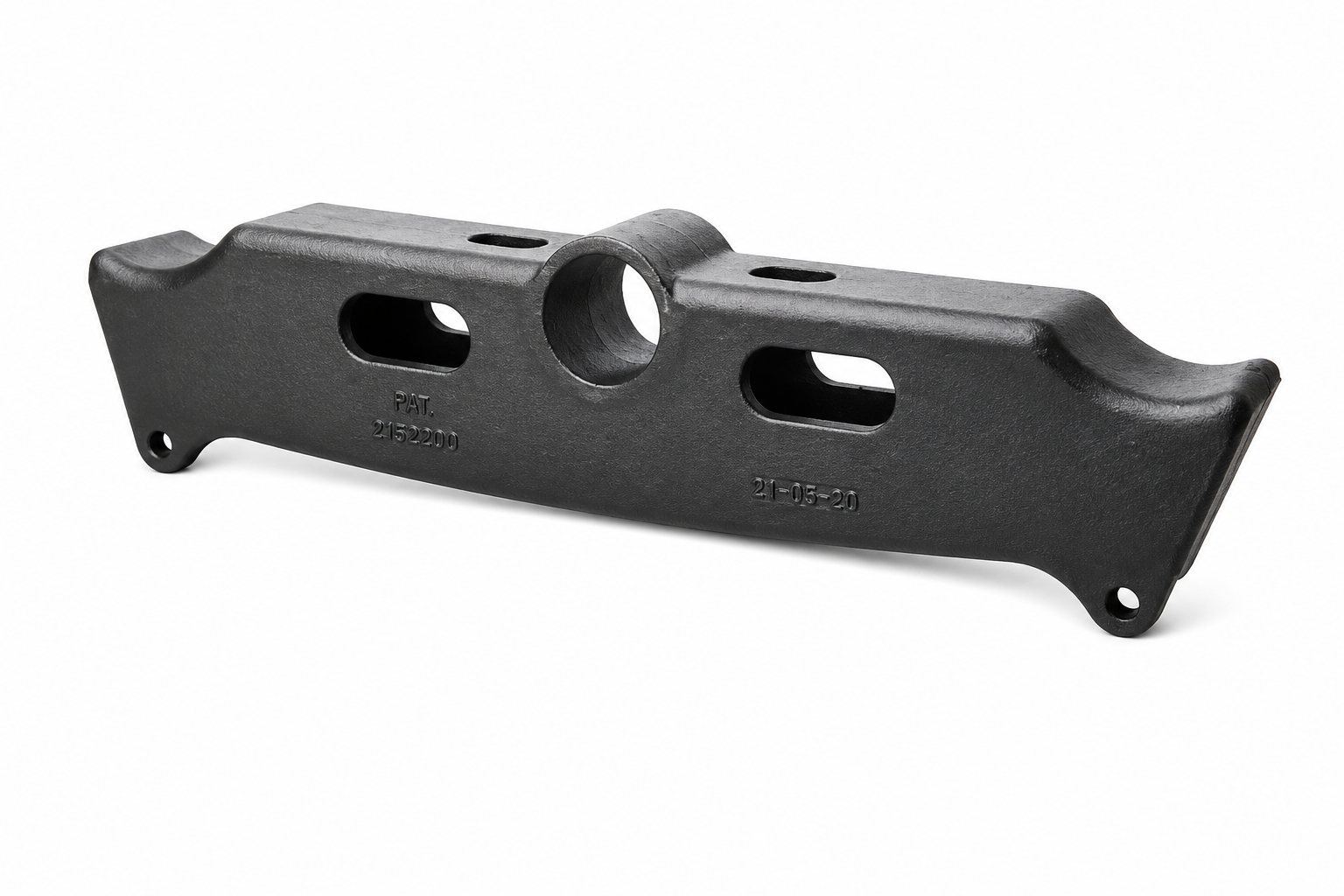

Equaliser rocker 9’1 carries the load transfer point through GP mechanical trailer suspension. This cast rocker suits 2.7m axle spread trailer setups and helps the suspension share load between spring positions as the trailer moves.

The 9’1 layout needs careful matching against the existing rocker, bush and pin arrangement, because small differences in spread or bush style can change the fit.

Features

• Suits GP suspension with 2.7m axle spread.
• Cast iron rocker for mechanical trailer suspension service.
• Matches 9’1 suspension rocker and equaliser applications.
• Supported by matching bush and rocker pin service parts.

Specifications and Materials

The equaliser rocker 9’1 suits Fuwa K-Hitch GP suspension layouts and also matches equivalent 9’1 suspension rocker applications where the existing dimensions line up.

Dimension guide values are A 470mm, B 595mm and C 110mm. Material is cast iron.

Part number: KH690020.

Use the Fuwa K-Hitch mechanical suspension parts view for suspension layout and service part checks.

Compatibility and Fitment

Check the axle spread, hanger layout, bush style and rocker pin before ordering. For 2.7m GP suspension, compare the removed rocker against the 9’1 profile and confirm the matching pin and bush setup at the same time.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. SP1190, 099366, 21204062, 900020, CPB69653, FL82.2118, FL822118, SXT-09-9366, SXT099366

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the mating hanger, pin, bush and washer surfaces before fitting the new rocker. Also replace worn pins or bushes during the same job, otherwise the new rocker may wear unevenly.

Tighten suspension hardware to the correct workshop specification and re-check the assembly after initial service.

Trailer Applications

Workshops fit this equaliser rocker 9’1 on heavy trailer GP mechanical suspension where the 2.7m spread matches the suspension layout. It suits repair work where the original rocker has cracked, elongated through the bush area or worn beyond service limits.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
