Description

Overview

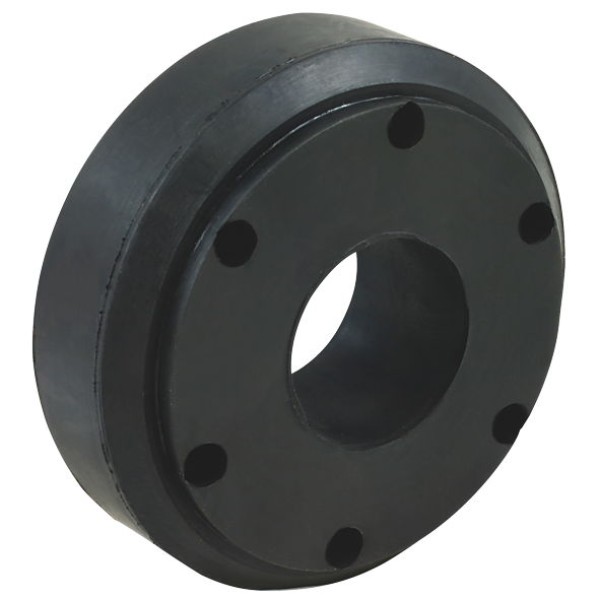

Outer pivot bush York Tecair FB absorbs load at the outer pivot position and keeps the hanger joint supported as the suspension moves. The rubber body cushions movement, while the large outside diameter locates firmly in the housing. It suits York Tecair FB layouts that use a 148.30mm outer diameter, 56.6-60mm inner diameter and 50mm height. When the old bush hardens, cracks or runs loose, this replacement helps restore stable pivot support.

Features

• Rubber outer pivot bush for York Tecair FB suspension
• 148.30mm outer diameter with 56.6-60mm inner diameter
• 50mm height for the matching outer pivot position
• Match housing size, pivot location and pin fit before ordering

Specifications and Materials

This bush measures 148.30mm on the outside, 56.6-60mm on the inside and 50mm high. The size suits the outer pivot position on York Tecair FB suspension layouts that use this larger rubber bush. Check the housing, pivot pin and bush seat before fitting, because a worn pin or damaged bore can shorten bush life. Part number: SP1432.

See the York Tecair FB spare parts guide

Compatibility and Fitment

Match the outer diameter, inner diameter range, height and bush position before ordering. This part suits the outer pivot location on York Tecair FB suspension layouts when the original bush uses the same size. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 610012, 61610012, BP7201, C610012

Compliance and Safety

Support the trailer before removing any loaded pivot joint. Inspect the pivot pin, housing bore and matching inner bush, because a new outer bush will not correct worn companion parts. Press the bush in squarely and follow the suspension maker’s fitting method. After assembly, recheck the pivot for free movement and correct clamp load.

Trailer Applications

Workshops fit outer pivot bush York Tecair FB parts during pivot bush service, pin replacement and suspension rebuild work. It suits jobs where the outer bush has worn in the housing or lost support around the pivot pin. Outer pivot bush York Tecair FB also suits planned maintenance on York Tecair FB trailer suspensions that use this bush size and layout.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers carries pivot bushes, pins and related suspension service parts used in York Tecair FB repairs. That matters when a worn pivot joint needs more than one part to finish the job properly.
