Description

Overview

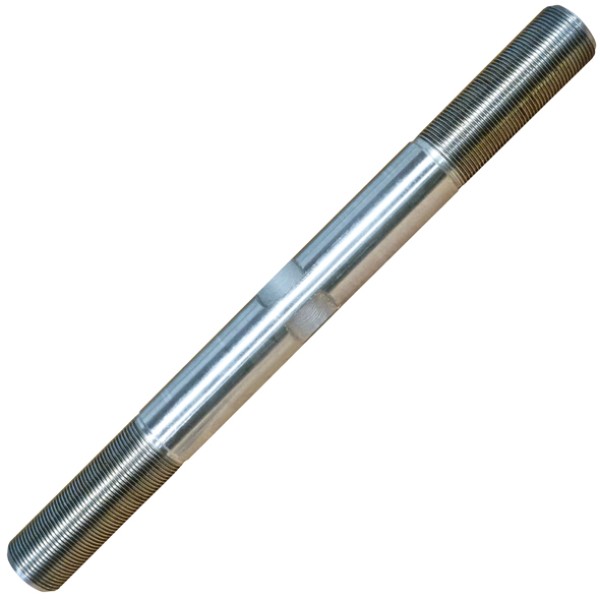

Radius rod adjustable screw 420mm changes rod length in adjustable radius rod and torque rod assemblies. That lets mechanics set axle position and keep the suspension tracking correctly. The 420mm screw length and 38mm (1.5″) thread size suit common trailer suspension layouts across TMC, Fuwa, YTE, York, R.O.R and Sinclair applications. Use it where the existing screw matches those dimensions. When the original thread is seized, damaged or worn, this replacement helps restore clean adjustment through the rod assembly.

Features

• 420mm adjustable screw for radius rod and torque rod assemblies
• 38mm (1.5″) thread size for matching suspension rod ends
• Suits selected TMC, Fuwa, YTE, York, R.O.R and Sinclair setups
• Match thread size, screw length and mating ends before ordering

Specifications and Materials

This adjustable screw measures 420mm (16.5″) long and carries a 38mm (1.5″) thread size. It suits trailer suspension rod assemblies with a replaceable adjustment screw between matching threaded ends. Check the installed screw length, thread size and rod-end arrangement first. Those details control how the rod adjusts on the trailer. Part number: SP1420.

See the SAF-HOLLAND trailer suspension alignment guide

Compatibility and Fitment

Match the overall screw length, thread size and mating rod ends before ordering. This part suits adjustable radius rod and torque rod setups on TMC, Fuwa, YTE, York, R.O.R and Sinclair suspension layouts when the dimensions match. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 21016433, 323133/03, 32313303, 900033-03, 90003303, 901017S, KH600006/415, KH600006415

Compliance and Safety

Support the trailer before loosening any suspension rod hardware. Measure the existing rod position before disassembly so alignment stays close during refit. Clean the threads and inspect the mating ends. A new screw will not correct damaged rod ends or worn lock points. After installation, set the trailer at ride height and tighten all related hardware to the suspension maker’s procedure.

Trailer Applications

Workshops use radius rod adjustable screw 420mm parts during suspension rebuilds, axle tracking corrections and routine rod repairs. It suits jobs where the original adjustment screw has seized or the threads have worn out. Radius rod adjustable screw 420mm also fits planned maintenance where matching TMC, Fuwa, YTE, York, R.O.R or Sinclair rod assemblies need a direct screw replacement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers carries suspension screws, rod ends, bushes and pins that are regularly replaced during trailer suspension repairs. That matters when one worn adjustment point turns into a larger rod rebuild and the matching service parts are needed from the same place.
