Description

Overview

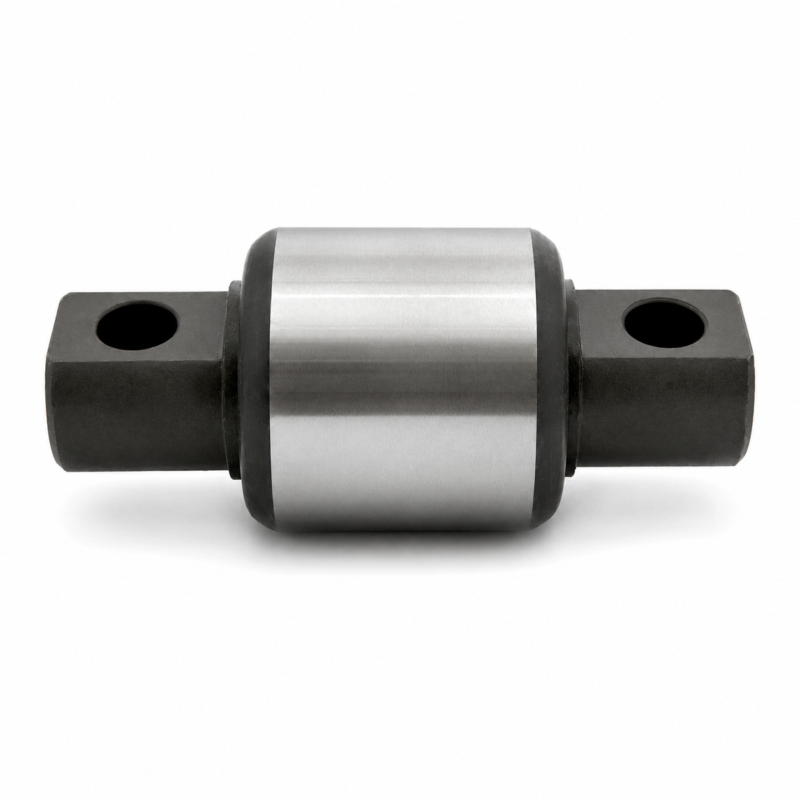

The Kenworth Airglide torque rod bush locates the torque-rod connection in axle and differential suspension. Match the 70mm body diameter, 17.7mm bolt bore and 111.1mm bolt-hole centres.

Features

• Rubber suspension bush with non-rotational straddle mounting.
• One bush supplied per box.

Specifications and Materials

Body diameter is 69.85mm, bolt bore is 11/16in and bolt-hole spacing is 4.375in centre to centre. Part number: 001.220A.

See the manufacturer technical reference

Compatibility and Fitment

Compare body diameter, bore and pin spacing before ordering. Applications include Kenworth AG200, AG230, AG400 and AG460 Airglide systems, T660 trucks, plus corresponding Neway and ROR-Meritor setups. A similar-looking bush with different spacing or bore will not match correctly.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. R3010303, 836940, 839310, 90008265, TRB6825, E-10303, E10303, 321-369, 321369

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect mounting holes, fasteners and adjoining torque-rod surfaces for wear or damage before fitting.

Trailer Applications

This bush suits heavy truck and trailer suspension repairs where torque rods control axle location.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The 111.1mm bolt centres, 70mm body and 17.7mm bore are the quickest checks. If the old bush is unmarked, send photos, measurements and suspension details so ICS Trailers can help narrow the match.
