Description

Overview

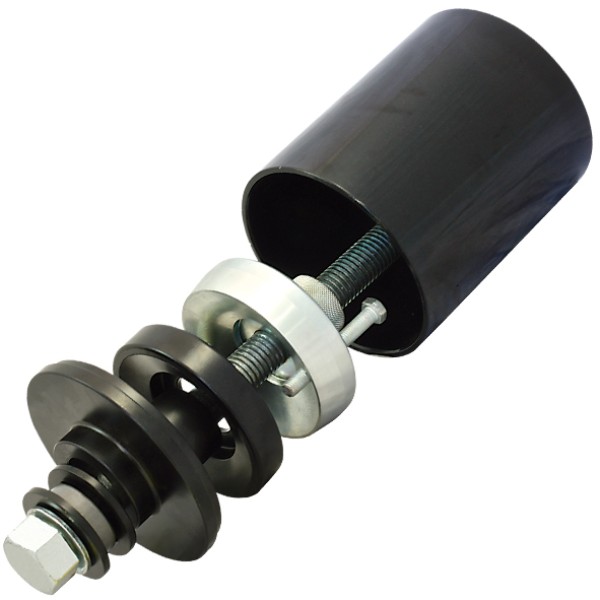

Hendrickson Wide Beam Bushing Replacement Tool is used to remove and install pivot bushings in wide beam trailer suspensions while keeping the bushing square during service. Because tri-functional bushings rely on correct orientation, this kit helps support controlled installation and removal without side-loading the beam or tool.

Use it when you need steady, controlled force across the bushing and suspension arm, and follow a consistent tightening sequence to keep the job aligned.

Features

• Tri-functional bushing installation and removal tool kit for wide beam applications

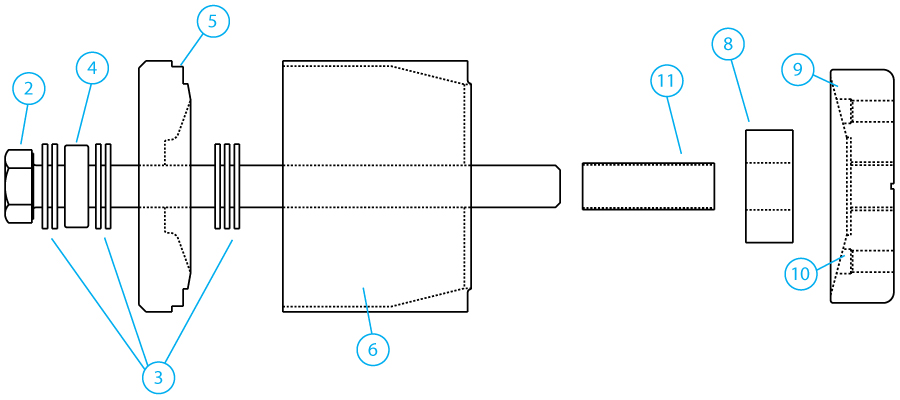

• Includes bolt, plates, thrust bearing, washers and spacers
• Supplied with one tube of high pressure lube for tool use
• Helps maintain bushing alignment during installation and removal

Specifications and Materials

Hendrickson Wide Beam Bushing Replacement Tool is an aftermarket service kit for wide beam trailer suspension pivot bushings. It includes the tool components and one tube of high pressure lubricant to help protect threads and bearing faces during use.

Part number: CA7899.

Read the Hendrickson bushing tool instructions (L466) for tool use and lubrication guidance as part of your service planning.

Compatibility and Fitment

Confirm you are working on a wide beam pivot connection before ordering, as other suspension types use different bushing tools. Mark the existing bushing orientation, lubricate the tool, and tighten in small steps so the bushing does not bind. Keep the tool square during removal and support the arm to avoid side loading.

Cross-reference numbers: S21307A, 21307, BP7220, 13571, 13581, TRB5912-T, TRB5912T, 334-936, 334936, E-9575, E9575, HT210, S-21307, S21307, R309575, SH2034, C5994, S5994, C-5994, S-5994, BWP HE9AA-T, BWPHE9AAT.

Compliance and Safety

Support the trailer with approved stands before starting work, and keep hands clear of pinch points during tightening. Lubricate the threads and bearing surfaces before use, otherwise friction can damage the tool or prevent the bushing from seating correctly. Do not use a 1 inch drive impact wrench on this tool, and follow the procedure for controlled tightening.

Trailer Applications

This tool suits workshop servicing on heavy trailers that use wide tri-functional pivot bushings in the suspension arm. It is used for rebushing work where controlled installation and removal matter.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
