Description

Overview

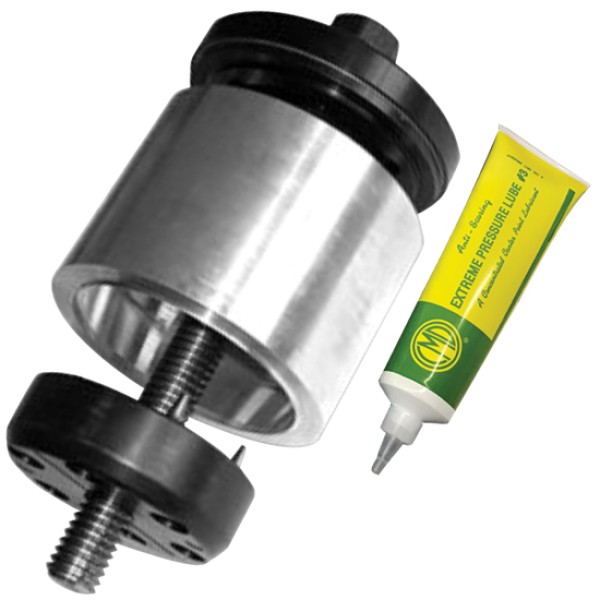

Hendrickson tri-functional narrow rebush tool is used to remove and install a TRI-FUNCTIONAL pivot bushing without removing the suspension from the trailer. It gives workshops a controlled press method for rebushing work while helping keep bushing orientation consistent during removal and installation.

Features

• Removes and installs a TRI-FUNCTIONAL bushing with the suspension left in place
• Tool layout supports correct bushing orientation during seating
• High-grade metal components for repeat workshop use
• Black oxide coating helps resist corrosion

The instructional video below shows the general process and what to watch for during bushing setup.

Specifications and Materials

Part number: CA7903.

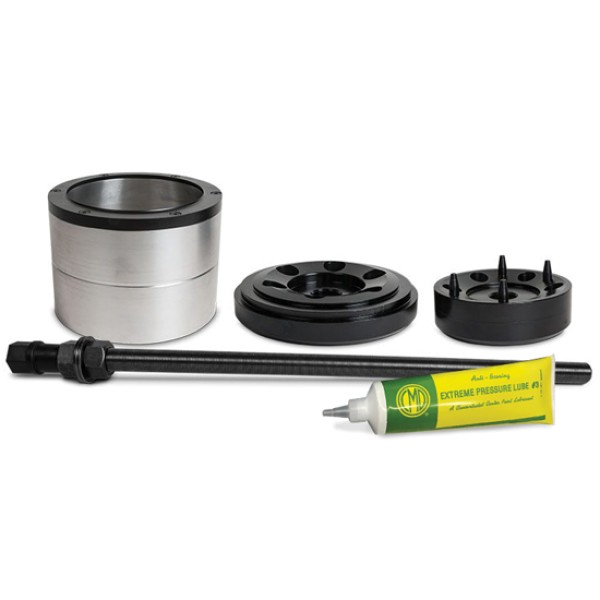

This tool set uses service-grade metal hardware and clamp plates for TRI-FUNCTIONAL bushing work. Correct lubrication is important to protect the threads and bearings during use.

Use the Hendrickson bushing tool instructions for lubrication points, setup steps, and the recommended drive size during removal and installation.

Compatibility and Fitment

Check the suspension ID before starting and confirm the trailer uses the narrow TRI-FUNCTIONAL III pivot bushing. This tool suits narrow TRI-FUNCTIONAL III applications on Hendrickson trailer suspensions, including Vantraax and Intraax assemblies that specify the narrow bushing tool.

Cross-reference numbers: S24736, S-24736, E-14634, E14634, 22-924, 22924, 334-1655, 3341655, TRB5914-T, TRB5914T, WA13-1002, WA131002, HT253, PT50-59736, PT5059736, HE9BL-T, HE9BLT, HENS-24736, HENS24736, HDRS24736, HT-S-24736, HTS24736, 8446-S24736, 8446S24736, GAFF13623, R3014634.

Compliance and Safety

Support the trailer correctly, isolate the air supply, and follow lock-out procedures before working on suspension pivot points. Keep hands clear of pinch points, use the drive size specified in the instruction guide, and do not use a 1 inch drive impact wrench where a smaller drive is specified. Lubricate threads and thrust surfaces as directed to avoid tool damage and poor insertion control.

Trailer Applications

This tool suits workshop rebushing work on heavy trailer suspensions, including scheduled maintenance, crash repairs, and pivot wear rectification. It is useful where the bush needs to be serviced in place to keep the job moving without removing the suspension assembly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
