Description

Overview

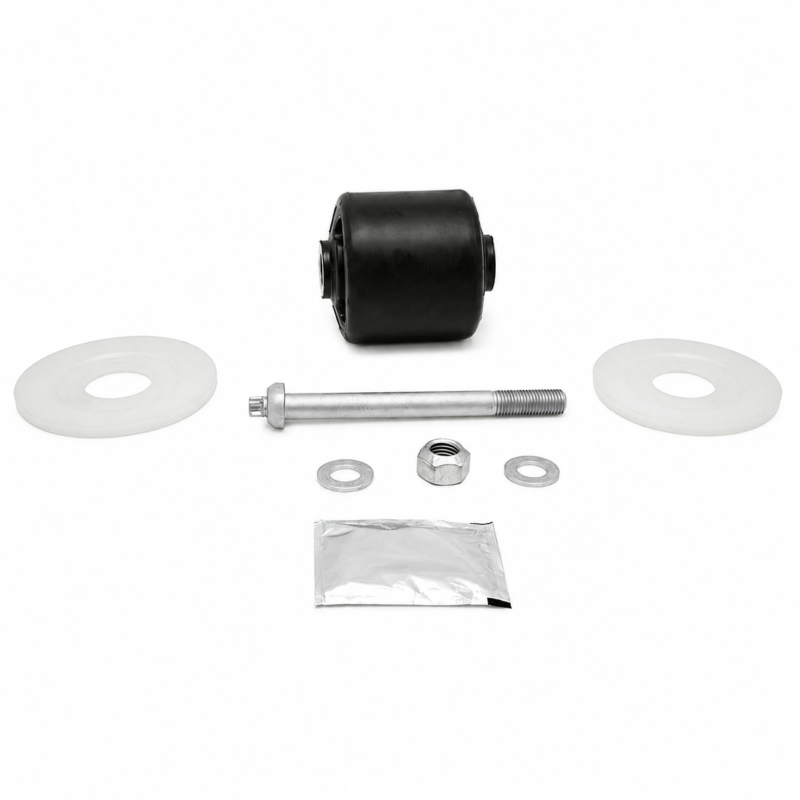

The Hendrickson Quick Align wide pivot bush kit restores the TRI-FUNCTIONAL pivot connection on compatible Hendrickson trailer air suspension. The wide bush configuration suits selected INTRAAX, VANTRAAX and HT suspension systems where the existing pivot arrangement uses the matching QUIK-ALIGN hardware.

Features

• Wide TRI-FUNCTIONAL rubber pivot bush
• Includes the pivot bolt hardware required for the bush connection
• Includes bushing tube spacers and installation lubricant
• One bush per kit for an individual pivot connection

Specifications and Materials

The kit combines a rubber TRI-FUNCTIONAL bush with the QUIK-ALIGN pivot bolt components, bushing tube spacers and lubricant required for the matching pivot assembly.

Part number: 500.569.

See the Hendrickson INTRAAX suspension parts information

Compatibility and Fitment

Applications include compatible Hendrickson HT230, HT250 and HT300 suspension families together with selected INTRAAX and VANTRAAX systems. Confirm that the existing suspension uses the wide TRI-FUNCTIONAL bush and QUIK-ALIGN pivot arrangement, because narrow bush and welded-alignment versions use different components.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes.

SP8916, SP8916G, S-31624, S31624, A-31624, A31624, E10729A, R3010729A, S24691, S21166, C21166, S24681, S24112, S31624S, A31624S, MHS736, 3341576, HT245, HT248

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Support the trailer correctly before dismantling the pivot connection. Inspect the hanger faces, bush tube area and surrounding hardware for wear before fitting the replacement. Use suitable bushing service tooling, then complete suspension alignment and final pivot fastener tightening through the correct Hendrickson workshop procedure.

Trailer Applications

The Hendrickson Quick Align wide pivot bush kit suits suspension pivot repairs where the wide bush has deteriorated, separated or developed excessive movement. Each kit services one pivot position, so check the number of bushes required for the trailer suspension before ordering.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The main selection risk is confusing the wide bush with the narrow TRI-FUNCTIONAL version or another Hendrickson pivot arrangement. Check the suspension model, existing bush width and QUIK-ALIGN hardware before pulling the pivot apart. ICS Trailers can also help match the separate pivot bolt kit or narrow bush alternative where the existing suspension does not use this wide configuration.
