Description

Overview

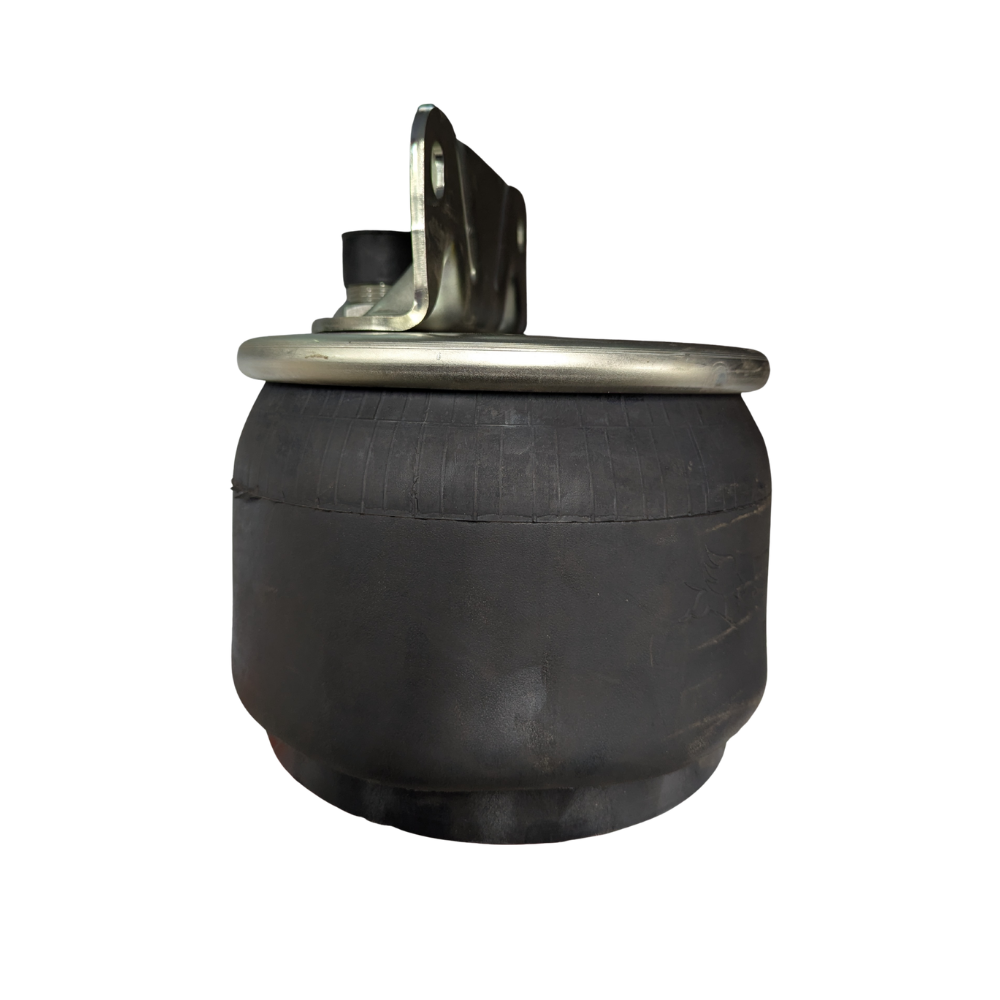

Firestone Air Spring Assembly Airglide 200 helps restore correct ride height and ride control on Kenworth Airglide 200 suspensions from 1998 onwards. When an air spring leaks or fatigues, the suspension can sag, increase vibration, and accelerate wear in mounts and tyres. Replacing the complete assembly helps bring the system back to stable, predictable performance.

Features

• Designed for Kenworth Airglide 200 11.8in applications from 1998 onwards.
• Supports consistent ride height, which helps reduce harshness and uneven wear.
• Operates across a wide temperature range from -54°C to +57°C.
• Complete assembly format, which simplifies service compared with piecemeal repairs.

Specifications and Materials

This air spring assembly uses a reinforced elastomer bellows to carry load and help isolate road shock. Correct sealing at the bead plates and air port also helps prevent pressure loss under normal operating conditions. Firestone Air Spring Assembly Airglide 200 is supplied as a complete unit for straightforward replacement. Part number: SP0052FA.
See the ContiTech air spring cross-reference datasheet which lists equivalent identifiers and torque guidance

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. W01-358-9625, W013589625, W01-544-9675 off bag, W015449675offbag, K303-28, K30328, 9 9-10 P 538 (BK), 9910P538(BK), 68360, 1R11-222, 1R11222, 566223021, AS-8538, AS8538, AS96250, 1DK20H-9625X, 1DK20H9625X, AS9625, K-303-25, K30325, K-303-23, K30323

Compliance and Safety

Follow the vehicle manufacturer’s mounting instructions and use trained technicians for installation. Support the vehicle safely, isolate air pressure before removal, and use suitable PPE during service. After installation, perform a leak check and confirm the suspension reaches its normal ride height without fouling nearby components.

Trailer Applications

Although this assembly targets Kenworth Airglide 200 systems, air spring assemblies are also common across heavy trailer combinations. Firestone Air Spring Assembly Airglide 200 may suit some trailer suspension repairs when the mounting style and identifiers match the cross-reference section. Confirm fitment by checking the existing spring style, air port orientation, and suspension model before ordering.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Additionally, use these identifiers as a guide only and confirm the physical mounting style on the vehicle before installation.

Why Choose ICS Trailers

ICS Trailers focuses on heavy vehicle suspension parts and can help you confirm the right replacement approach. You can also bundle related air suspension service items to complete the job in one order. If you are unsure, share your suspension model and we will help you narrow it down.
Browse Suspension parts at ICS Trailers for related air suspension parts.
