Description

Overview

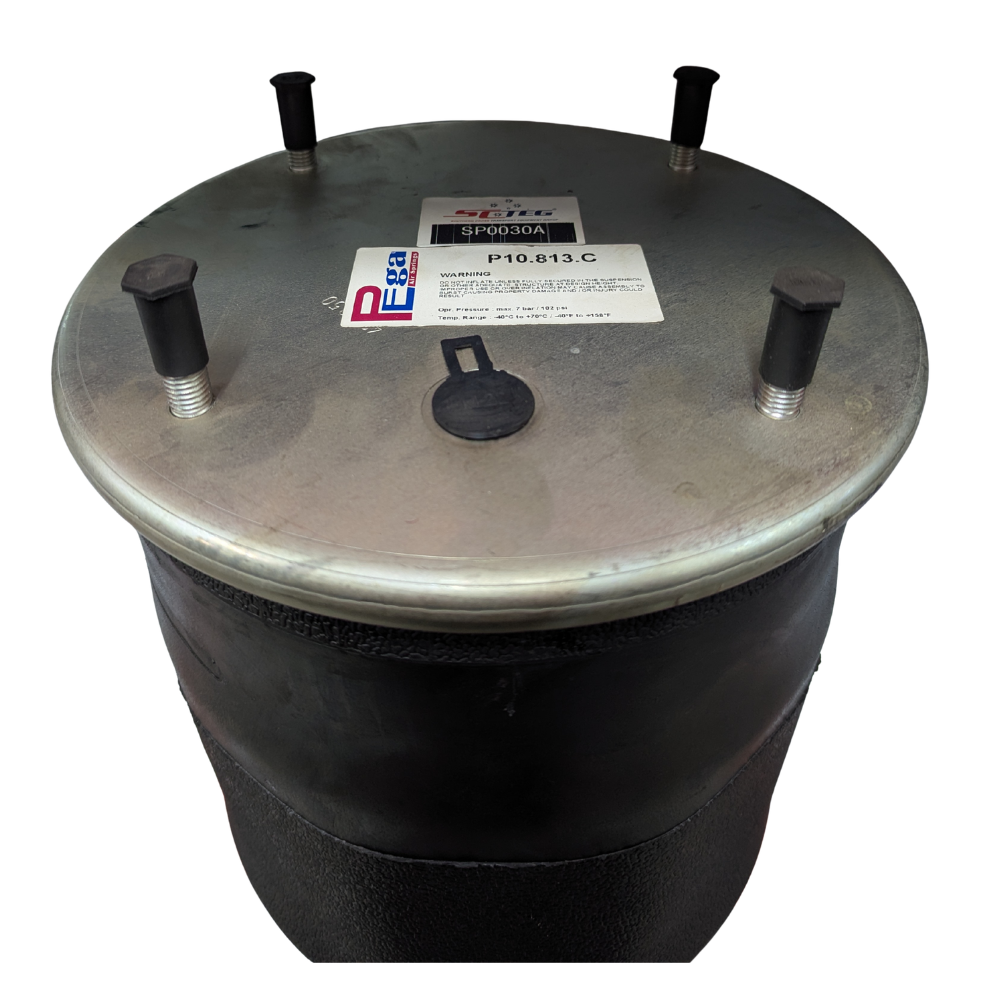

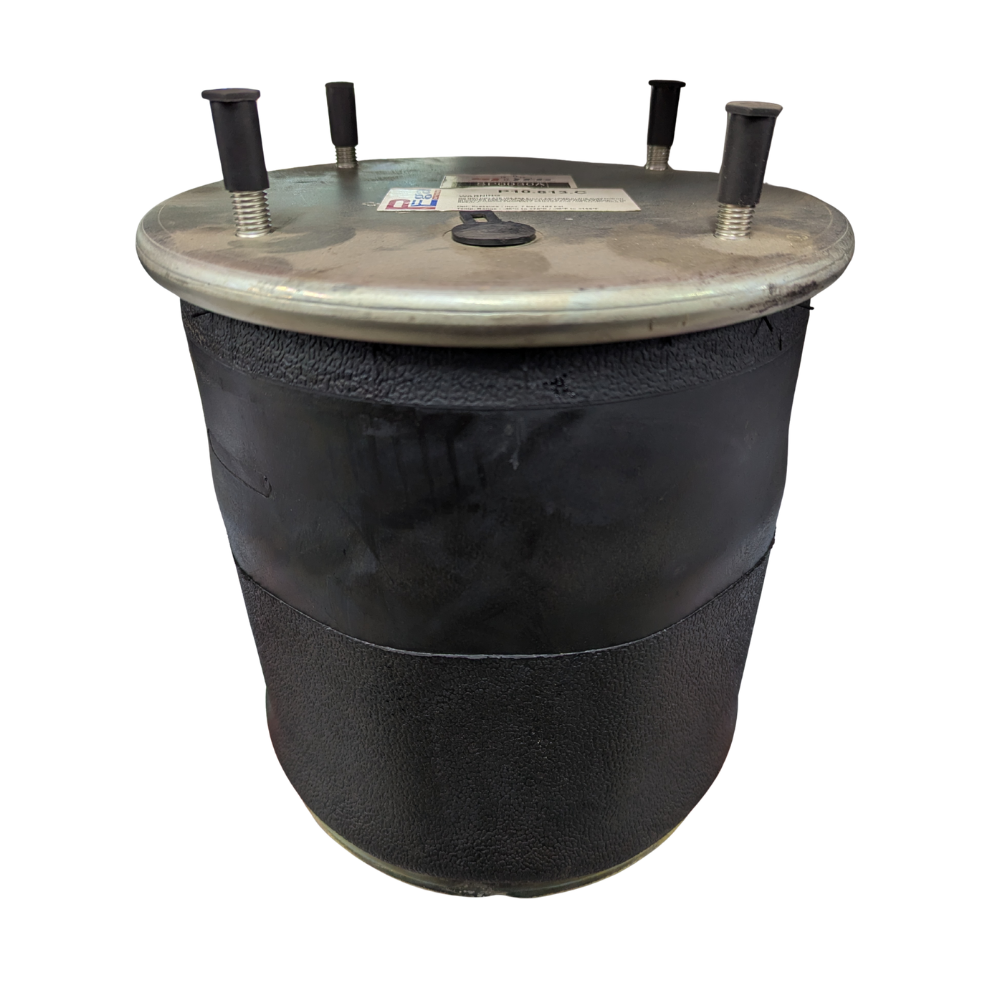

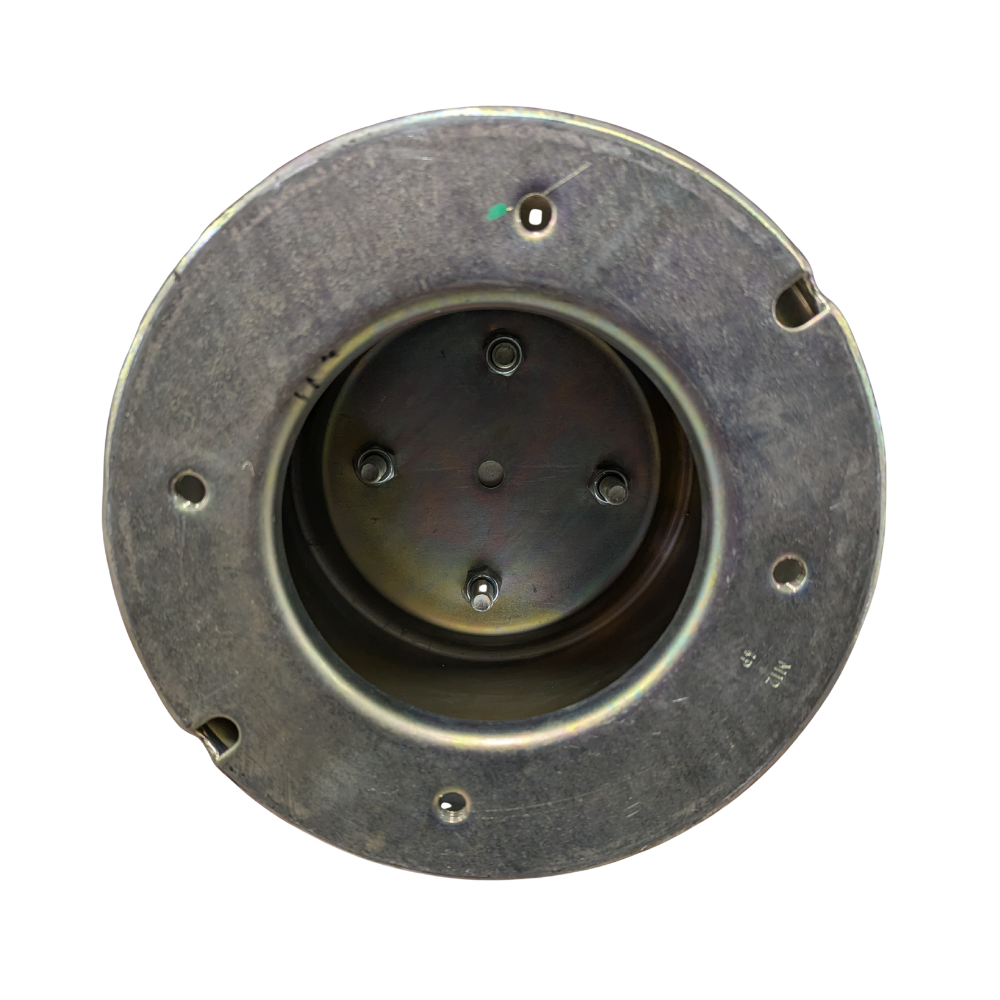

ROR York air spring assembly is a replacement air spring for ROR FL11000 and York suspensions across truck and trailer applications. It supports ride height and load sharing, helping reduce vibration. Replace the unit if it leaks or sags because air loss can affect handling.

Features

This ROR York air spring assembly is built for regular suspension service and day-to-day use.

• Supports stable ride height and axle load sharing
• Max operating pressure 7 bar (100psi)
• Operating temperature range -40°C to +70°C
• Suits common ROR and York suspension layouts

Specifications and Materials

This assembly is designed for suspension service, so it tolerates repeated compression cycles. The reinforced bellows also helps seal the air chamber for consistent operation. Part number: SP0030A.

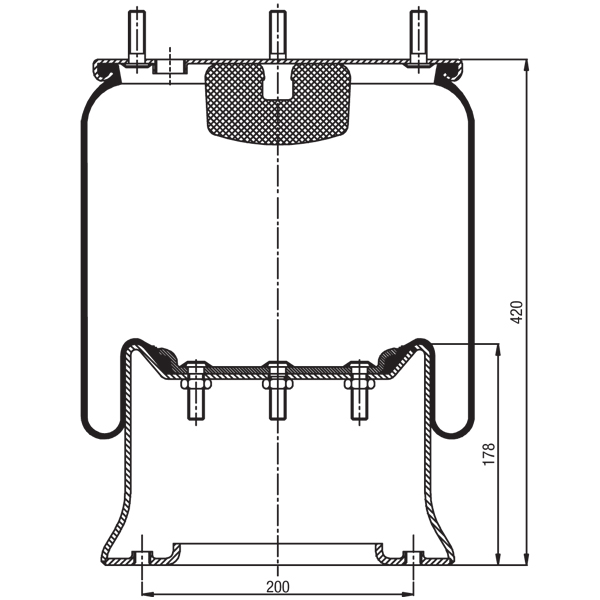

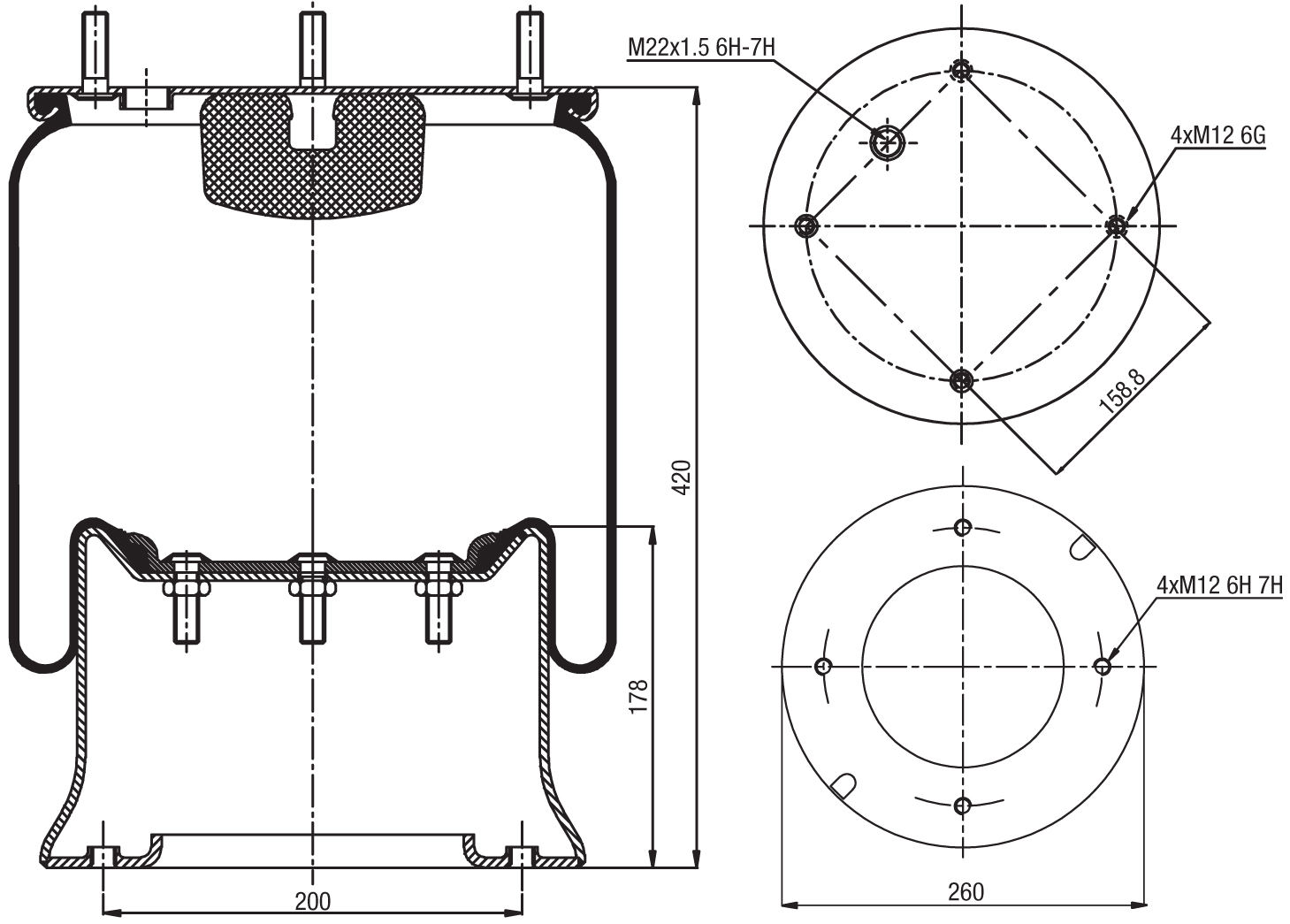

For dimensional and load reference data, use the Firestone 1T19L-11 technical data sheet when checking envelope space and design height

Compatibility and Fitment

This ROR York air spring assembly suits ROR FL11000 and York suspension setups, however confirm mounting details before ordering. Inspect air lines and fittings as well because leaks can come from ageing hose or loose connections. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 813 MB, 813MB, 1T19L-11, 1T19L11, W01 M58 6364, W01M586364, 1R14-705, 1R14705, 505 859/785170/B2063, 505859/785170/B2063, 2229000300, 1384274, 003615E, C01-M58-1164, C01M581164, P10.813A, P10813A, 2689002000, W01 M58 6339, W01M586339, 87408, 15634

Compliance and Safety

Depressurise the air system before removal and support the chassis, otherwise stored pressure can release suddenly. After fitting, check joints for leaks and confirm the system holds pressure.

Trailer Applications

Common uses include:

• Linehaul and general freight trailers using ROR or York air suspension
• Van, curtain sider, and flat top trailers where level ride height matters
• Tipper and bulk bodies that see high cycle loading

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Therefore, confirm mounting details before ordering.
