Description

Overview

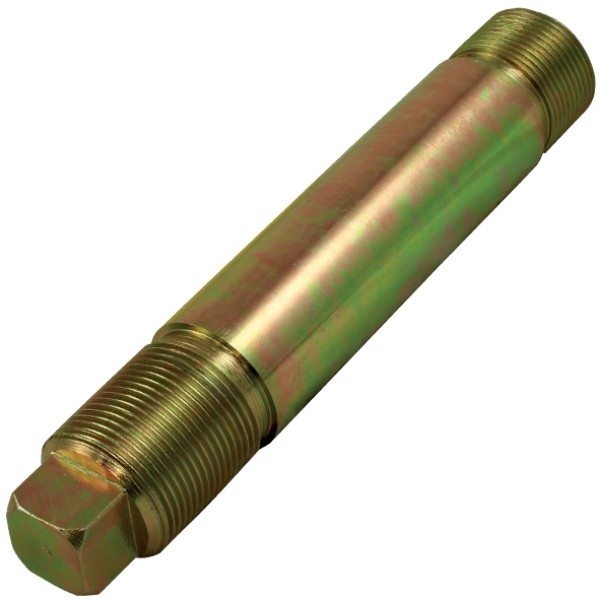

Reyco 102 equaliser pin secures the centre rocker pivot in mechanical suspension and keeps the equaliser assembly located under load. It suits Reyco 102 service work where a worn shaft, damaged thread or seized pivot starts affecting rocker movement and clamp force through the hanger.

Features

• 38mm shaft diameter for Reyco 102 equaliser fitment
• 212mm overall length for match-up during suspension service
• 1-7/16″ UNF thread for correct retaining hardware engagement
• Built for centre rocker pivot replacement in mechanical suspension assemblies

Specifications and Materials

This pin measures 212mm overall with a 38mm shaft and 1-7/16″ UNF thread, so it gives buyers the key dimensions needed before ordering. It runs through the equaliser bushing and clamps at the hanger, which makes thread condition and shaft wear critical on every rebuild. Part number: SP1229. See the 102/102W/102CC I&M manual for suspension service guidance

Compatibility and Fitment

Match the shaft diameter, overall length and thread before ordering, then compare the rocker bore and bush size while the suspension is apart. Reyco 102 equaliser pin suits the centre equaliser layout used in the 102 family, and it should be replaced if the shaft shows grooving, thread damage or movement through the pivot. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 08686-01, 0868601, BP1213, FL81.2058, FL812058, IT12131, WT1213, 09.1213.1, 0912131

Compliance and Safety

Inspect the hanger faces, rocker bore and bushing surfaces before fitting the new pin, because wear in the surrounding parts will shorten service life. Tighten the retaining hardware to the suspension maker’s procedure, and then recheck the joint after initial running so the assembly stays clamped correctly.

Trailer Applications

In heavy vehicle suspension service, Reyco 102 equaliser pin restores the centre rocker pivot when workshops rebuild worn equaliser assemblies. It also suits jobs where the old shaft has picked up rust, lost clamp on the threaded end or worn through the bushing contact area.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers also carries the matching bush, nut and rocker parts that commonly get checked during the same rebuild. Browse Suspension parts at ICS Trailers for matching suspension service items
