Description

Overview

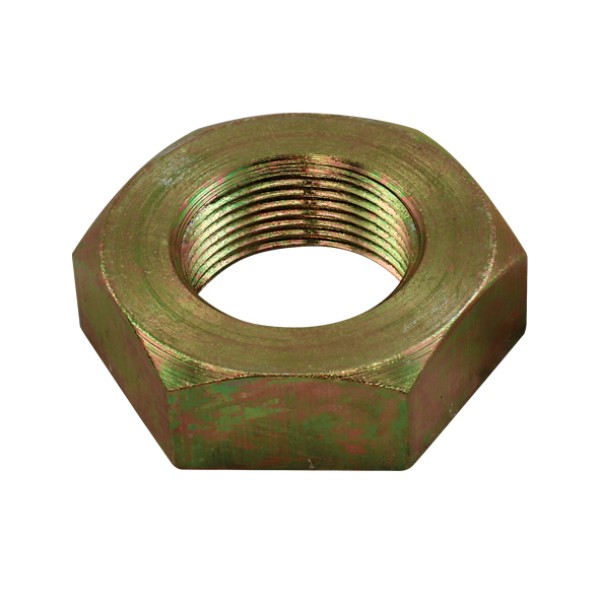

Equaliser pin nut secures the threaded end of the suspension pin assembly and holds clamp load through the rocker connection. Because the nut keeps the joint tight under load, it also helps the pin, washer and surrounding hardware stay seated correctly through trailer suspension movement. Its 1 7/16″ UNF thread suits heavy mechanical suspension hardware where thread match and nut size need to line up before the job goes back together.

Features

• 1 7/16″ UNF thread for equaliser pin hardware
• Suits Reyco 101, 101A and 102 rocker pin applications
• 60mm and 69mm key outer dimensions for matching
• 21mm nut height for suspension assembly fit-up

Specifications and Materials

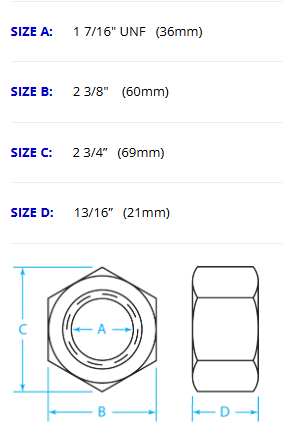

This equaliser pin nut carries a 1 7/16″ UNF thread and suits Reyco 101, 101A and 102 rocker pin applications. Key dimensions for matching are 36mm thread size, 60mm across one major outer face, 69mm across the widest outer span and 21mm nut height. Part number: SP1230.

UNF thread form details are outlined in this Unified thread reference for general thread guidance.

Compatibility and Fitment

Check the pin thread, nut height and outer nut size against the hardware already fitted before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 08687-01, 0868701, 7193, BP1214, FL96.2801, FL962801, IT1213A, WT1214, FQ1214, 09.1214.0, 0912140

Compliance and Safety

Inspect the nut for rounded flats, thread damage, cracking and signs of stretch before reuse. Replace any nut that no longer runs freely onto a clean matching thread, because poor engagement can leave the joint loose under suspension load. After assembly, confirm full thread engagement and make sure the nut seats squarely against the mating washer or hardware face.

Trailer Applications

Workshops fit this equaliser pin nut during Reyco mechanical suspension pin service, rocker repairs and suspension rebuild work. It suits jobs where the equaliser pin, bush or surrounding hardware is already apart and the fastening hardware needs replacement at the same time. Fleets and repairers also use this style of nut when restoring worn suspension joints back to a secure clamped fit.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
