Description

Overview

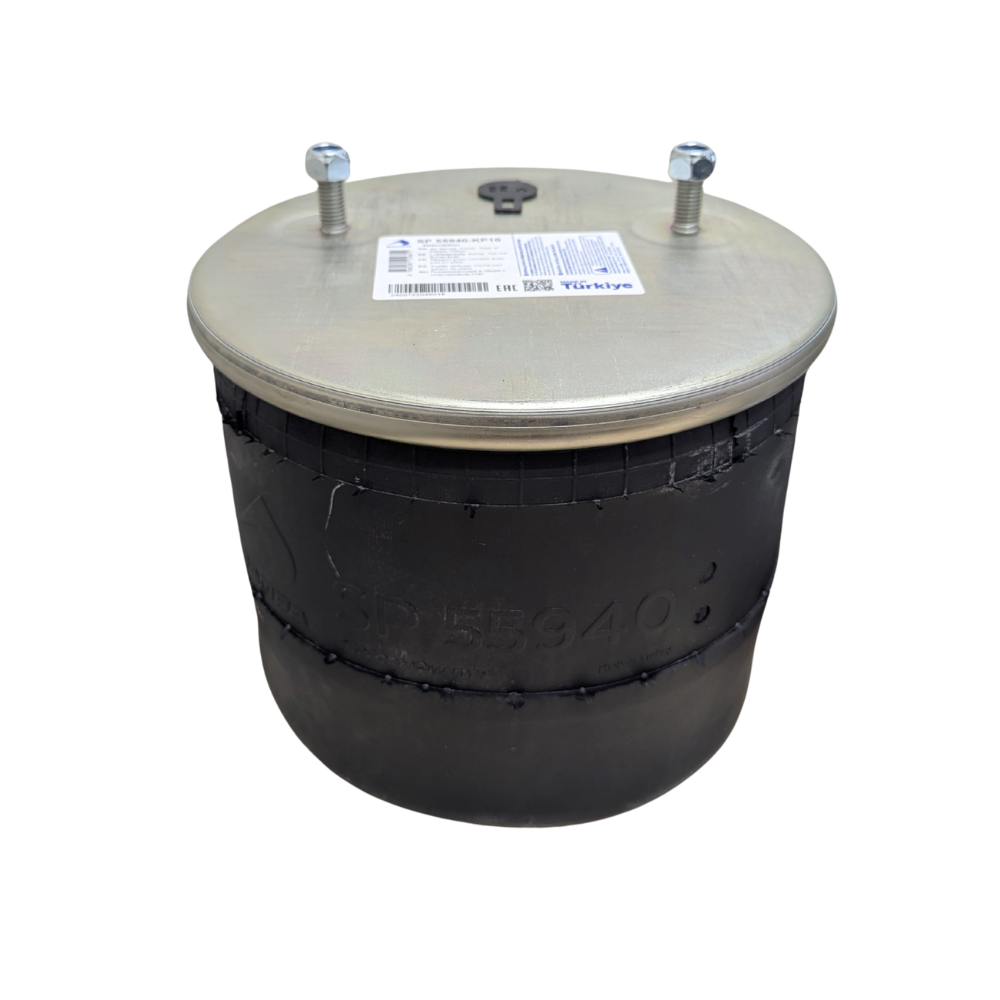

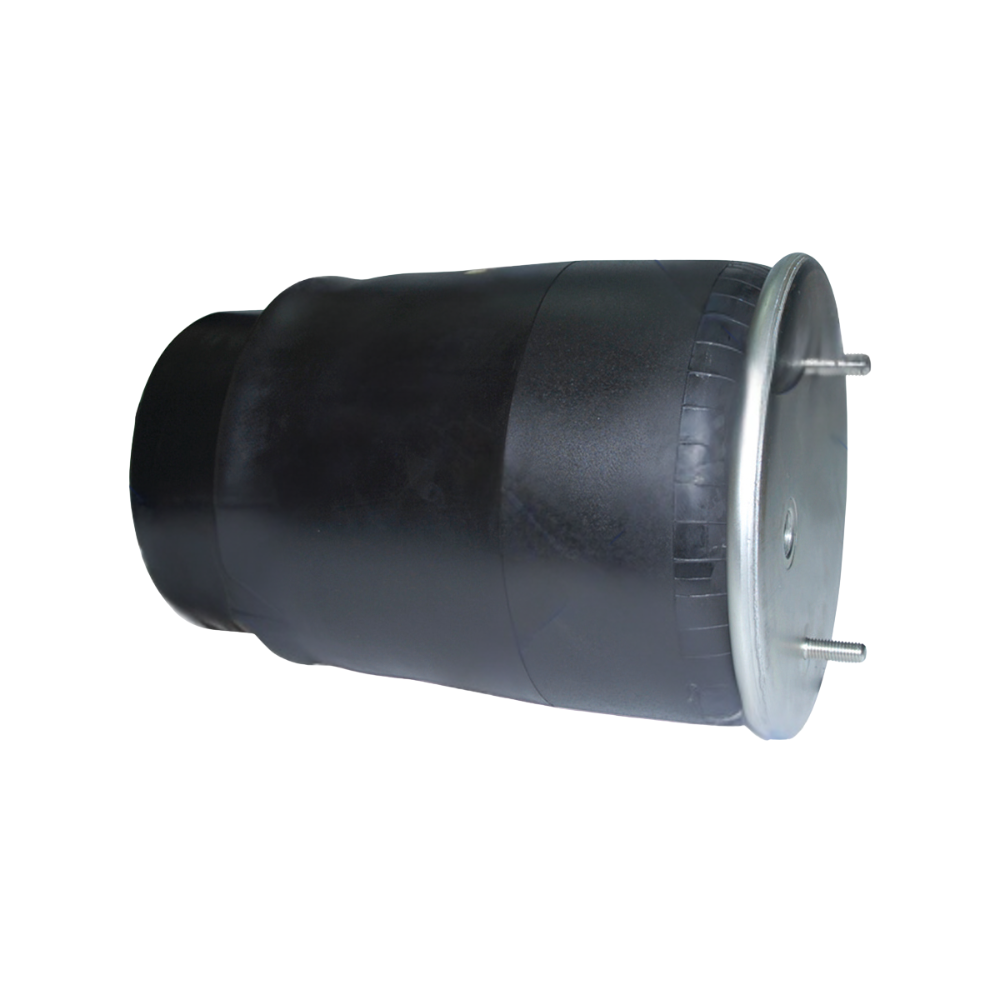

BPW Type 30K air spring supports trailer air suspension ride height and load control where a plastic piston assembly suits the setup. This air spring assembly suits BPW Type 30K applications and includes a mounting kit for fitting. Use it when replacing a worn, leaking or damaged suspension air spring on compatible trailer axle equipment.

Features

• Suits BPW Type 30K air suspension applications
• Plastic piston assembly for compatible trailer suspension setups
• Includes mounting kit for installation
• Matches common BPW, ContiTech, Firestone, Goodyear, Phoenix and Meritor replacement references

Specifications and Materials

BPW Type 30K air spring has a plastic piston configuration with mounting kit included. Match the air spring body diameter, maximum diameter, overall length and thread sizes before ordering. Part number: SP55940-KP10.

The equivalent technical profile lists 260mm body diameter, 315mm maximum diameter, 340mm length, M12 x 1.75 and M22 x 1.5 thread sizing.

manufacturer technical product page

Compatibility and Fitment

Confirm the trailer suspension, air spring type, piston style, thread sizes and existing part number before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. RML7051CP, 0542943210, 0542941290, 0542942191, 0542942400, 0542941231, 0542941141, 0542941531, 0542943370, 0542943350, 0542943650, 940MBP30, W01M588585, 1R11752, 1R11-752, 1DK21K2, MLF7177

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the mating hardware, top plate, air line connection and suspension mounting points when replacing an air spring. If the old bag has failed from rubbing, misalignment or over-extension, fix the cause before fitting the replacement.

Trailer Applications

Workshops fit this BPW Type 30K air spring on compatible trailer air suspension systems where the existing air spring uses the same piston configuration and replacement references. Fleets should compare the old part number and physical layout before ordering multiples.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
