10/285 Brake Drum 10 Stud 16.5×7

$87.00

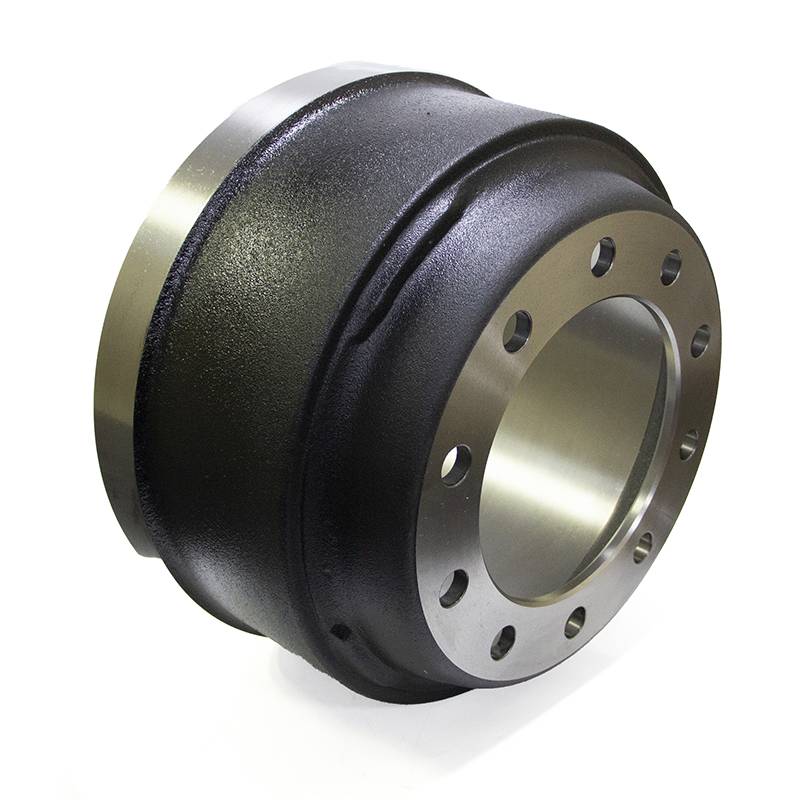

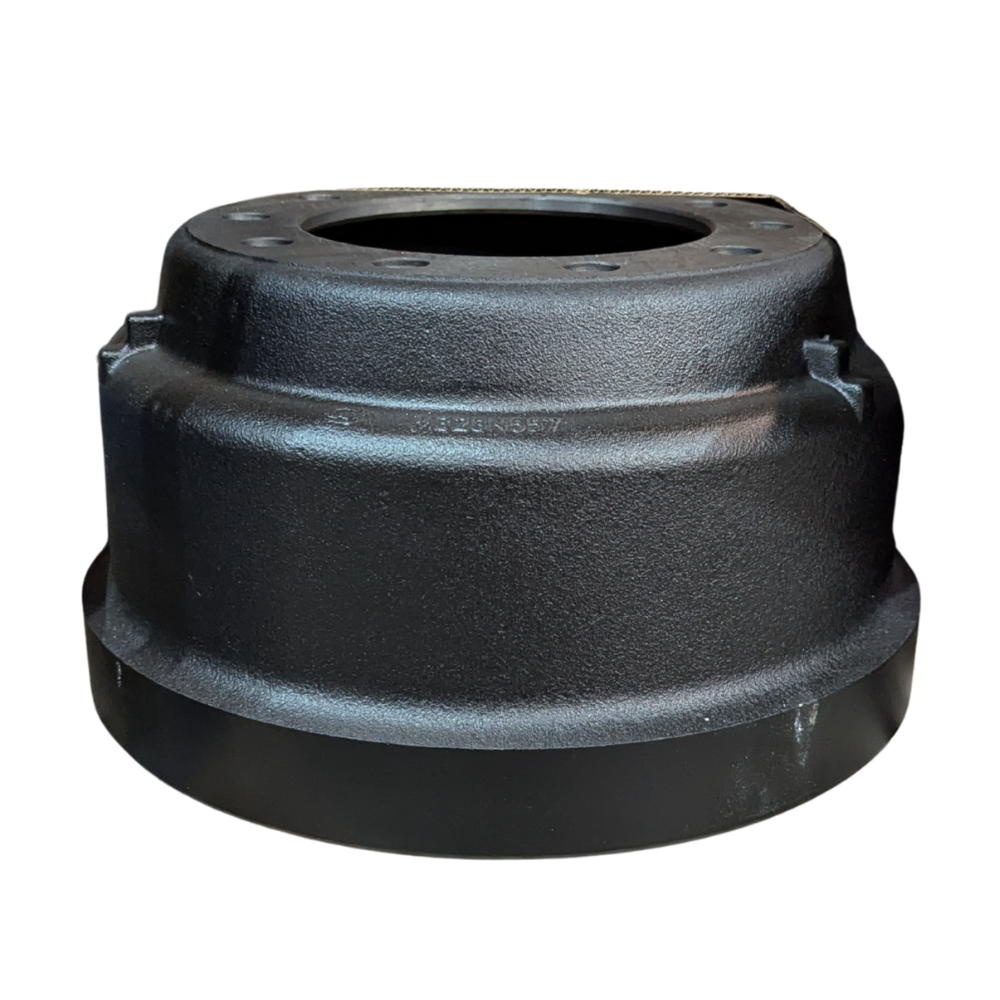

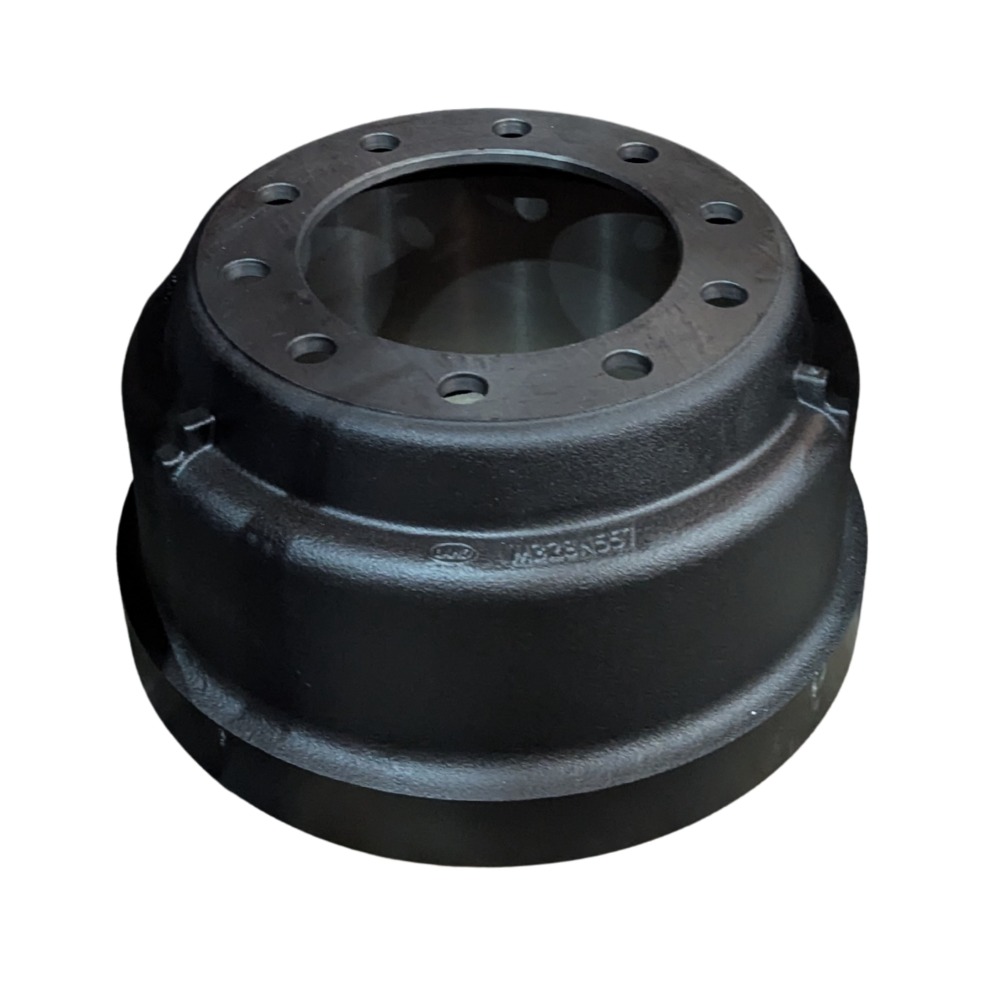

10/285 brake drum for trailer, truck and drive axle wheel ends, with 16.5 x 7 inch brake size, 10 holes, 285mm PCD, 223mm pilot and 23.88mm mount holes.

Part number AP0875C.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP0875C Category: Tags: , , , , , , , , , , , , , , , , , , , , , , ,
This field is for validation purposes and should be left unchanged.

Description

Overview

10/285 brake drum replaces the wheel-end drum on trailer, truck and drive axle brake applications using a 16.5 x 7 inch brake setup. It suits a 10 stud mounting pattern with 285mm PCD, so check the hub, pilot and brake size before ordering.

Features

  • Suits 16.5 x 7 inch brake applications.
  • 10 stud mounting pattern with 285mm PCD.
  • 223mm drum pilot supports GP drive and trailer wheel-end setups.
  • 23.88mm mount holes suit matching wheel-end hardware.

Specifications and Materials

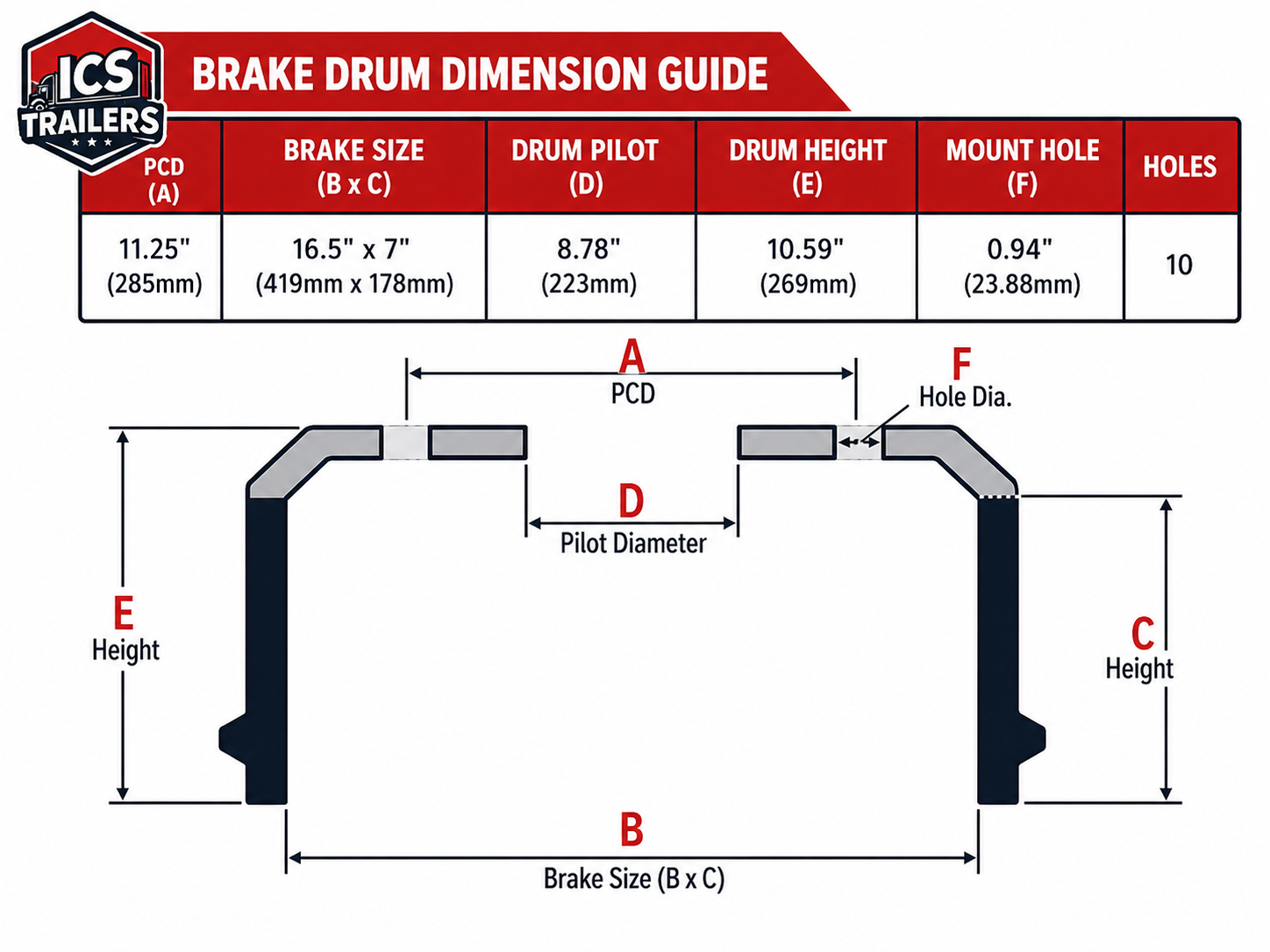

This 10/285 brake drum has a 16.5 x 7 inch brake size, 223mm drum pilot, 10 mounting holes, 23.88mm mount hole size and 285mm PCD. It suits trailer, truck and drive axle applications where these dimensions match the existing drum and hub setup.

Part number: AP0875C.

Use the TRP brake drum range guide when checking equivalent brake drum dimensions and cross-reference numbers

Compatibility and Fitment

Match the brake size, PCD, pilot diameter, mount hole size and hub style before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DB015TRP, M906619, AP0875, 3600AX, CM107150, KH3602-0303, KH36020303, DR190, BD751, CM10009830, ITBD120, WT6620.

Compliance and Safety

Inspect the hub face, mounting holes, wheel studs and drum seating surfaces before fitting. Also check the brake shoes, rollers, cam area and lining wear while the drum is off, because uneven wear can point to a deeper brake setup issue.

Trailer Applications

Workshops use a 10/285 brake drum on heavy trailer and drive axle wheel ends where the 16.5 x 7 inch brake size and 223mm pilot match the existing setup. It suits service replacement where the old drum has worn, cracked, overheated or moved outside service limits.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

DB015TRP M906619 AP0875
3600AX CM107150 KH3602-0303
KH36020303 DR190 BD751
CM10009830 ITBD120 WT6620



Why Choose ICS Trailers

ICS Trailers supplies trailer brake drums and wheel-end parts for heavy trailer servicing, fleet maintenance and workshop repair work.

See more trailer brake parts in Foundation Brakes
