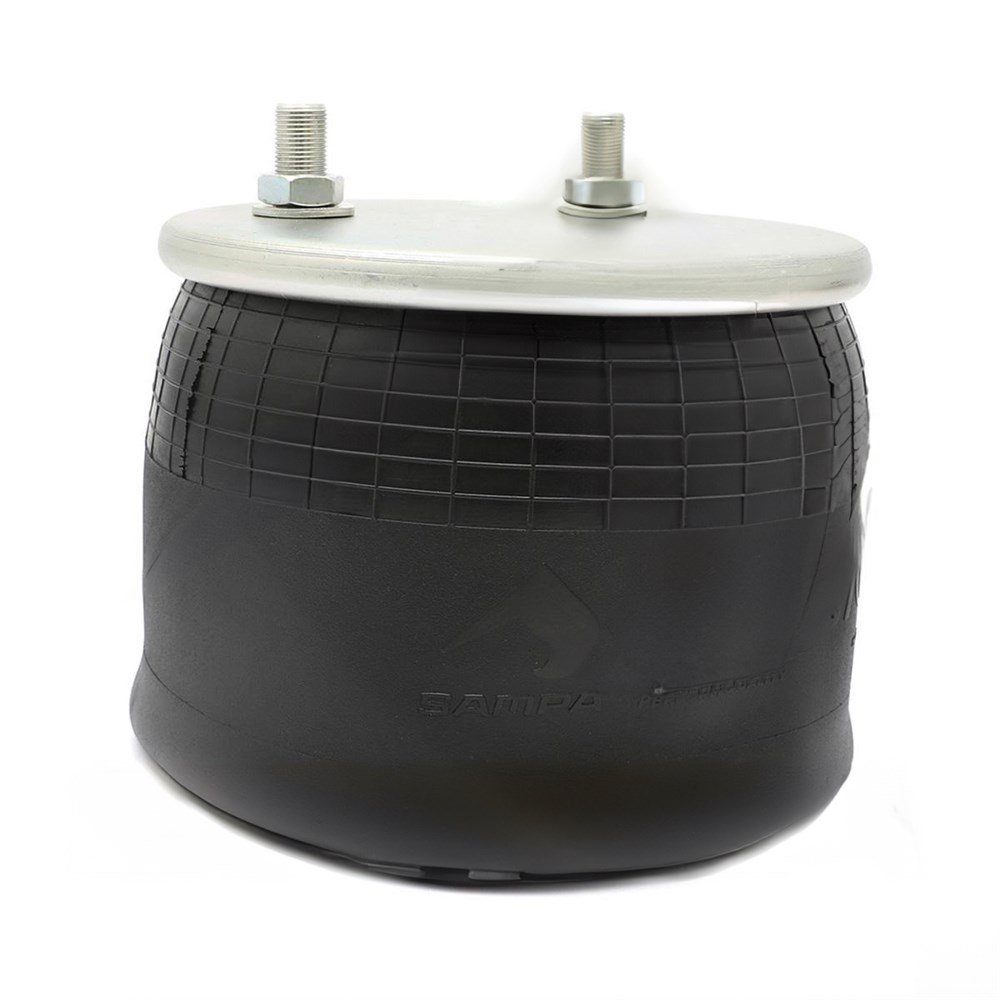

Air Spring Assembly for Hendrickson MaxiTraax is a complete air spring and piston assembly used to restore correct ride height and suspension compliance when the existing bellows is leaking, cracked, or fatigued. Replacing a leaking air spring helps keep the trailer level through bumps and cornering and can reduce suspension harshness that contributes to uneven tyre wear.

Features

• Complete air spring assembly for trailer air suspension service
• Plastic piston type for common Hendrickson-style setups
• Supports stable ride height and predictable load control
• Helps prevent air loss caused by bellows cracks or fatigue

Specifications and Materials

This assembly operates up to a maximum of 7 bar (100 psi) and suits operating temperatures from -40°C to +70°C. It uses a plastic piston configuration for this suspension style.

Part number: SP0057M.

For component identification and family confirmation, refer to the Hendrickson INTRAAX parts list PDF and confirm your suspension model before ordering.

Compatibility and Fitment for Air Spring Assembly

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required.

C-21800, C21800, 1T17CA5, 1T17CA-5, 1R13-159, 1R13159, 8709, W01-358-8709, W013588709, W01-358-8751, W013588751, S-20900, S20900, S-21800, S21800

Compliance and Safety

Depressurise the air system safely and support the axle before removal. Inspect air lines, fittings, and mounting points while access is clear. After installation, leak-test the system and confirm the suspension returns to normal operating height.

Trailer Applications for Air Spring Assembly

Air Spring Assembly for Hendrickson MaxiTraax typically suits trailers running Hendrickson INTRAAX or MaxiTraax style air suspension where a complete air spring assembly is specified. It is common on highway and vocational trailers that need consistent ride height under varying loads. Selecting the correct assembly helps keep handling consistent and braking more predictable.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

If you are unsure, verify the exact suspension model and mounting style before ordering because similar air springs can differ in travel, height, and mounting details.
