Description

Overview

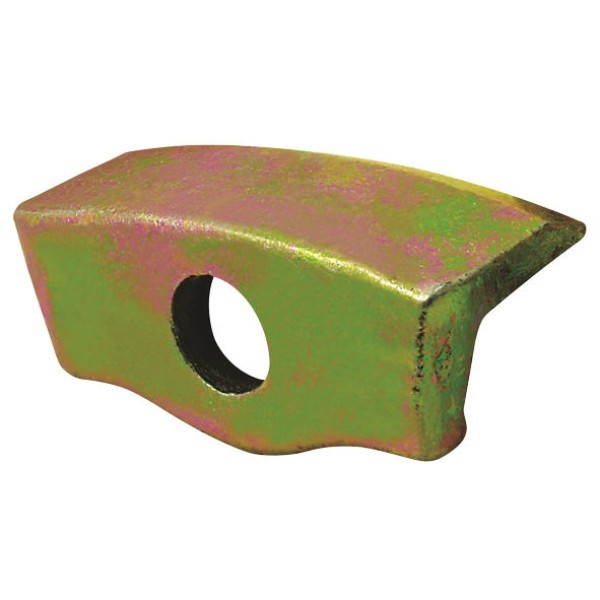

The Malco trailer rim clip secures compatible spoke-wheel rims on heavy trailer wheel assemblies where this clamp profile is used. Its identifying dimensions are 35mm A, 103mm B, 46mm C and 20mm D, so dimensional comparison matters before fitting.

Features

• 35mm reach for the specified Malco trailer clamp profile
• 103mm width and 46mm length for dimensional identification
• 20mm hole for matching the wheel stud arrangement

Specifications and Materials

A dimension: 35mm. B dimension: 103mm. C dimension: 46mm. D dimension: 20mm.

Part number: AP6059.

For general wheel-component servicing guidance, see the OSHA rim wheel servicing standard

Compatibility and Fitment

Compare all four dimensions with the removed clamp before fitting. Similar spoke-wheel clips can have close overall shapes while using a different reach or hole size, so the 35mm reach and 20mm hole are important checks.

Compliance and Safety

Inspect the rim clip, wheel stud, nut and rim mounting faces before assembly. Replace cracked, bent or heavily corroded components, then tighten the wheel hardware to the applicable wheel-end procedure.

Trailer Applications

This clamp suits compatible Malco-style trailer wheel assemblies where the existing rim clip matches the 35mm reach, 103mm width, 46mm length and 20mm hole.

Why Choose ICS Trailers

Malco wheel clamps can look similar while differing in reach, width and hole size, so matching the removed part by measurement is important. ICS Trailers can help compare the old clip, wheel arrangement and dimensions before you order.

• Check the 35mm reach and 20mm hole before fitting this version.
• Send clear photos and all four measurements if the old clamp is worn or unmarked.
