Rim Clip – General Purpose Trailer

Allan Davis on 22/09/2026

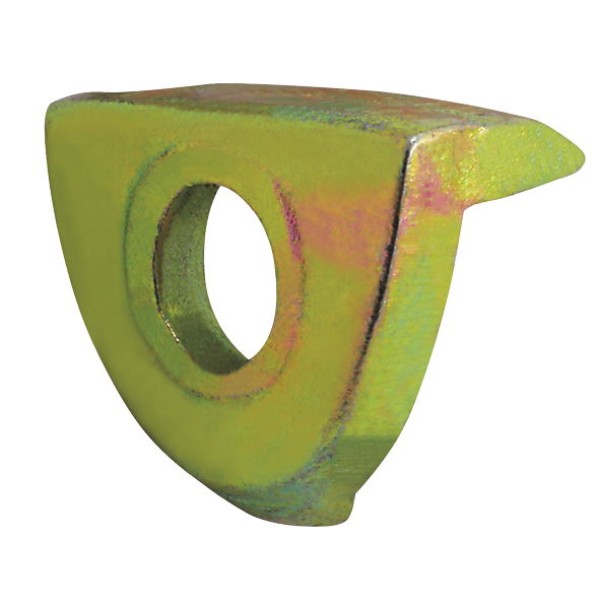

general purpose trailer rim clip

Rim Clip – General Purpose Trailer

$9.00

General purpose trailer rim clip with 28mm A, 72mm B, 63mm C and 20mm D dimensions for compatible spoke-wheel assemblies, giving workshops the key profile measurements needed to compare the removed clamp before fitting.

Part number AP6051.

Quick Quote

SKU: AP6051 Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

The general purpose trailer rim clip secures compatible demountable spoke-wheel rims to the wheel spider. Its identifying profile uses 28mm A, 72mm B, 63mm C and 20mm D dimensions, which makes dimensional comparison important when replacing an existing clamp.

Features

  • General-purpose clamp profile for compatible trailer spoke wheels
  • 20mm D dimension for matching the stud opening
  • 72mm B and 63mm C dimensions for body-profile comparison

Specifications and Materials

A dimension: 28mm. B dimension: 72mm. C dimension: 63mm. D dimension: 20mm.

Part number: AP6051.

Review the OSHA rim wheel servicing standard for wheel-component inspection and compatibility guidance

Compatibility and Fitment

Compare all four dimensions with the removed clamp before fitting, because long-reach and application-specific rim clips can look similar while using a different profile.

The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.

FPTF60, FQ6051, 0337203020, 54493R2, FL52.1301, IT6051, T04-3321, TF60, WT6051, 161-06003

Related Parts

Use Part number Part type
Used with AP6001 3/4-inch wheel stud
Used with AP6002 3/4-inch wheel nut
Long-reach alternative AP6051L Long-reach rim clip



Compliance and Safety

Inspect the rim clip, wheel stud, nut and rim mounting faces before assembly. Replace cracked, bent or damaged wheel components rather than reworking them.

Trailer Applications

The general purpose trailer rim clip suits compatible heavy trailer spoke-wheel assemblies where the existing clamp matches the dimensional profile above.

Cross-reference and Suitability

This part cross-references to the following verified equivalent or replacement part numbers:

FPTF60 FQ6051 0337203020
54493R2 FL52.1301 IT6051
T04-3321 TF60 WT6051
161-06003



Why Choose ICS Trailers

Rim clips need to match the spoke-wheel profile rather than simply look close enough. ICS Trailers can compare the removed clamp, dimensional guide measurements and old markings before you order, especially when identifying standard versus long-reach versions.

  • Matching wheel studs and nuts can be checked during the same wheel-end repair.
  • Photos and measurements can help narrow down worn or unmarked clamps.

Browse more Rims, Wheels & Spacers
