Description

Overview

White LED front outline marker lamp supports front marker lighting on 12V and 24V trailers, truck bodies and service vehicles. The compact 58mm body keeps the lamp neat on flat panels, while the white lens suits front-end outline placement.

Features

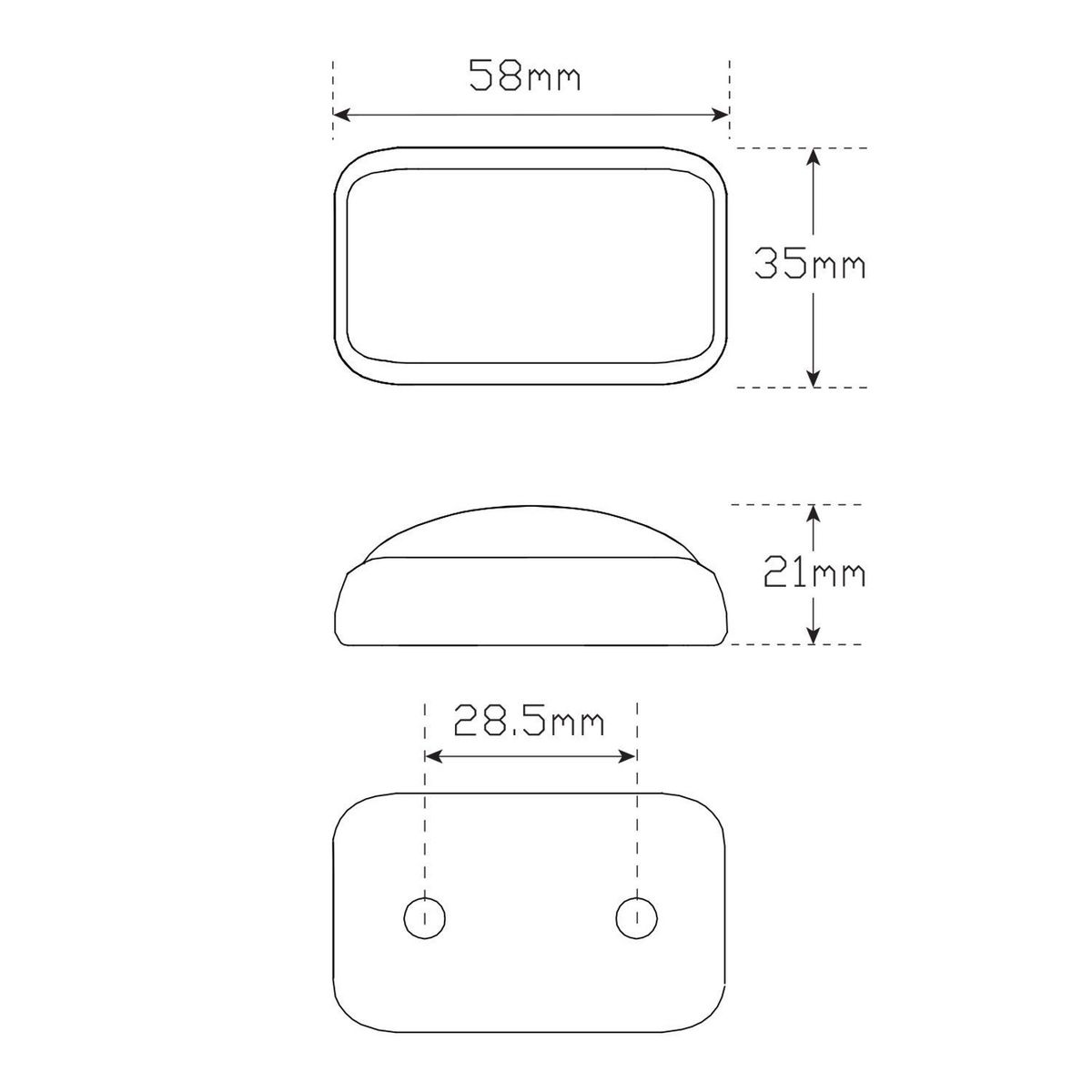

• 58mm x 35mm x 21mm body suits compact surface mounting.

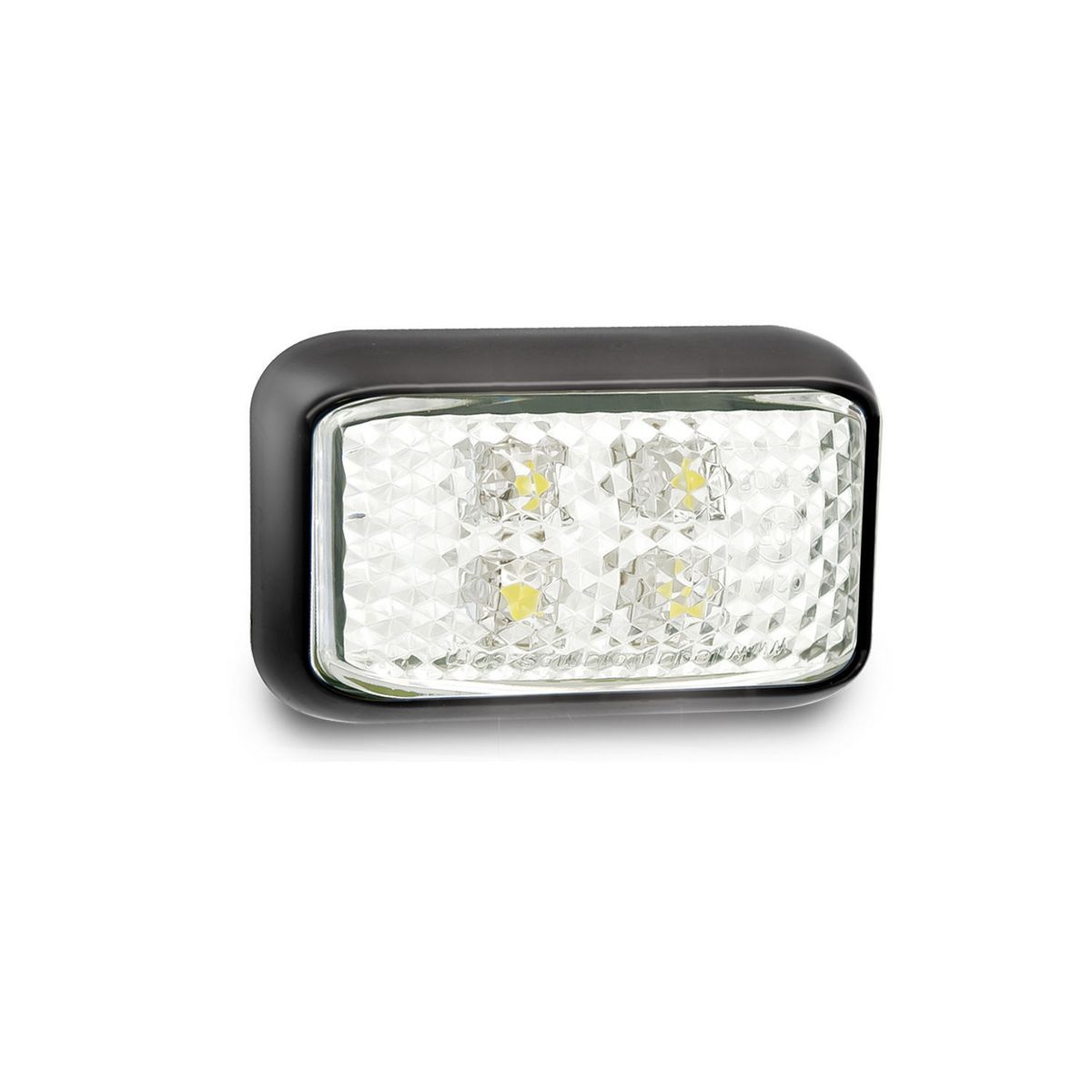

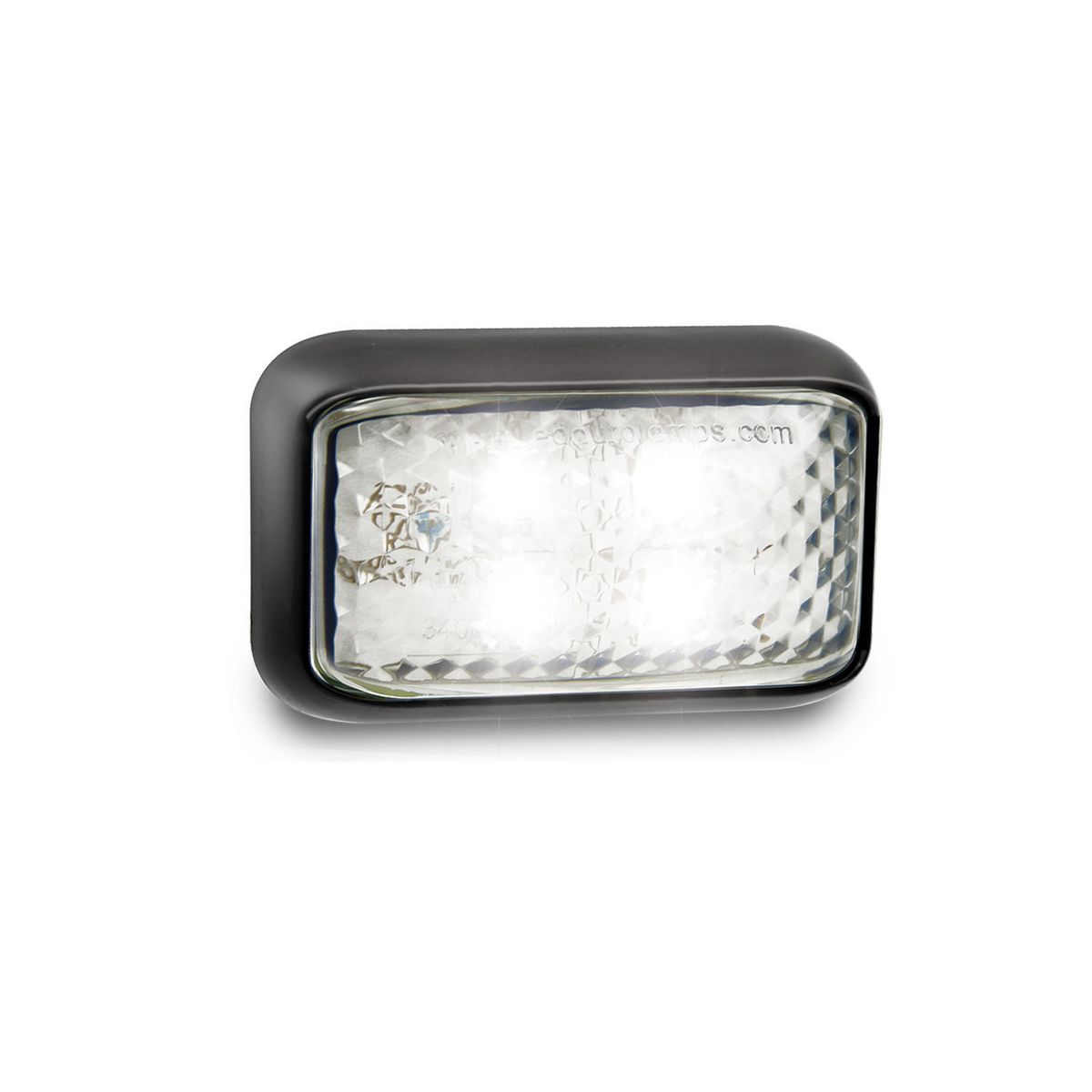

• Four white LEDs provide front outline marker lighting.
• 40cm bare wire cable suits direct trailer wiring.
• Clip-in replaceable lens helps with future service work.

Specifications and Materials

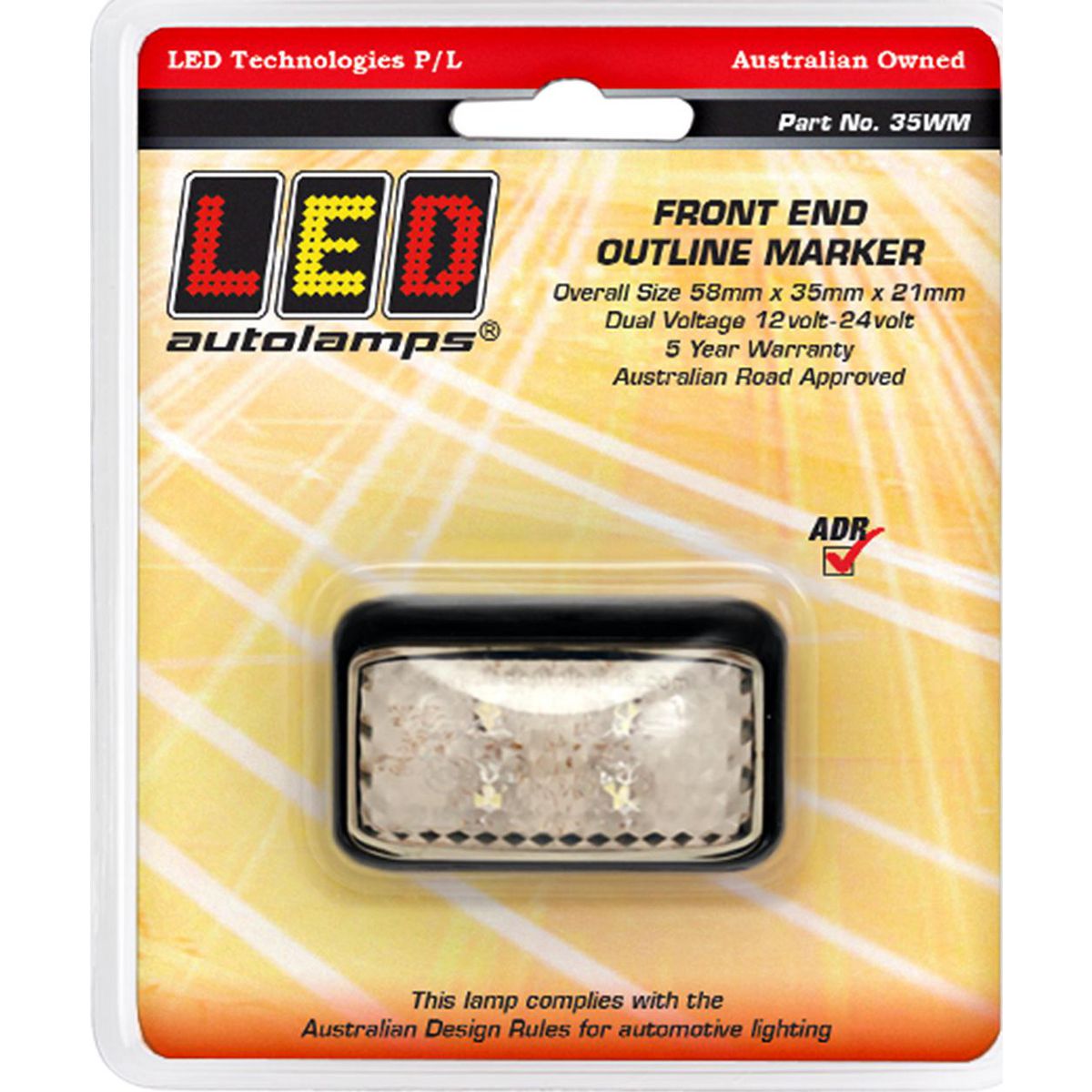

This white LED front outline marker lamp uses a hardened acrylic lens and ABS base with a low profile 35 Series body. Part number: 35WM. The lamp runs on 12V to 24V systems and draws 0.05A at 13.8V and 0.04A at 28V.

The lamp carries ADR Front End 49/00 approval with CRN 34008 and CTA Front End 49/00 approval with CTA-060076. It also carries an IP67 waterproof rating and a 5 year manufacturer warranty.

Use the manufacturer technical guide for additional 35 Series lamp detail.

Compatibility and Fitment

Match the front marker function, white lens colour, 12V to 24V voltage range and 58mm x 35mm footprint before ordering. Because this lamp mounts horizontally, confirm the panel has a flat surface and enough rear clearance for the wire path.

Mount the bracket to the flat surface with screws, run the wires through the back, then clip the lens into place once the lamp sits correctly.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the trailer lighting layout before fitting, because front marker colour and position matter on road-going equipment. After fitting, test the white LED front outline marker lamp from the front of the vehicle and inspect the cable path for rubbing or water entry points.

Trailer Applications

Workshops fit this white LED front outline marker lamp to trailer fronts, truck bodies, caravans, service bodies and fleet equipment where a compact front outline marker needs to sit close to the panel. It suits replacement work when the existing mounting footprint and wiring route match the 35 Series format.
