Submersible Rear Combination Lamp Twin Pack 12V

Allan Davis on 06/05/2026

Submersible rear combination lamps with red amber and licence plate functions
Submersible Rear Combination Lamp Twin Pack 12V - Image 2
Submersible Rear Combination Lamp Twin Pack 12V - Image 3
Submersible Rear Combination Lamp Twin Pack 12V - Image 4

Submersible Rear Combination Lamp Twin Pack 12V

$159.00

Submersible rear combination lamps for 12V trailer rear lighting, with stop, tail, indicator, licence plate and reflector functions, IP67 sealing, 40cm cable and 215mm × 105mm surface-mount housings for boat trailer and general trailer repairs.

Part number 216ARLP2.



Quick Quote

SKU: 216ARLP2 Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

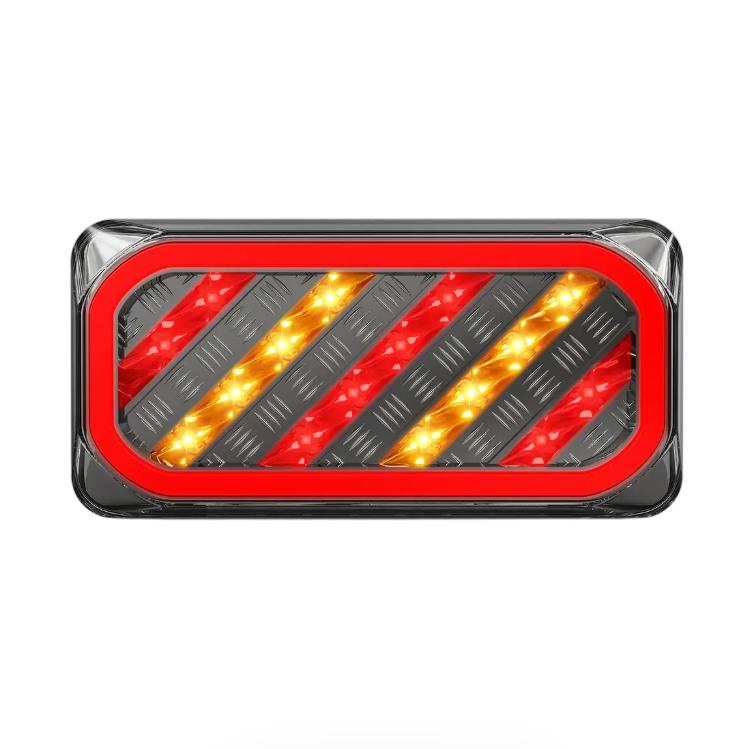

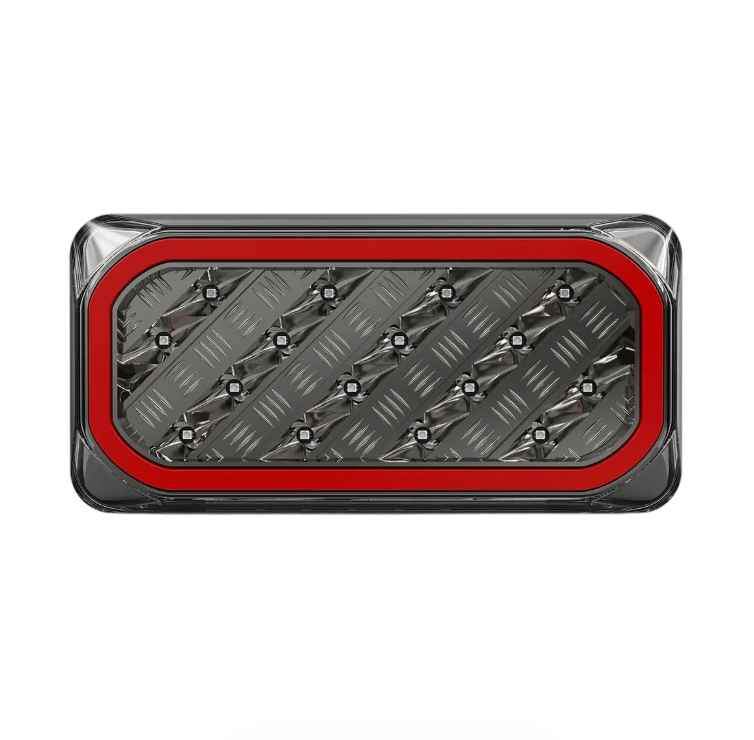

Submersible rear combination lamps cover stop, tail, indicator, licence plate and reflector functions in one 12V twin pack for boat trailers and general trailer builds. The diffused tail function gives a clean rear light pattern, while the inbuilt licence plate lamp keeps the rear lighting setup compact.

Features

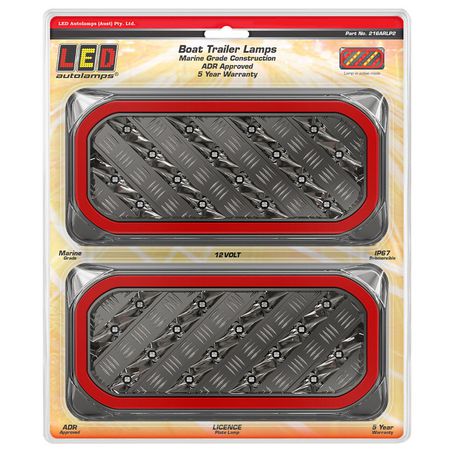

  • Twin pack with left-hand and right-hand rear lamps.
  • Stop, tail, indicator, licence plate and reflector functions.
  • IP67-rated fully submersible construction for boat trailer service.
  • Surface mounts horizontally with stainless steel fittings.

Specifications and Materials

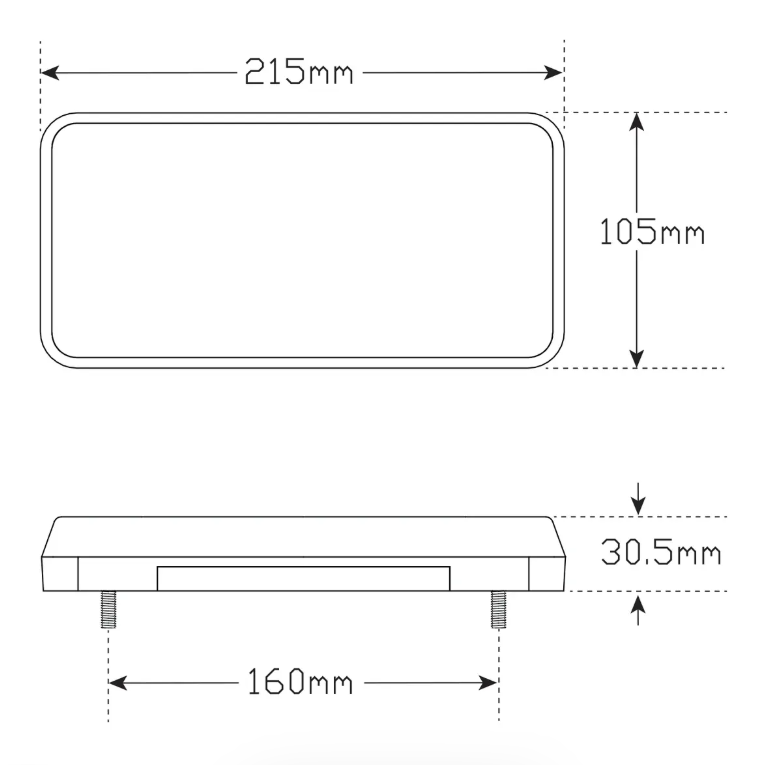

Each lamp measures 215mm × 105mm × 30.5mm and runs on 12V systems only. The lamp uses 36 tail LEDs, 8 stop LEDs, 8 indicator LEDs and 6 licence plate LEDs. It carries a PMMA lens, ABS housing, stainless steel fittings and a 400mm cable.

Part number: 216ARLP2.

Use the manufacturer technical guide for technical dimensions, current draw and fitting layout

Compatibility and Fitment

Match these submersible rear combination lamps to 12V trailer wiring, rear lamp position, mounting space and cable length before ordering. For installation, surface mount each lamp to a flat rear panel, run the cable through a 12mm hole and confirm the left and right indicator wiring before final fit-off.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Related version 216ARLP2B Bulk kit
Left side single 216ARB Single bulk lamp
Right side single 216ARLB Single bulk lamp with licence plate lamp
Related version 216ARLP2-10M 10m cable twin blister
Related version 216ARLP2-10MB 10m cable bulk kit
Left side single 216AR-10B 10m cable single bulk lamp
Right side single 216ARL-10B 10m cable single bulk lamp with licence plate lamp



Compliance and Safety

Inspect the rear lighting circuit before fitting, because poor earths and damaged trailer wiring can make a new lamp look faulty. After installation, test stop, tail, indicator and licence plate functions, then check the mounting position against ADR 13/00 requirements.

Trailer Applications

Submersible rear combination lamps suit boat trailers, marine trailers and trailer bodies that need rear lighting in a compact lamp pair. Workshops also use this style when a trailer needs a complete rear lamp refresh rather than replacing separate rear functions one at a time.

Why Choose ICS Trailers

ICS Trailers keeps lighting parts clear on voltage, function and fitment, so workshop buyers can match the lamp set to the trailer before pulling the old lights off. Browse more rear trailer lighting options in our LED Lights range
