Description

Overview

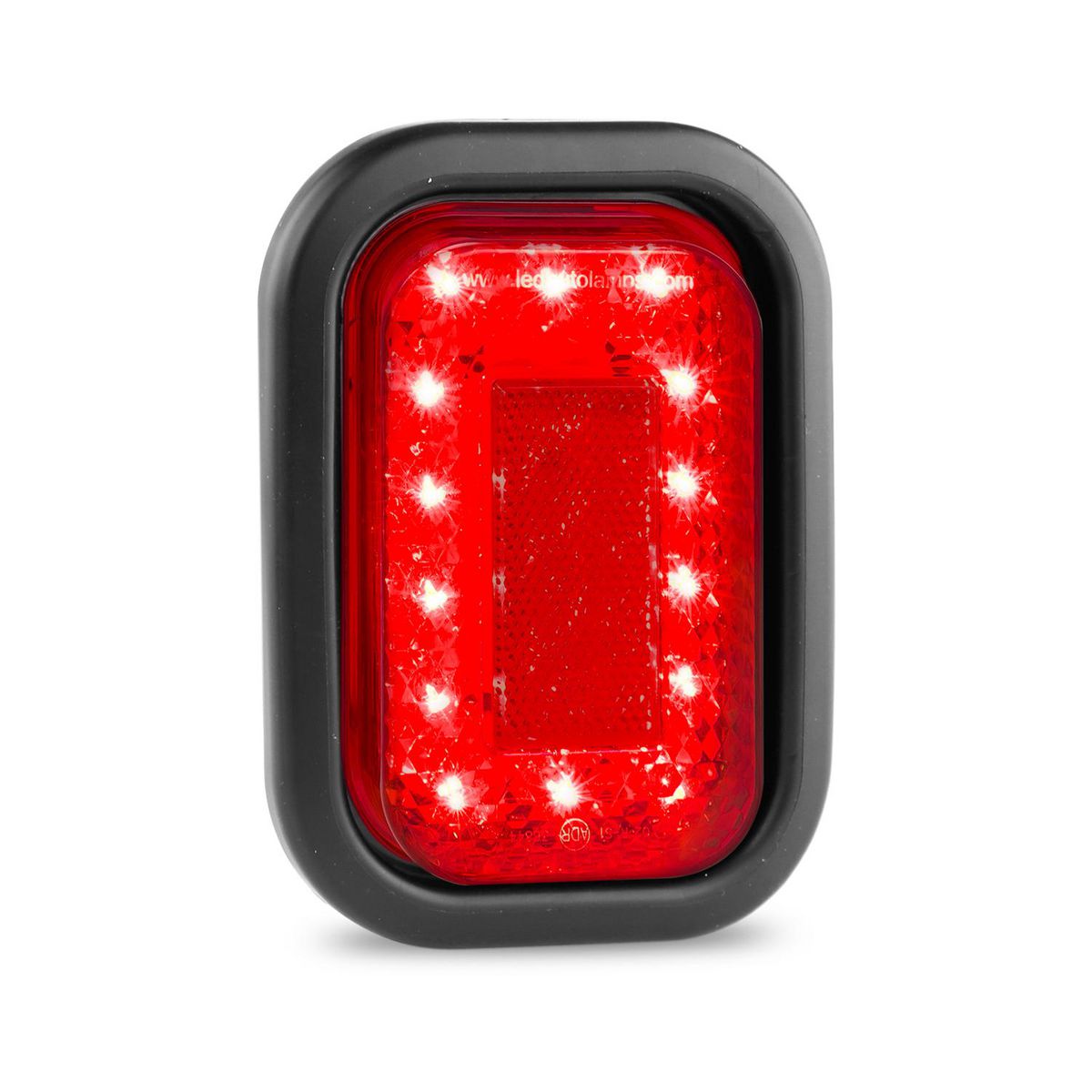

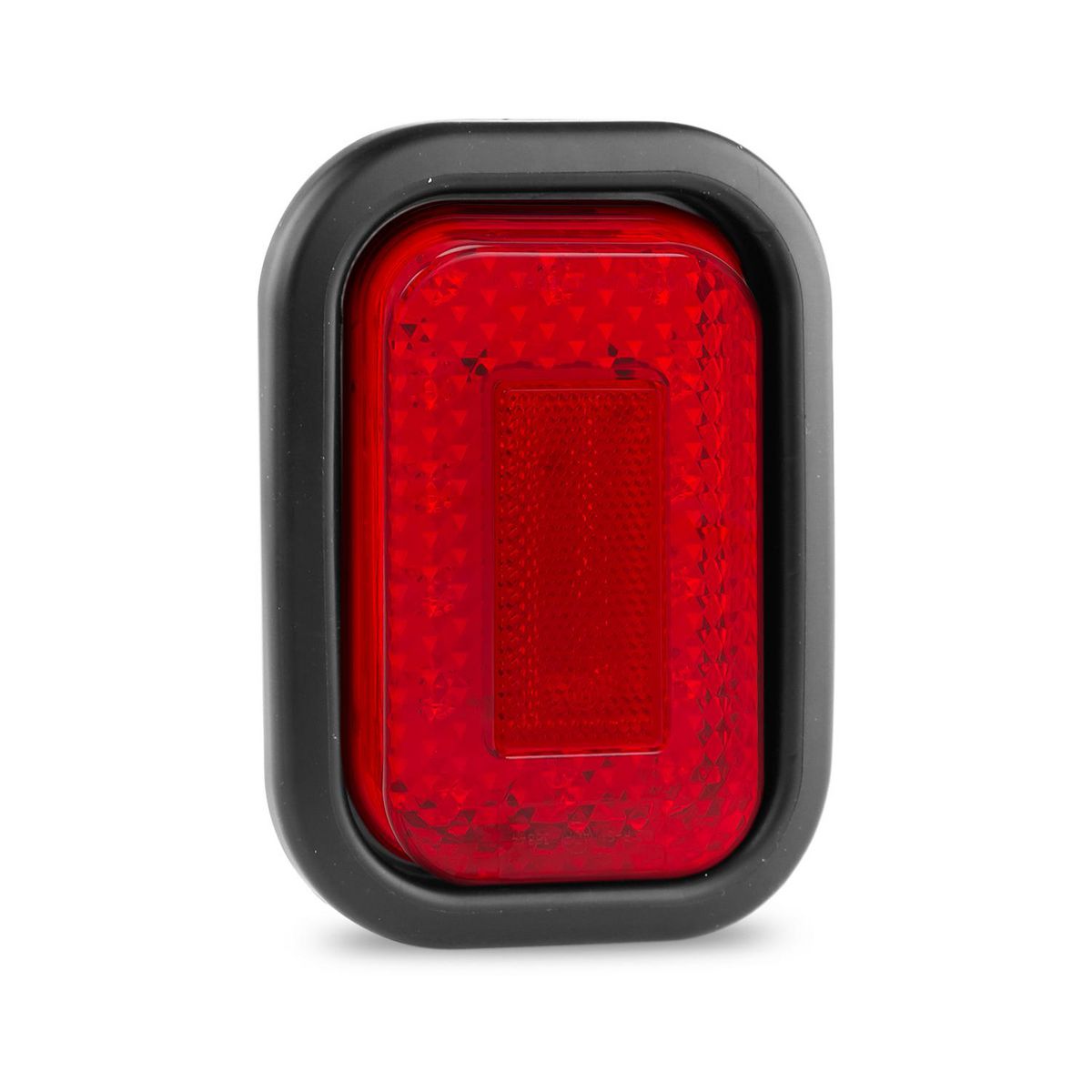

12/24V stop tail lamp with reflector supports rear trailer lighting with red stop, tail and reflex reflector functions in one recessed LED lamp.

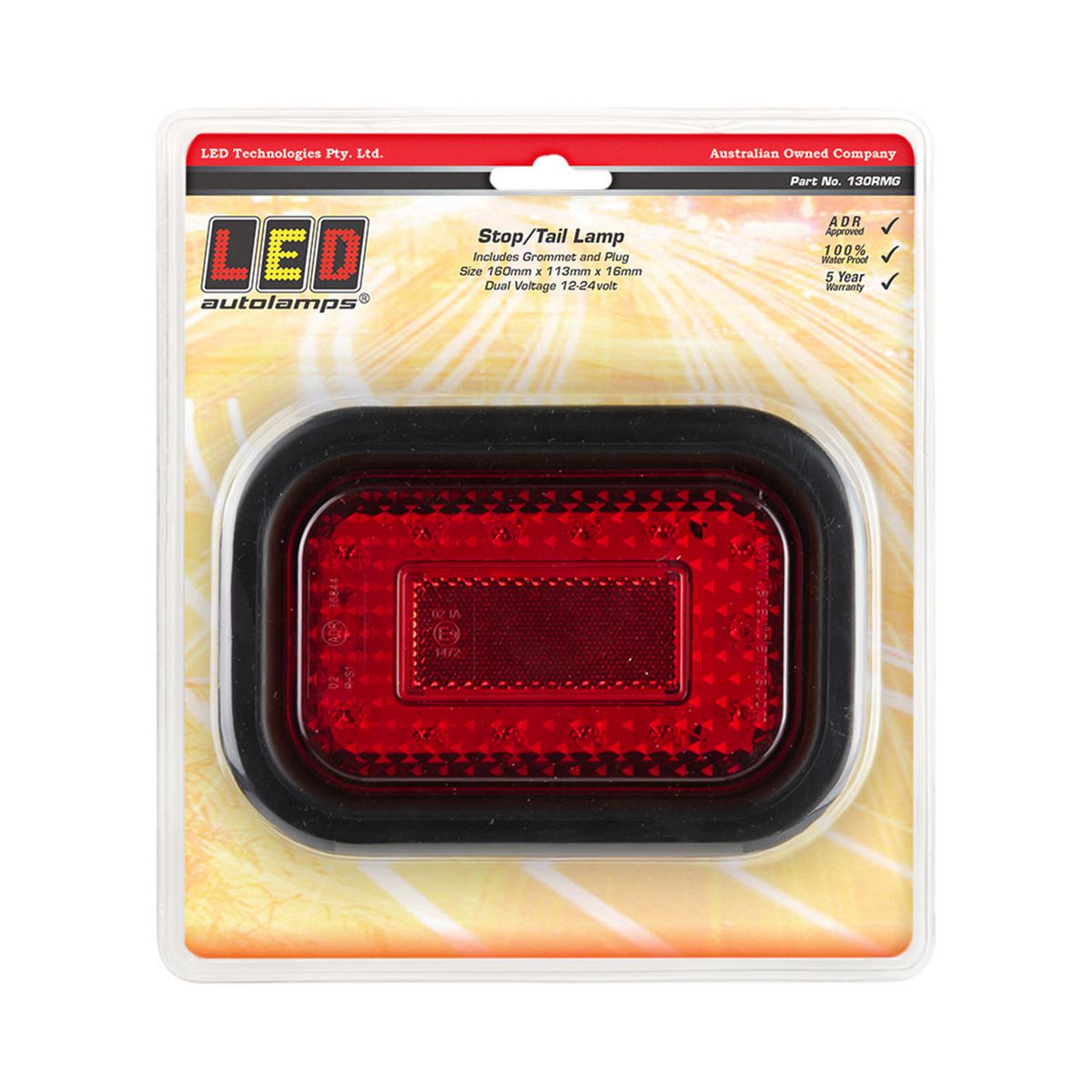

The 130 Series rectangular body suits panel-mount rear lighting where a low-profile grommet fit is cleaner than a raised bracket. Because this blister version includes the grommet and plug, it suits new fit-outs and replacement jobs where the mounting hardware needs to match the lamp.

Features

• Stop, tail and reflector functions in one rear lamp
• 14 LED layout for 12-24V trailer and truck systems
• Recessed mount with included grommet and plug
• IP67 rated body for exposed rear lighting positions

Specifications and Materials

This 12/24V stop tail lamp with reflector uses a hardened acrylic lens, 53102 plug connection and 14 LED layout. It draws 0.23A on stop and 0.03A on tail at 13.8V.

Part number: 130RMG.

Use the manufacturer technical guide

Compatibility and Fitment

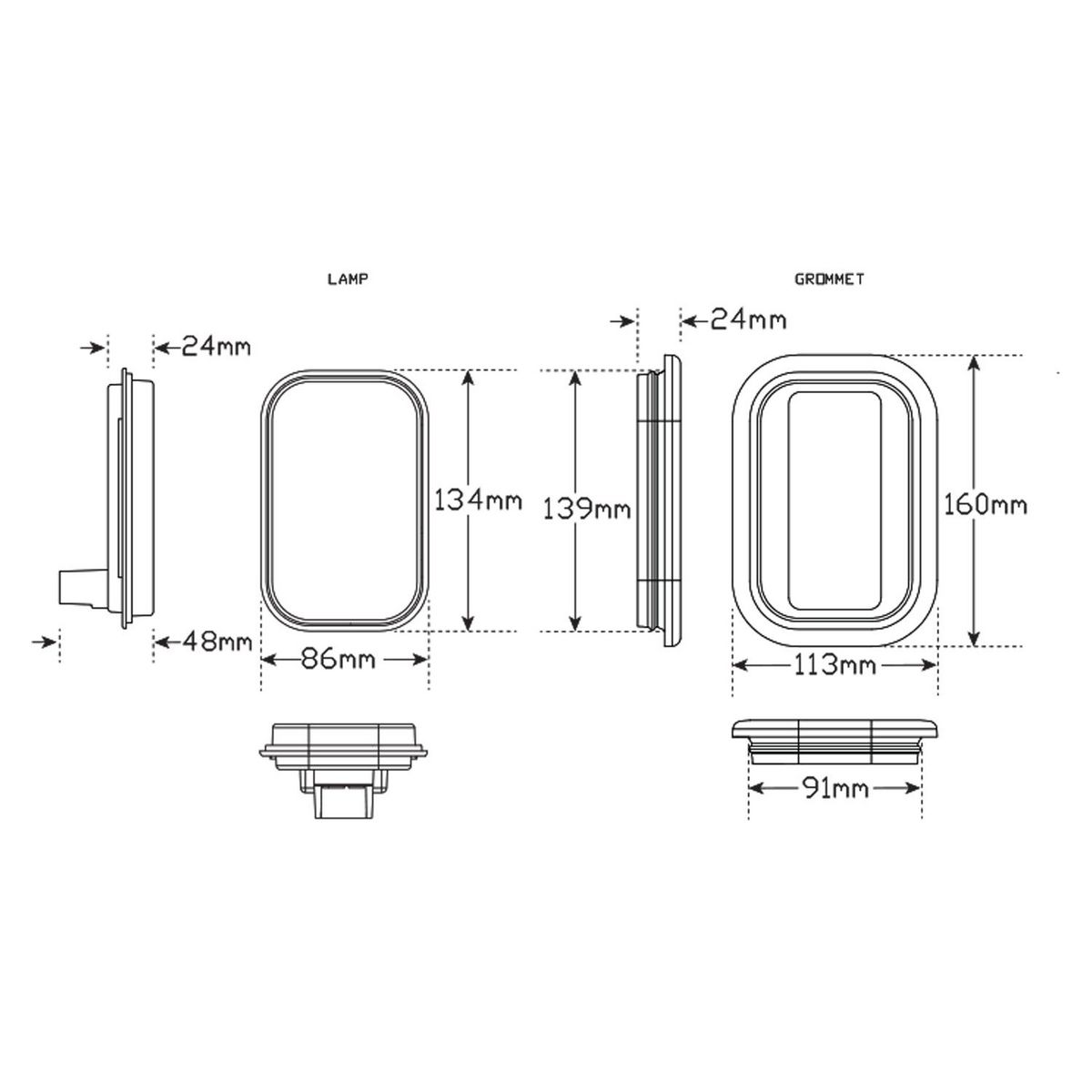

Check the rectangular lamp size, grommet cut-out, 12-24V supply and rear stop/tail position before ordering. For a new install, fit the grommet or flange into the cut-out, plug the wiring into the lamp, then push the lamp into the grommet or flange.

Related Parts

Check the related 130 Series parts below against the trailer or vehicle lighting setup before ordering.

Compliance and Safety

Fit the lamp to suit ADR 13/00 mounting requirements for the trailer or vehicle body. Also confirm red primary, black tail and white earth wiring before road use, because incorrect wiring can leave stop or tail function inactive.

Trailer Applications

Workshops fit this 12/24V stop tail lamp with reflector to trailers, truck bodies, vans, trays and service bodies that need a recessed rectangular rear lamp. The inbuilt reflector helps keep the rear lighting layout compact while retaining stop and tail visibility.

Why Choose ICS Trailers

ICS Trailers supplies LED trailer lighting for repairs, fleet servicing and body builds, with practical matching across stop tail lamps, marker lamps, plugs and mounting hardware.
