Red Amber Side Marker Light 12/24V 58x35mm
Red Amber Side Marker Light 12/24V 58x35mm
$27.00

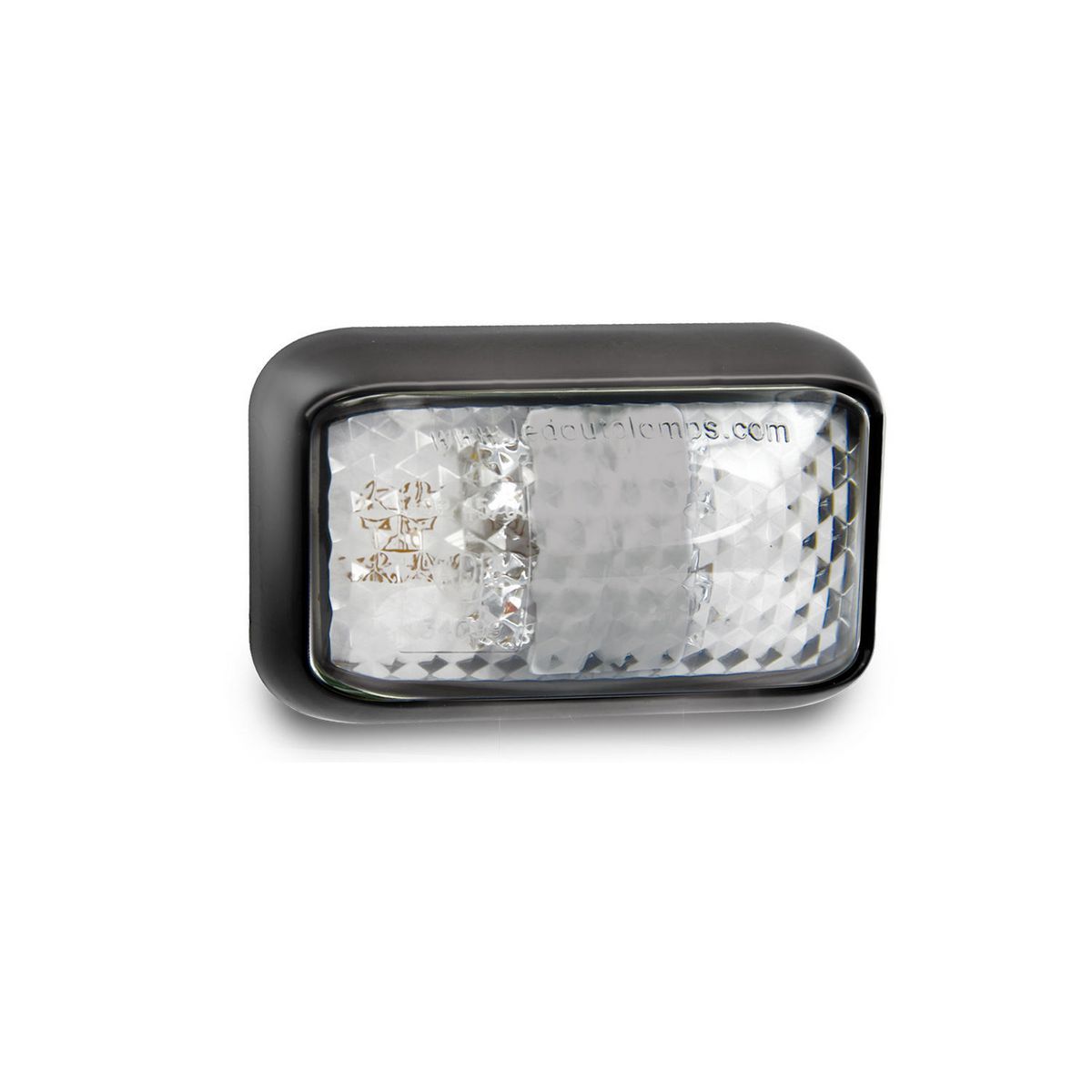

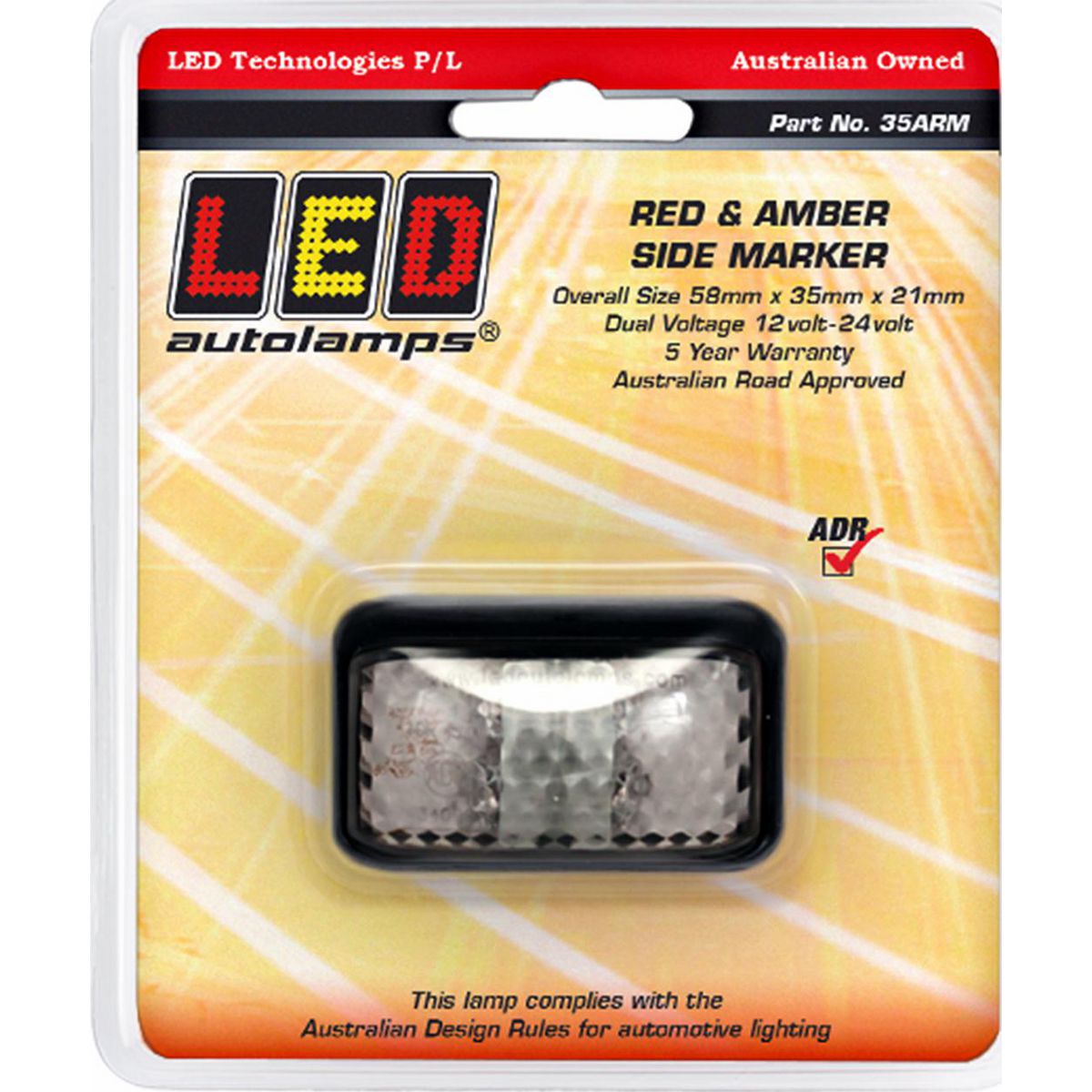

12/24V red amber side marker light for trailer, truck, caravan and service body side visibility, with 4 LEDs, clear lens, IP67 sealing, 58mm x 35mm x 21mm body and 40cm cable.
Part number 35ARM.
Description
Overview

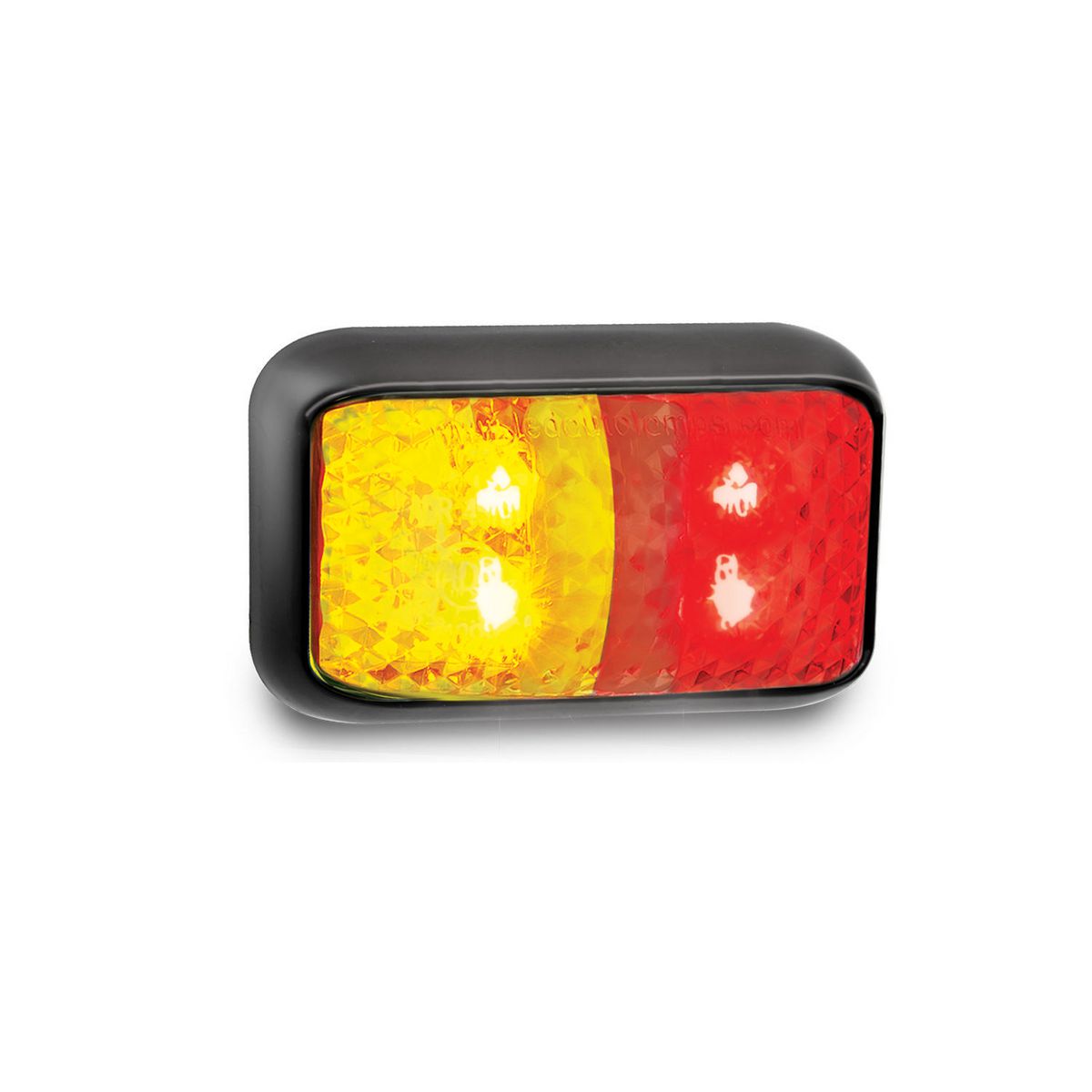

12/24V red amber side marker light supports trailer side visibility with red and amber LED output through a compact clear-lens marker lamp.
The 35 Series body suits tight side-panel positions where a low-profile surface-mount lamp works better than a larger marker. Because this blister version uses bare-wire connection, it suits straightforward trailer, truck, caravan and service body wiring jobs.
Features
- Red and amber side marker output through a clear lens
- 4 LED lamp with 40cm bare-wire cable
- IP67 rated body for exterior marker light positions
- Clip-in replaceable lens for service access
Specifications and Materials

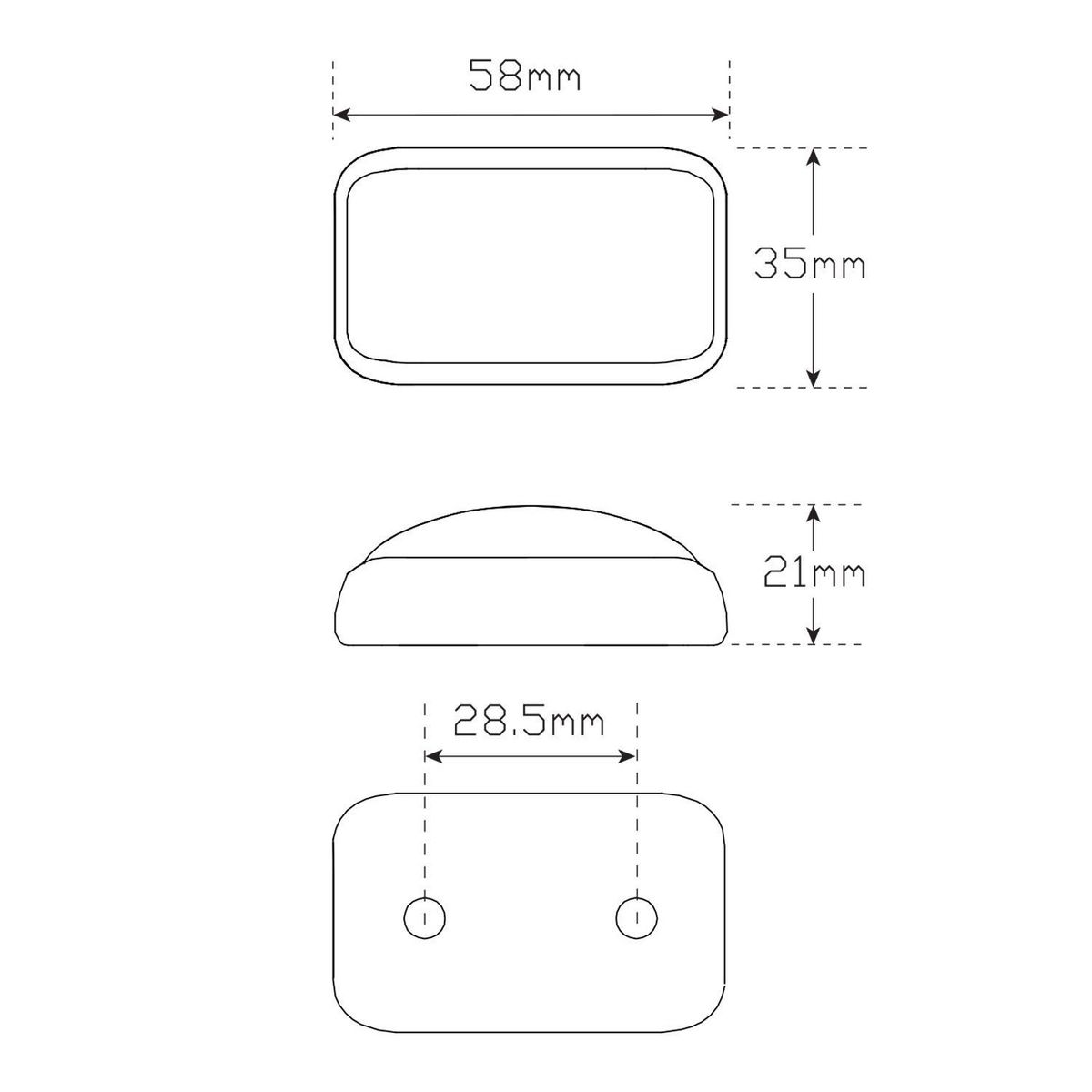

This 12/24V red amber side marker light measures 58mm x 35mm x 21mm and mounts to a flat surface. It uses a hardened acrylic lens with an ABS base, with 0.10A draw at 13.8V and 0.07A draw at 28V.
Part number: 35ARM.
Use the manufacturer technical guide
Compatibility and Fitment
Check the lamp size, voltage range, cable length and side marker position before ordering. Surface mount the bracket horizontally, run the wires through the back, then clip the lens into place after the wiring checks out.
Related Parts
Check the related 35 Series marker lamp parts below against the trailer or vehicle lighting setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Bulk version | 35ARMB | Red amber side marker lamp |
| Plug version | 35ARM-DT2P | Deutsch plug side marker lamp |
| Bracket to suit | 35BB | Black marker lamp bracket |
| Bracket option | 35BCB | Chrome marker lamp bracket |
Compliance and Safety
Fit the marker lamp to suit ADR 13/00 mounting requirements for the trailer or vehicle body. Also confirm polarity, earth and cable routing before final assembly, because poor wiring can leave the marker lamp inactive or intermittent.
Trailer Applications
Workshops fit this 12/24V red amber side marker light to trailers, truck bodies, caravans, trays and service bodies that need compact side marker lighting. The 58mm x 35mm body suits tight mounting areas along side rails, guards and body panels.
Why Choose ICS Trailers
ICS Trailers supplies LED marker lights for trailer repairs, fleet servicing and body builds, with practical matching across marker lamps, brackets, plugs and wiring hardware.
