Description

Overview

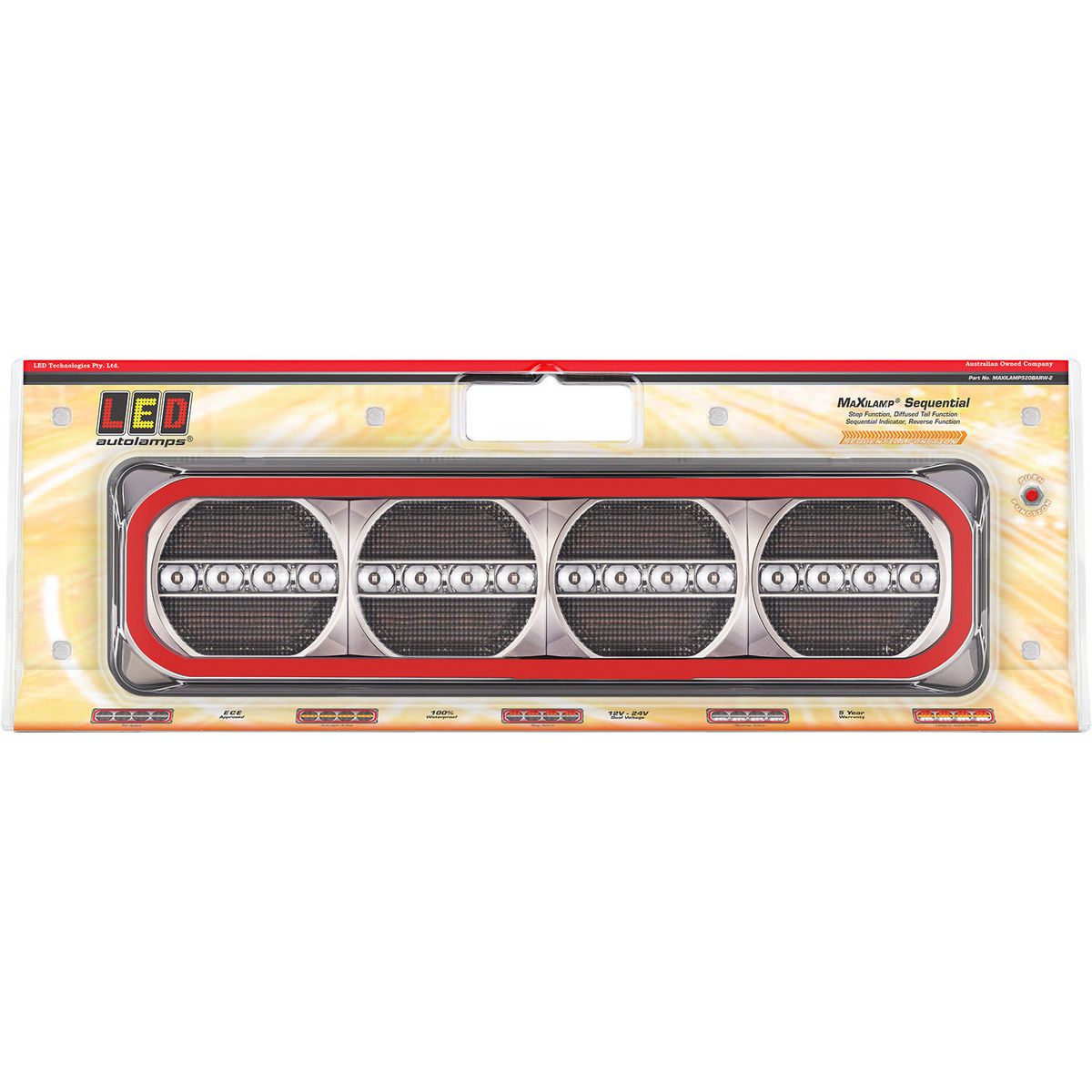

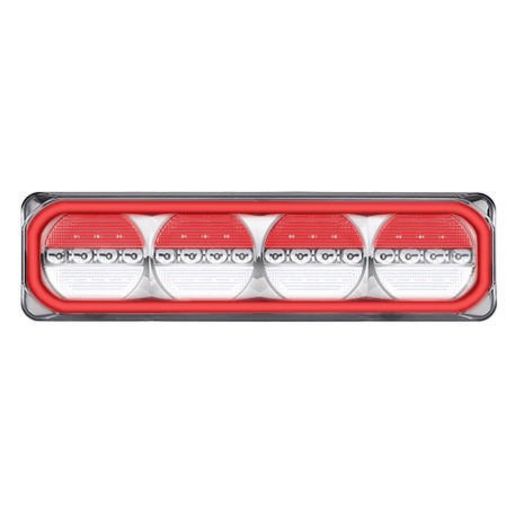

Sequential LED rear combination lamps handle stop, tail, indicator and reverse signalling on larger trailer and truck bodies. The twin lamp pack suits rear lighting upgrades where the job needs a wide body lamp with diffused tail output, sequential indicators and reverse light function in the same unit.

Features

• Stop, tail, indicator and reverse functions in a twin blister pack.
• Diffused tail function and sequential amber indicator output.
• 12/24V multivolt operation for trailer and heavy vehicle electrical systems.
• IP67 rated body with PMMA lens and ABS base.

Specifications and Materials

Each lamp measures 520mm x 141mm x 28.5mm and uses 136 LEDs across the stop, tail, indicator and reverse functions. The bare wire version includes 40cm cable and the mounting base clips behind the lamp for a clean surface mounted finish.

Part number: 520ARWM-2.

Use the manufacturer technical guide

Compatibility and Fitment

Match the available rear panel space, cable path and required rear light functions before ordering. Also check the mounting face, because the base plate mounts horizontally to a flat surface before the lamp clips into position.

The sequential LED rear combination lamps suit 12/24V systems and carry ECE approval for stop, tail, indicator and reverse operation. For road use, confirm the final mounting position against the trailer layout and applicable rear lighting requirements.

Related Parts

Check the related versions below against the trailer wiring and connector setup before ordering.

Compliance and Safety

Inspect the wiring, earth connection and mounting security before putting the trailer back into service. Then test every function from the tow vehicle, including reverse and both indicator directions, because poor earths and crossed wires can create misleading rear light faults.

Trailer Applications

Workshops fit sequential LED rear combination lamps to larger trailers, truck bodies, service bodies and custom builds where a single rear lamp needs to cover the main lighting functions. The wide lens layout gives a clear rear signal face, while the concealed base helps keep the installation tidy.

Why Choose ICS Trailers

Choose this twin pack when the rear lighting job needs multivolt operation, ECE approved lighting functions, reverse lamps and sequential indicators in a large format combination lamp.
