Description

Overview

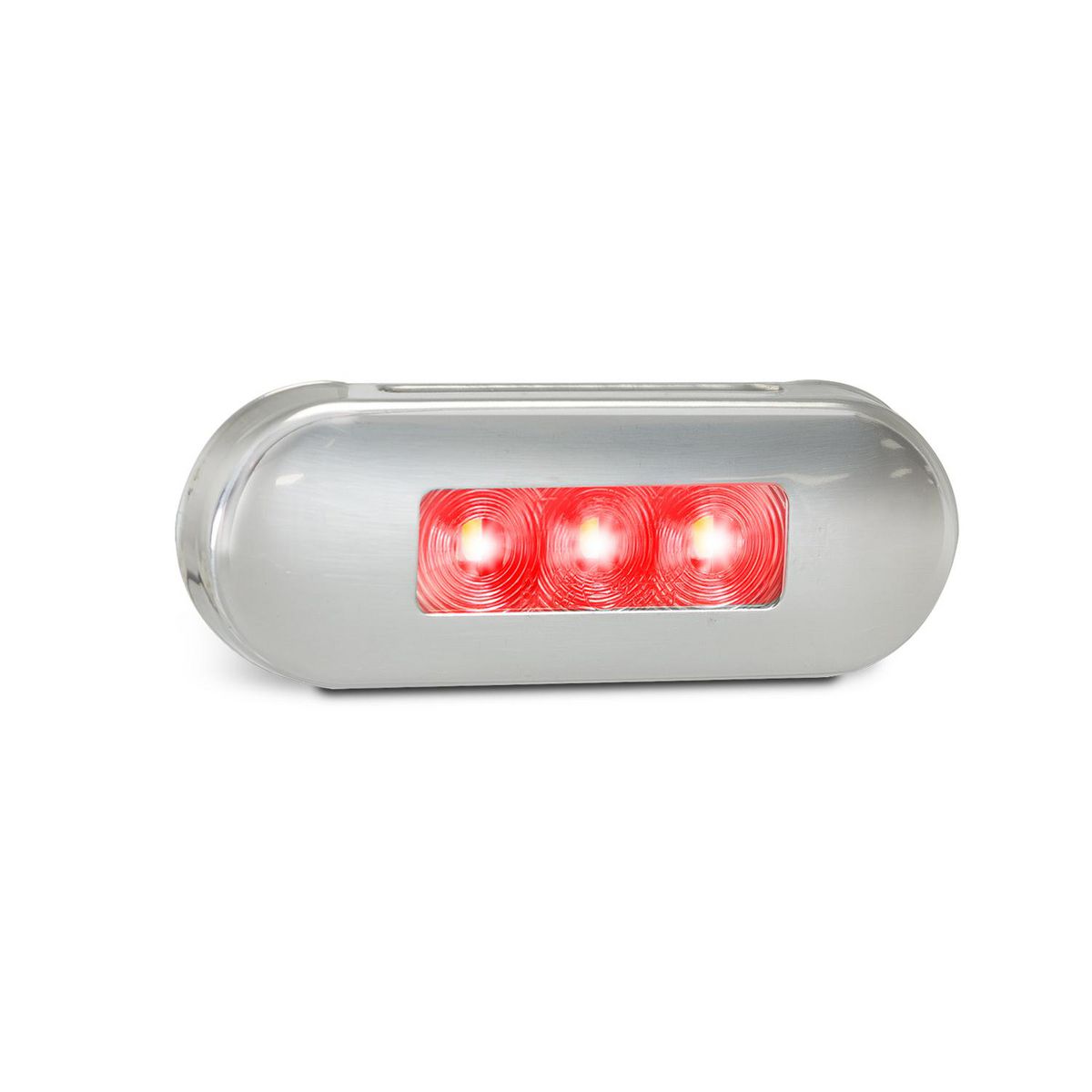

Red rear end outline marker adds rear marker visibility to trailers, trucks and service bodies with a compact low-profile lamp. The clear lens and coloured LEDs keep the lamp face clean when inactive, while the stainless steel bezel suits exposed rear body mounting.

Features

• Red rear marker function for rear end outline lighting
• 12-24V operation for compatible trailer and vehicle wiring systems

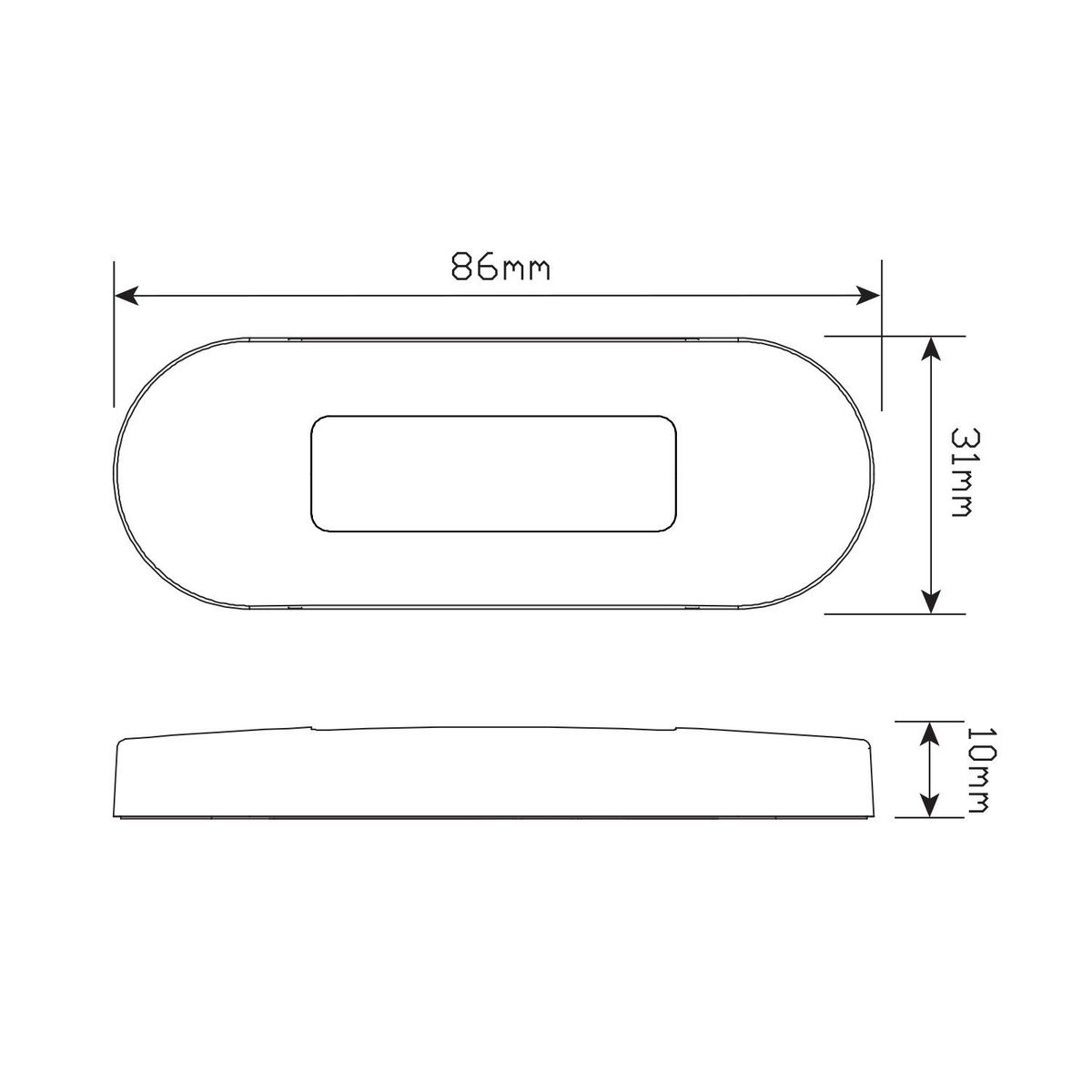

• 86mm x 31mm x 10mm low-profile surface mount body

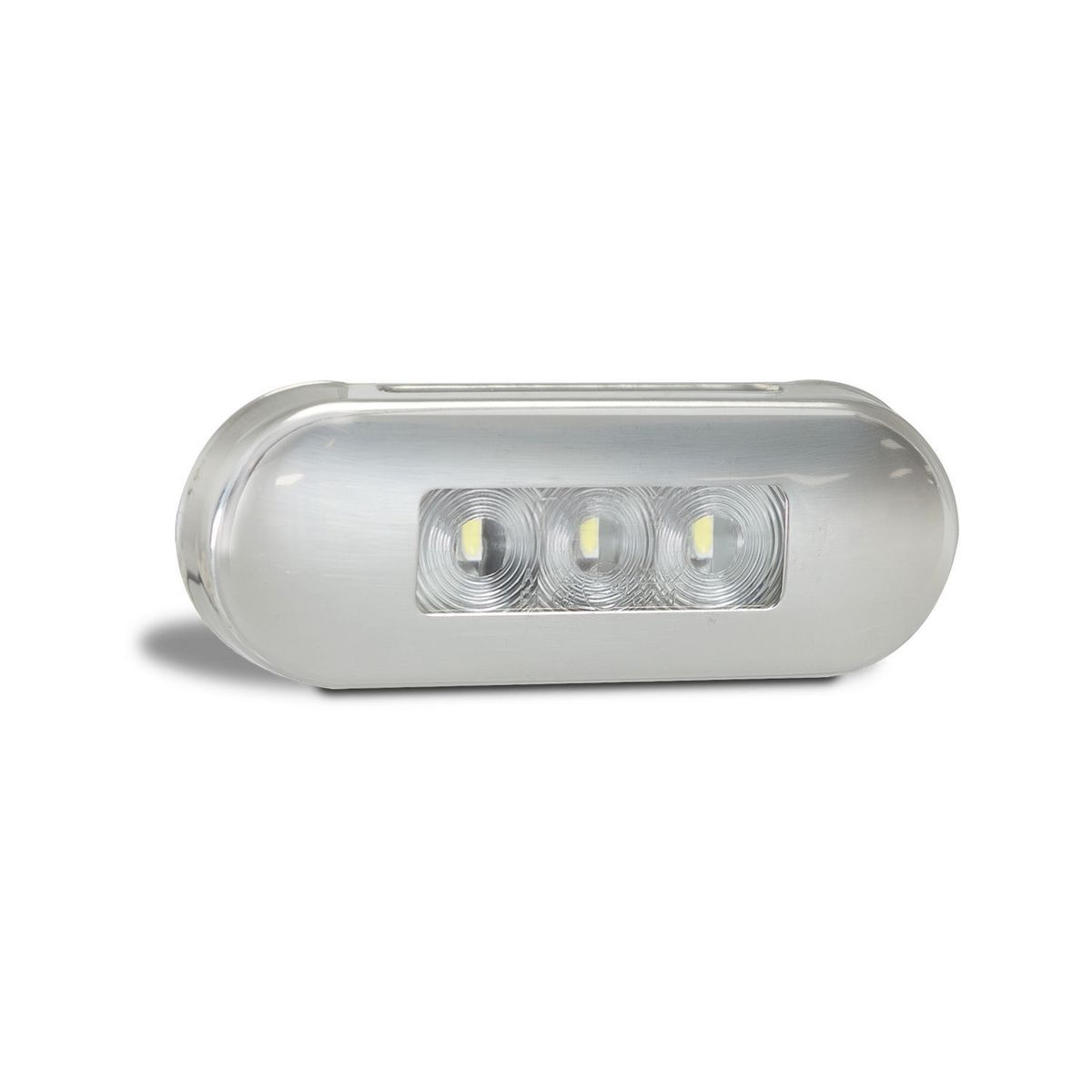

• Stainless steel bezel with clear lens and coloured LEDs

Specifications and Materials

The red rear end outline marker uses a polycarbonate lens, stainless steel base and 15cm cable. It carries 3 LEDs, runs on 12-24V systems and draws 0.12A at 13.8V or 0.04A at 28V for the rear marker function.

Part number: 86RMB.

See the official manufacturer 86 Series specification sheet for manufacturer technical data

Compatibility and Fitment

Check the rear lamp position, marker function, mounting face and wiring route before ordering. Because this lamp surface mounts horizontally, the body panel needs a flat area for the screws and a clean path for the cable through the rear face.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp securely, then test the rear marker circuit from the towing vehicle before road use. Also inspect the cable exit so the wiring cannot rub against sharp panel edges or pull tight behind the body.

Trailer Applications

Workshops fit this red rear end outline marker to trailers, trucks, caravans and service bodies that need compact rear outline identification. It also suits replacement work where the existing 86 Series lamp footprint and stainless bezel style need to match.
