Description

Overview

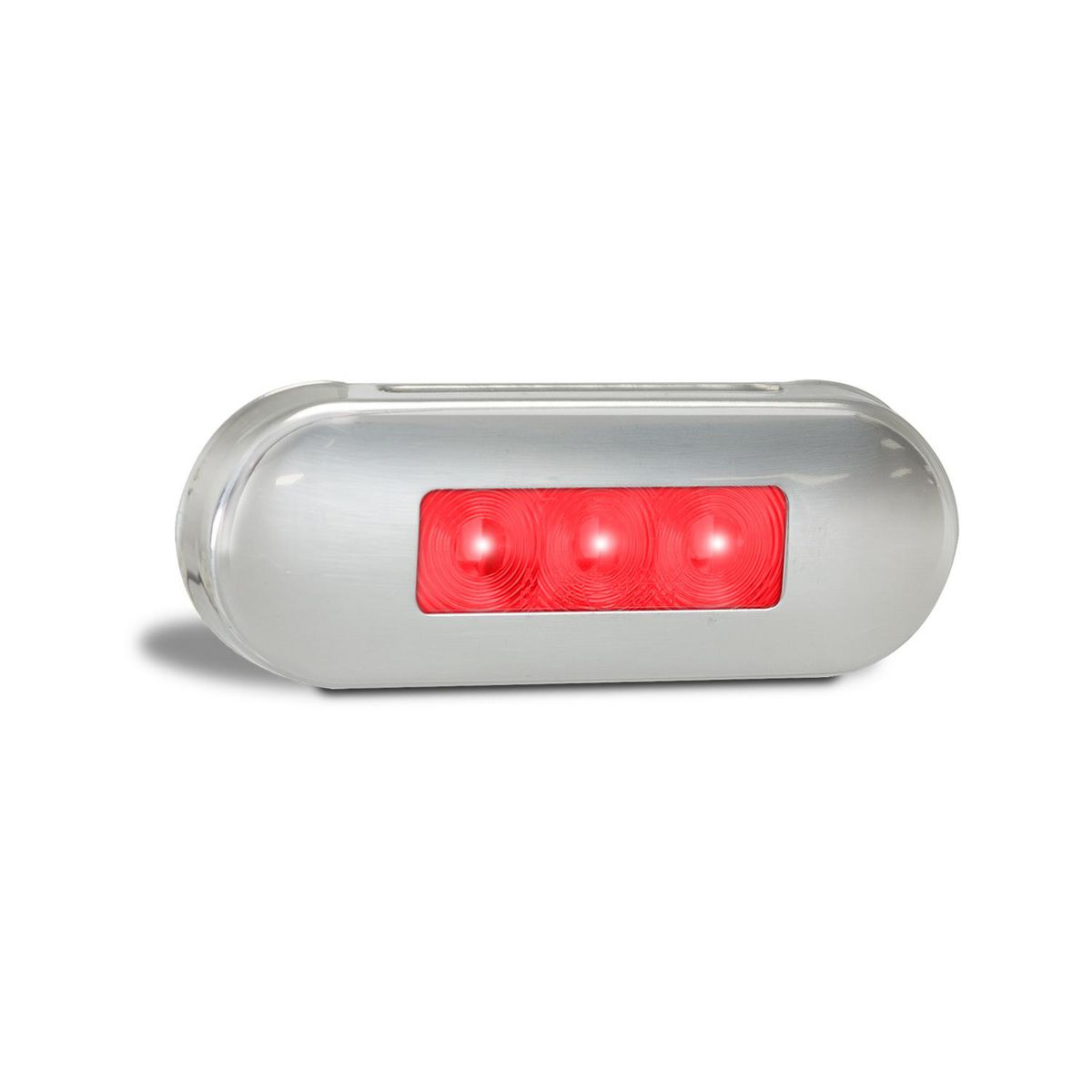

Red rear end outline marker LED lamp restores rear outline visibility on 12-24V trailer and truck body lighting systems. The low-profile 86 Series body uses a stainless steel bezel, so it suits rear corner positions where the lamp needs a neat metal finish rather than a plain plastic surround.

Features

• Red rear end outline marker function for trailer and vehicle body lighting.
• 3 LEDs with 12-24V multivolt operation.
• Low-profile stainless steel bezel for a truck-style finish.
• IP67 sealing helps protect the lamp against dust and water exposure.

Specifications and Materials

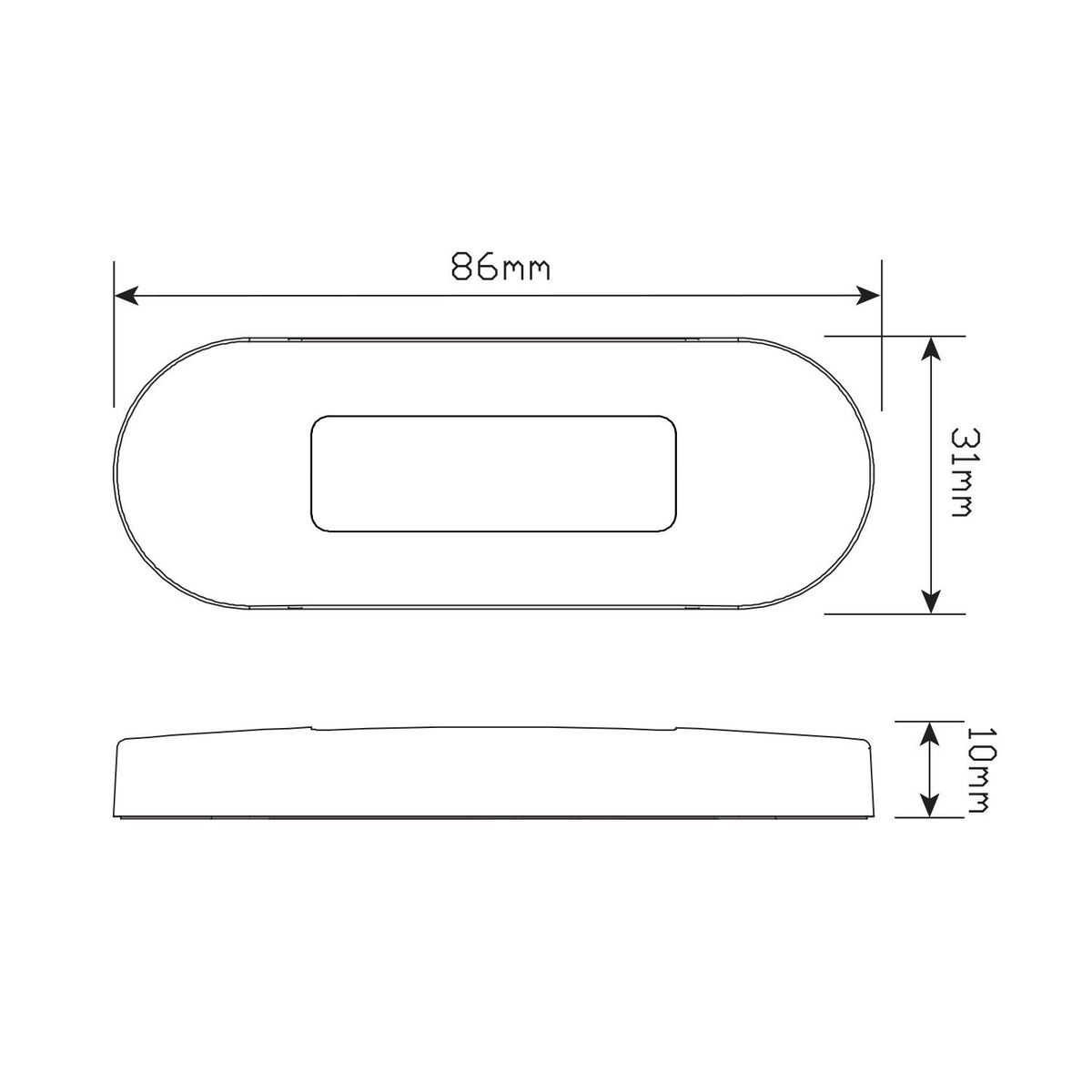

This red rear end outline marker LED lamp measures 86mm x 31mm x 10mm and uses a 15cm bare-wire cable. The lamp has a polycarbonate lens, stainless steel base and rear-end current draw of 0.05A at 13.8V and 0.06A at 28V.

Part number: 86RRMB.

The manufacturer technical guide covers dimensions, draw and fitting details

Compatibility and Fitment

Match the 86 Series lamp size, red rear-end outline function, 12-24V system and bare-wire connection before ordering. For fitting, remove the bezel, mount the lamp horizontally on a flat surface with screws, run the wires through the back, then clip the bezel into place.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm rear outline marker position, lamp direction and wiring before road use. Also check the bezel after fitting, because a loose clip can let the surround move under vibration.

Trailer Applications

Workshops fit this red rear end outline marker LED lamp to trailer rear corners, truck bodies, ute trays and caravan rear panels. It suits repairs where the rear outline marker needs a compact lamp with a stainless steel bezel and a shallow surface-mount body.
