Red Amber Side Marker Lamp Chrome Plug

Allan Davis on 05/05/2026

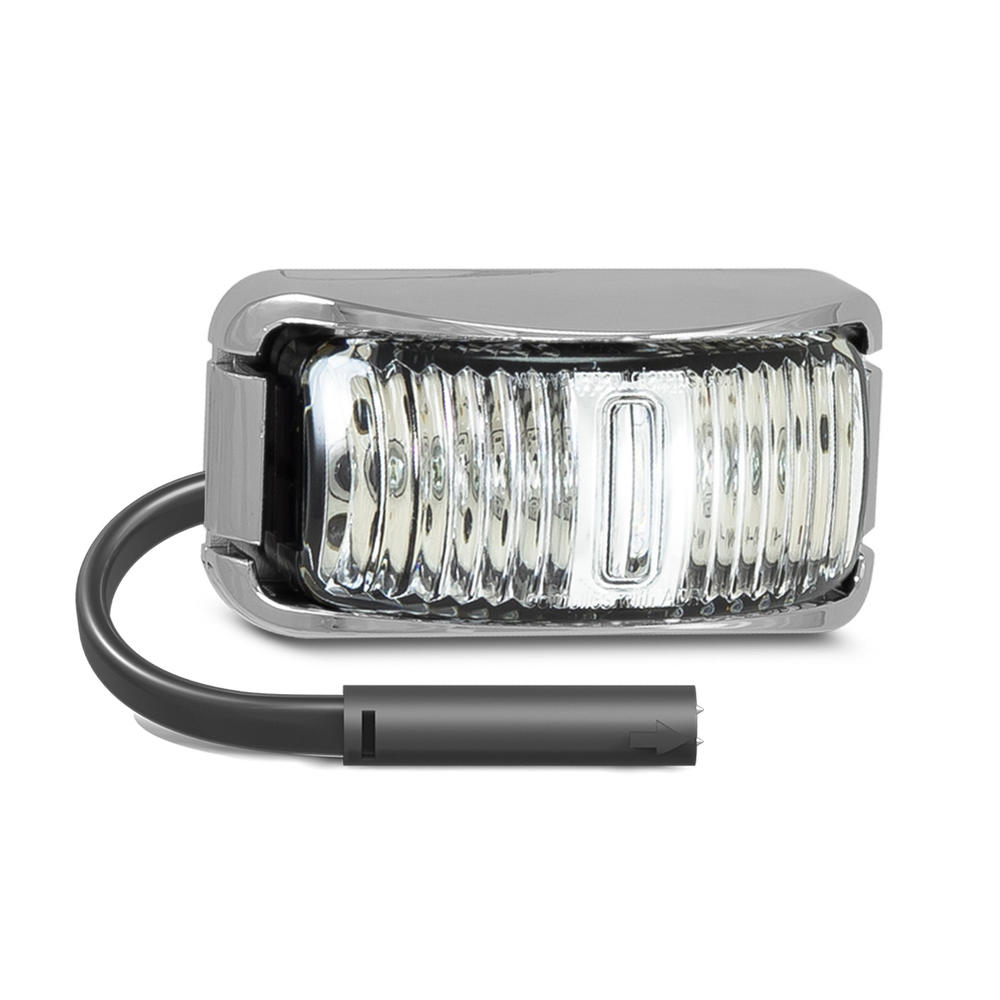

red amber side marker lamp with chrome bracket and clear lens

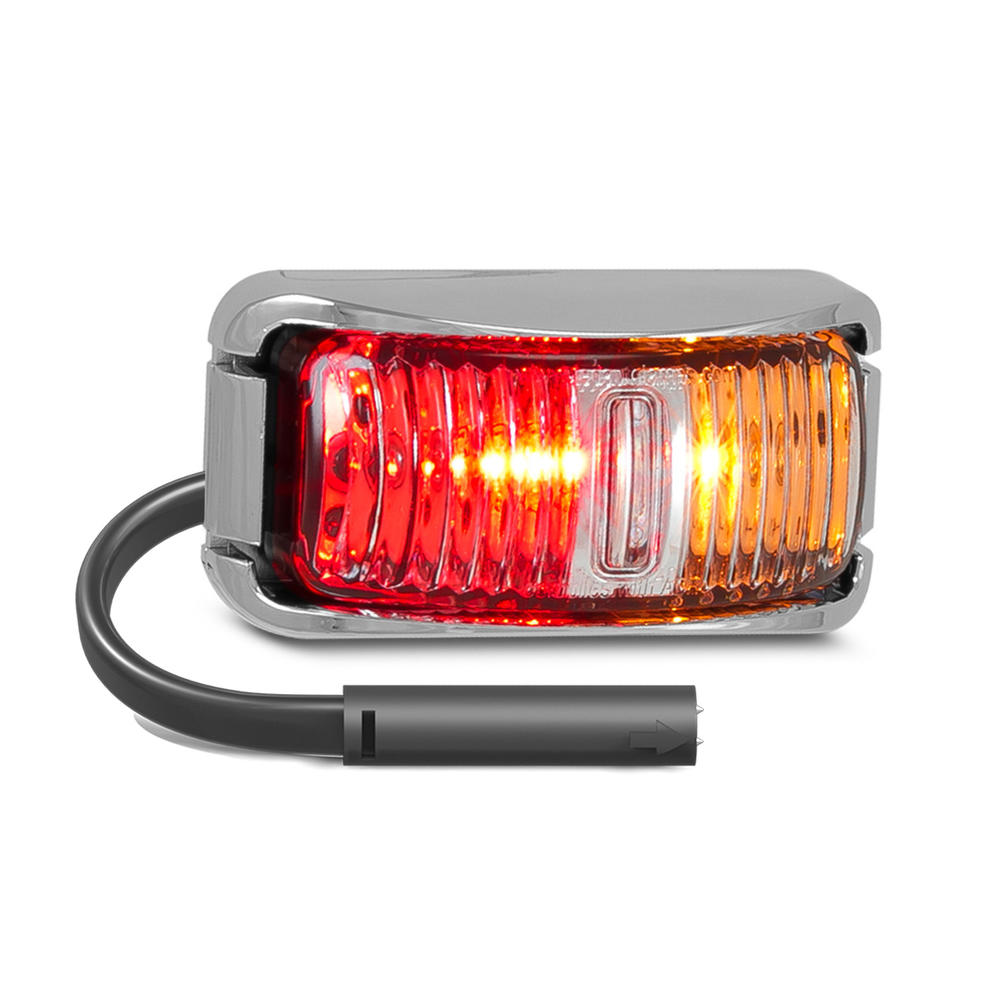

Red Amber Side Marker Lamp Chrome Plug - Image 2

Red Amber Side Marker Lamp Chrome Plug

$21.00

Side marker lamp for 12-24V trailer and body lighting, with red/amber output, chrome bracket, clear lens and CSB plug connection for compatible harness-style installs.

Part number 42CARMCSB.

Quick Quote

SKU: 42CARMCSB Category: Tags: , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

Red amber side marker lamp marks the trailer side profile with a clear lens, chrome bracket and red/amber output in one compact 42 Series body. It suits 12-24V trailer and body lighting where a side marker needs a plug connection instead of bare-wire fitting.

Features

  • Clear lens face with red and amber side marker output.
  • Chrome bracket suits exposed side-body mounting.
  • Clip-in lens design makes lamp and bracket service work cleaner.
  • CSB plug connection suits compatible harness-style wiring.

Specifications and Materials

Part number: 42CARMCSB.

The lamp measures 74mm x 38mm x 35mm and runs on 12-24V systems. It uses a polycarbonate lens and hardened acrylic base, while the side marker circuit draws 0.05A at 13.8V and 0.06A at 28V. The plug version uses a 20cm connection lead for compatible cable-system installs.

42 Series Chrome technical guide

Compatibility and Fitment

Match the lamp body size, chrome bracket style, red/amber side marker function and CSB plug connection before ordering. Also check the trailer harness plug, mounting screw position and panel clearance, because this lamp clips into its bracket after the wiring runs through the back.

Use this marker lamp fitment where the trailer side needs combined red and amber marker visibility from the same compact lamp body.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Bracket to suit 42BC Chrome replacement bracket
Mounting bracket 97BKTBS Multi-fit bracket for 42 Series



Compliance and Safety

Mount the bracket horizontally on a flat surface and run the wiring through the back before clipping the lens into place. Then test marker operation from the correct viewing angles and fix any poor earths, damaged plugs or loose wiring before road use.

Trailer Applications

Trailers, rigid bodies and commercial vehicle builds use this style of lamp for side marker visibility along the body line. The red amber side marker lamp suits repair work where the existing setup uses chrome 42 Series-style marker lamps with plug-in harness connections.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairs, body fit-outs and workshop replacement jobs where lamp style, voltage and plug type matter before fitting. Browse more trailer lighting parts in LED Lights
