Description

Overview

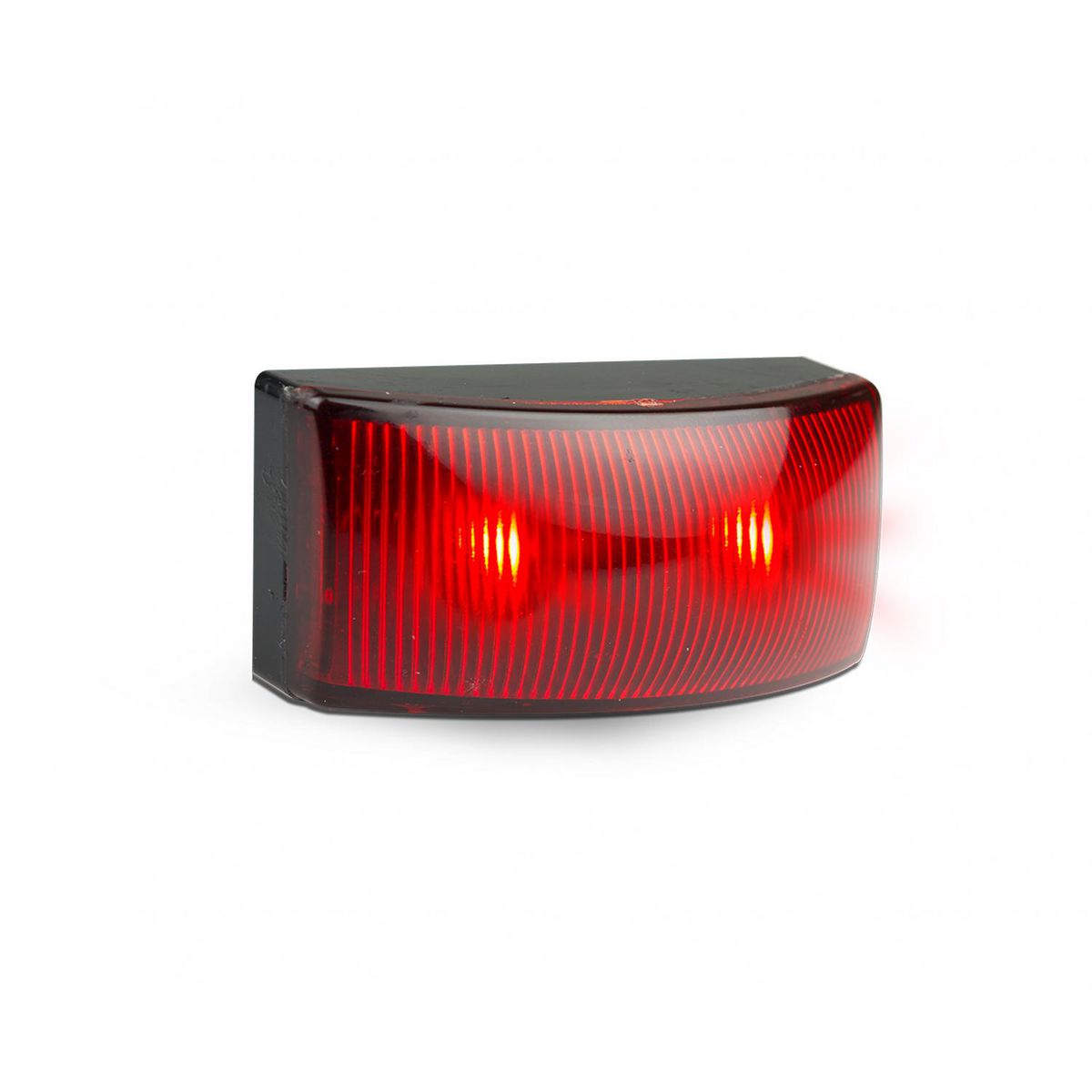

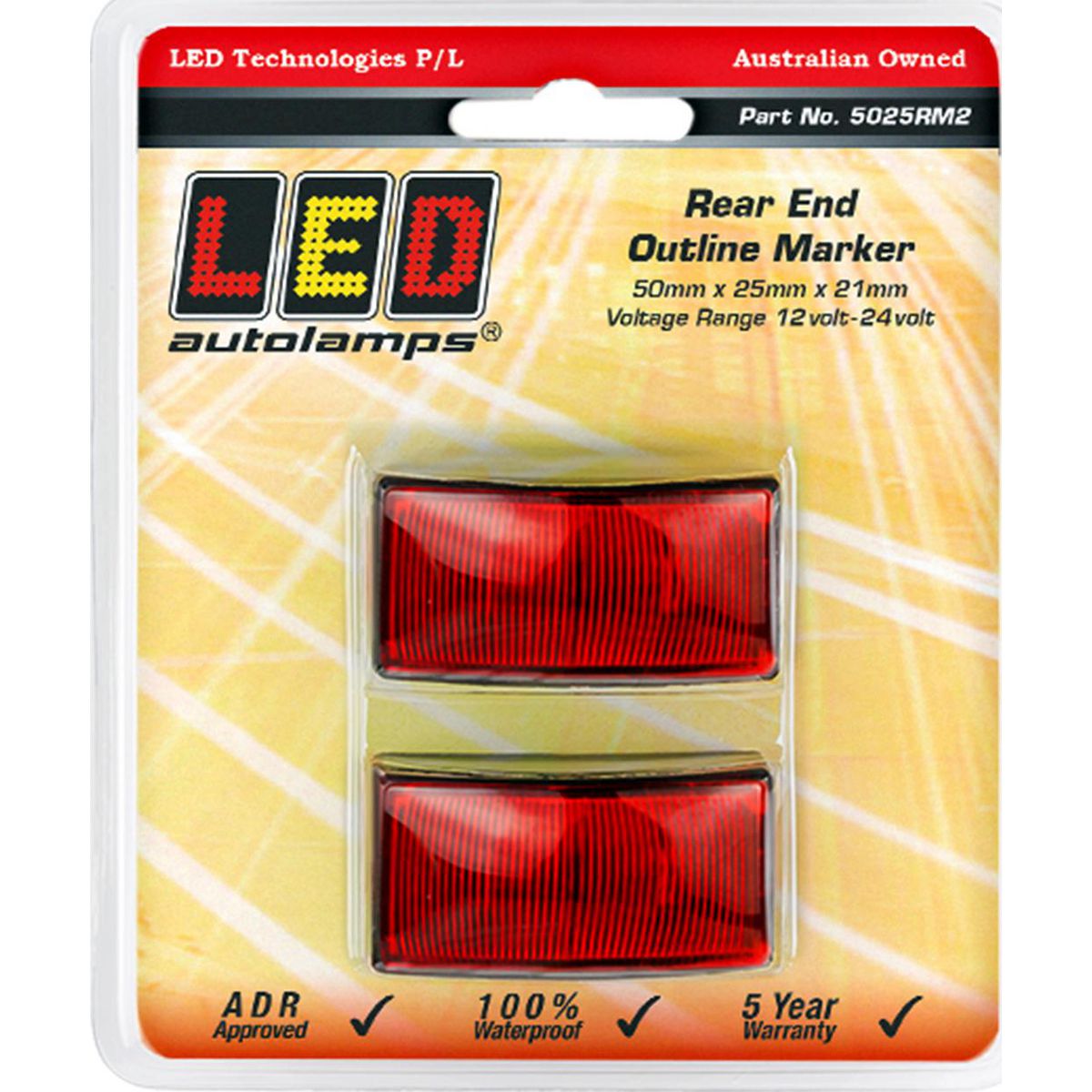

Red rear end outline marker identifies the rear outline of a trailer, truck body or service vehicle with a compact red LED marker lamp. This twin pack suits 12V and 24V systems, so it fits mixed fleet work where rear marker lighting needs a small footprint and a low-profile finish.

Features

• Red rear end outline marker function for rear vehicle visibility.
• Non-fastener fitment uses a serrated plug and 3M tape.
• Compact 50mm x 25mm x 21mm body suits tight mounting spots.
• 20cm bare-wire cable supports straightforward hard-wired installs.

Specifications and Materials

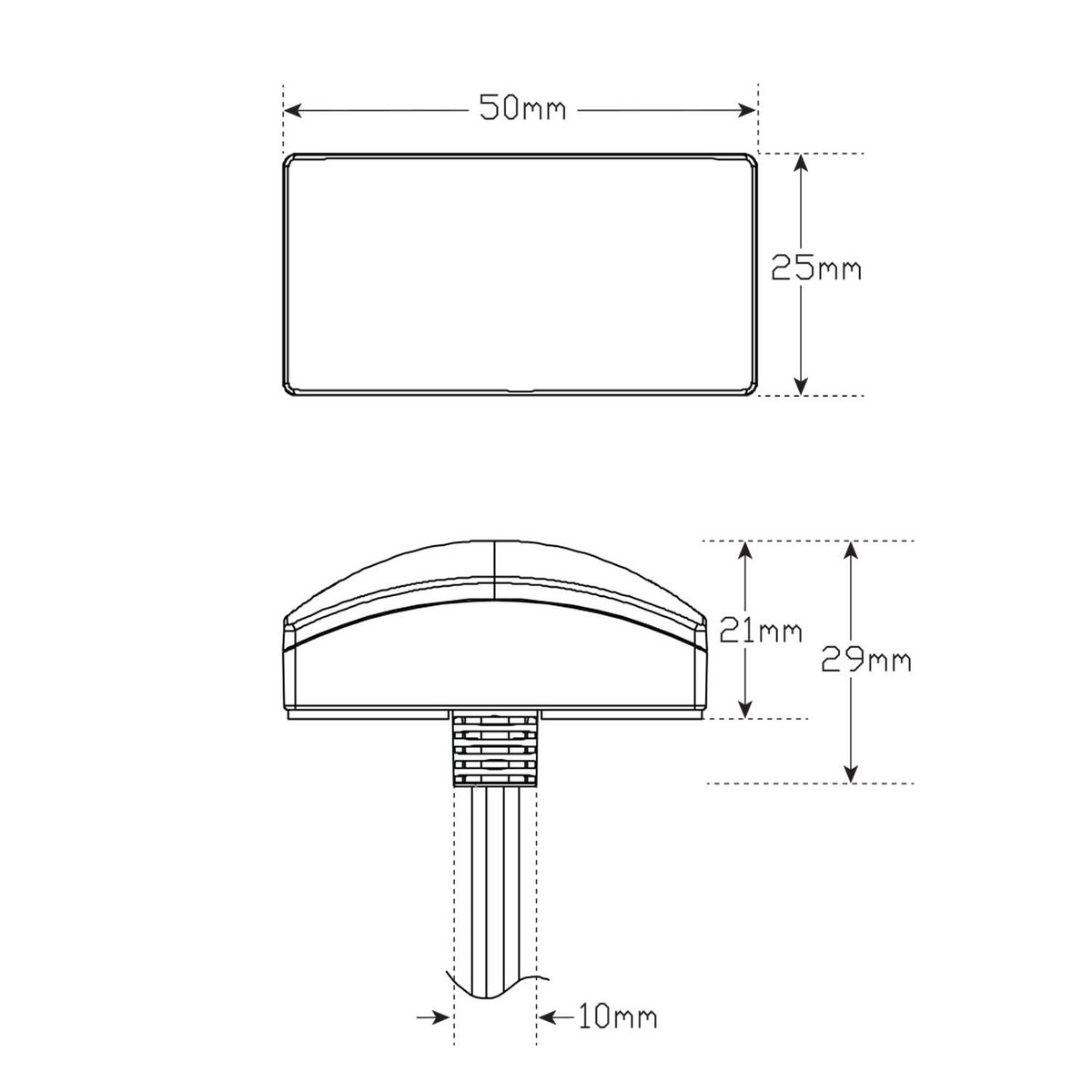

This marker uses a PMMA lens and ABS base, with 2 LEDs per lamp. The lamp measures 50mm x 25mm x 21mm and draws 0.029A at 13.8V and 0.029A at 28V.

Part number: 5025RM2.

The lamp carries ADR rear end 49/00 approval with CRN 47202 and CTA rear end 49/00 approval with CTA-047202. Its IP67 rating suits exposed rear marker positions where water, dust and road grime are part of normal service.

Check the manufacturer technical page before finalising approval, current draw and fitting details

Compatibility and Fitment

Match this lamp to rear end outline marker positions that need a red 12-24V lamp, bare-wire connection and 10mm mounting hole. For fitment, drill the hole for the serrated plug, pull the cable through, remove the tape film, then press the lamp firmly into place.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Check mounting location against the trailer body layout before drilling. Also confirm cable protection behind the panel, because unsupported wiring can rub through on sharp bodywork and create lighting faults later.

Trailer Applications

Workshops fit this style of marker lamp to trailers, truck bodies, caravans, service vehicles and small commercial bodies. The red rear end outline marker suits rear perimeter lighting where the installer wants a compact lamp without visible screw fixings.
