Description

Overview

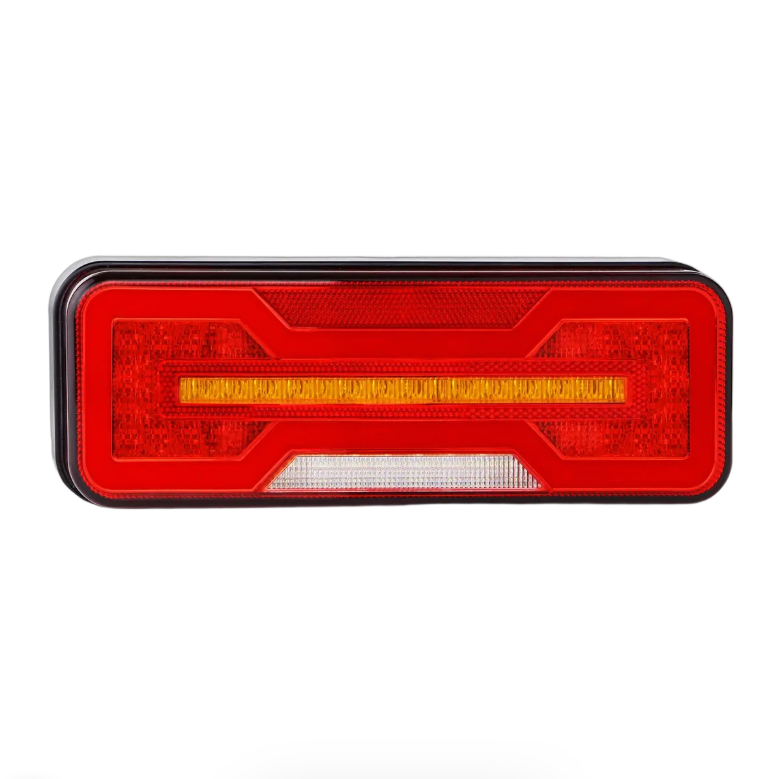

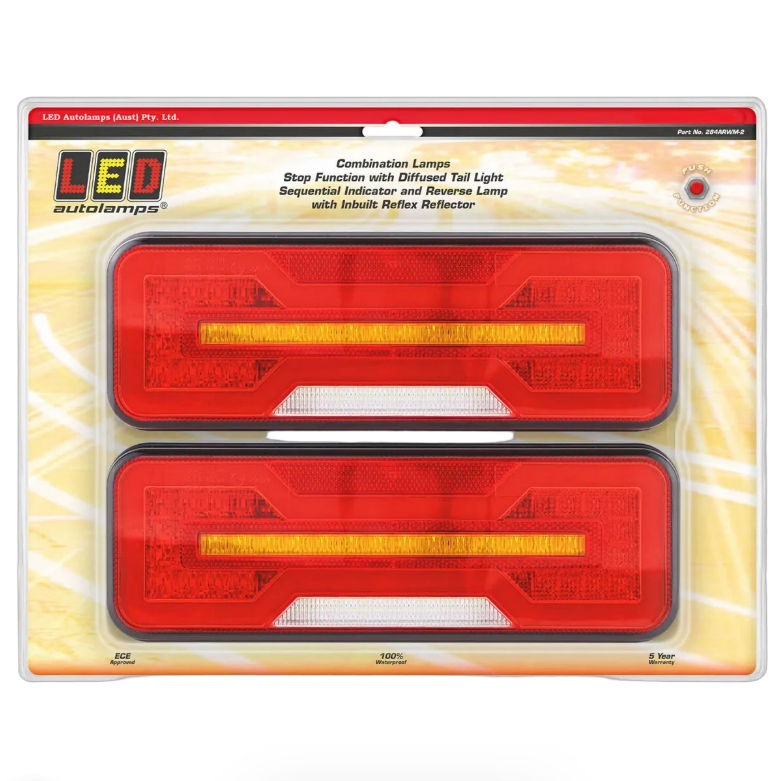

Rear combination lamp handles stop, tail, indicator, reverse and reflector functions in one compact rear lighting unit. The twin pack suits left and right rear trailer positions where a surface mounted multivolt lamp is needed with sequential indicators and an inbuilt reflex reflector.

Features

• Stop, tail, indicator, reverse and reflector functions in one lamp body.

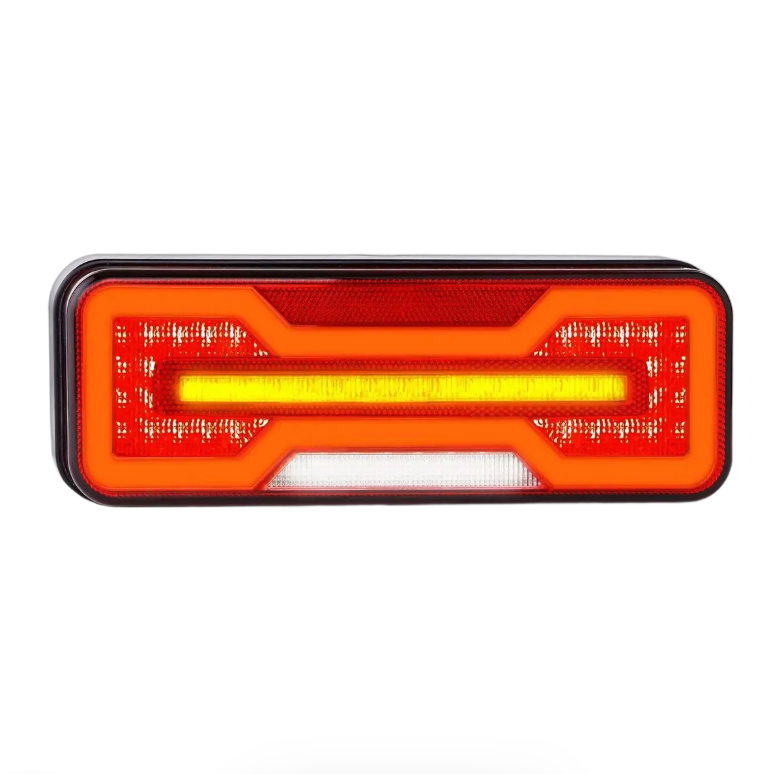

• Sequential indicator with diffused tail light function.
• 10-30V multivolt design for 12V and 24V trailer systems.
• IP67 rated, ECE approved and backed by a 5 year warranty.

Specifications and Materials

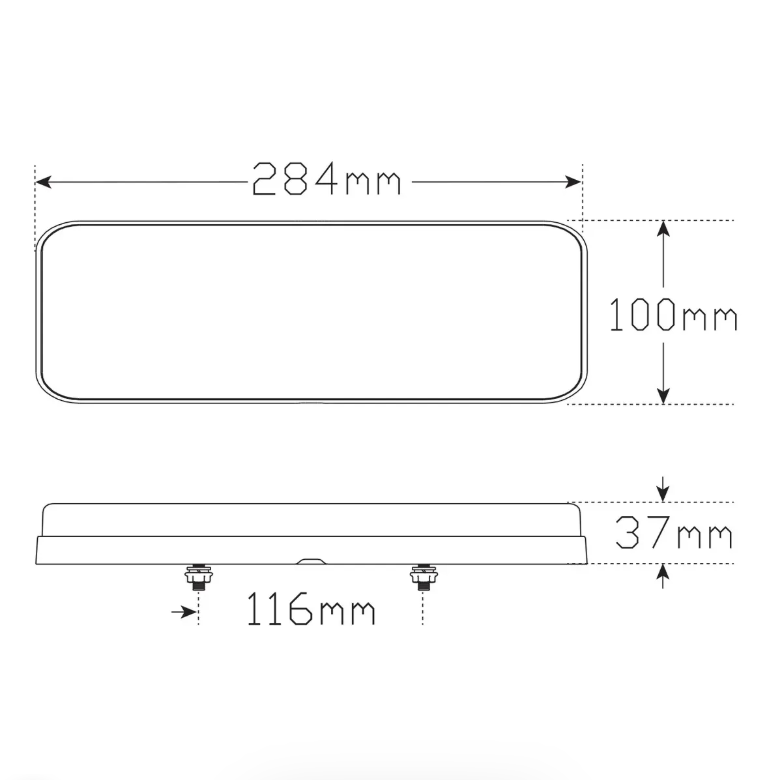

This rear combination lamp measures 284mm x 100mm x 37mm and carries a 28cm cable. Current draw at 13.8V is 0.18A stop, 0.14A tail, 0.30A indicator and 0.14A reverse.

Part number: 284ARWM-2.

Approvals include ECE stop/tail E9*7R02/27*22553*00, ECE indicator E9*6R01/28*22553*00, ECE reverse E9*23R00/22*22553*00, ECE reflector E9*3R02/7*22553*00 and CTA-060237.

See the manufacturer technical details

Compatibility and Fitment

Match the rear combination lamp to the trailer voltage, rear light layout, plug path and mounting surface before ordering. Surface mount horizontally using the bolts in the back of the lamp, then run the wire and plug through a 10mm hole in the fixing surface.

The wiring colours are brown for tail, red for stop, yellow for left indicator, green for right indicator, black for reverse and white for earth.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the lamp functions, wiring polarity and trailer earth before final fitment. For road registered trailer work, follow the applicable trailer lighting layout and ADR 13/00 mounting guidance.

Trailer Applications

A rear combination lamp suits trailers, caravans, service bodies, trays and light commercial trailer builds where the rear panel needs multiple lighting functions in one unit. The inbuilt reflector helps reduce separate rear hardware, while the sequential indicator gives a modern rear signal pattern.

Why Choose ICS Trailers

Trailer lighting needs to match the voltage, mounting surface, wiring layout and rear body design before it goes on. ICS Trailers can help line up lamps, wiring and lighting hardware for trailer repair, refit and build work.
