Description

Overview

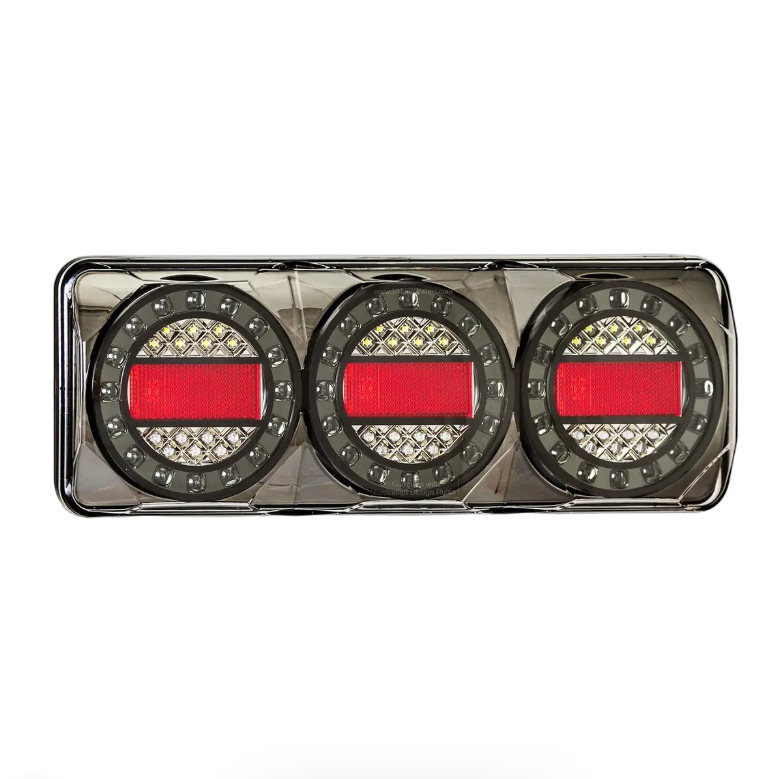

Rear combination lamp combines stop, tail, indicator and reflex reflector functions in one wide rear lamp body. The Maxilamp 3 style suits trailers, trays and vehicle bodies where a larger black chrome lamp gives strong rear signalling with a clean modern appearance.

Features

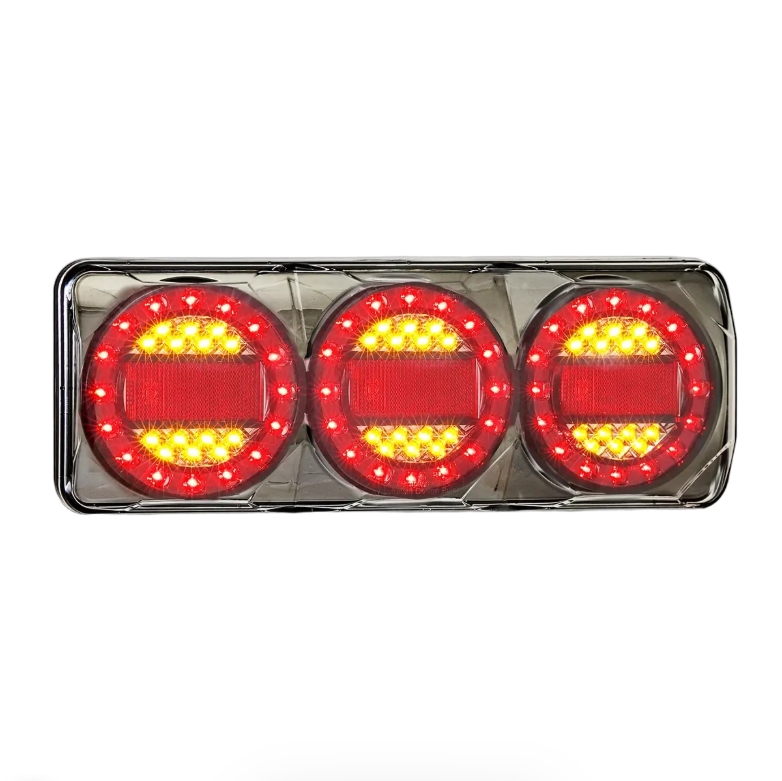

• Stop, tail, indicator and reflex reflector functions in one lamp
• 12-24V operation for compatible trailer and vehicle electrical systems

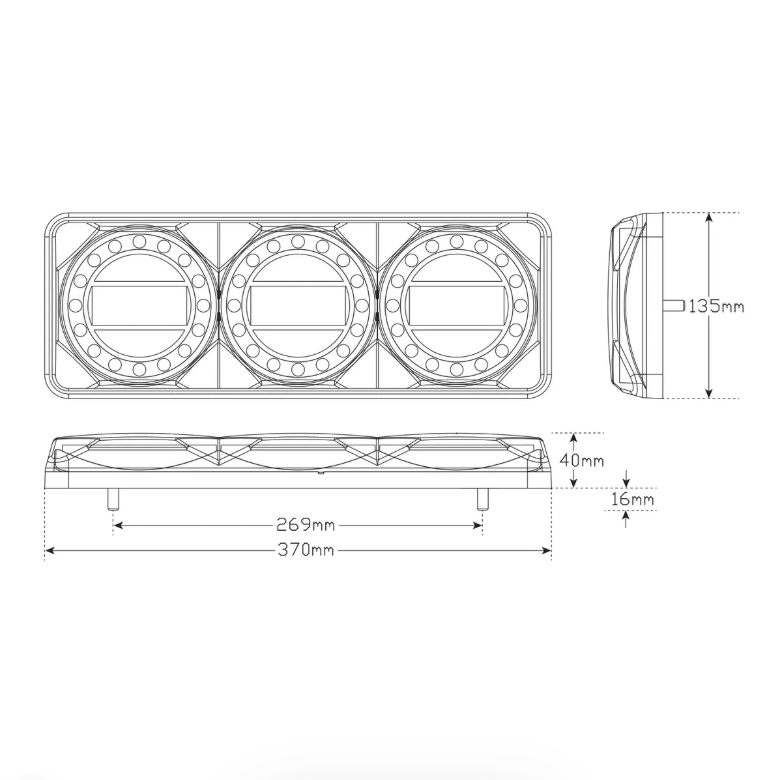

• 370mm x 135mm x 40mm body for larger rear lamp fit-up

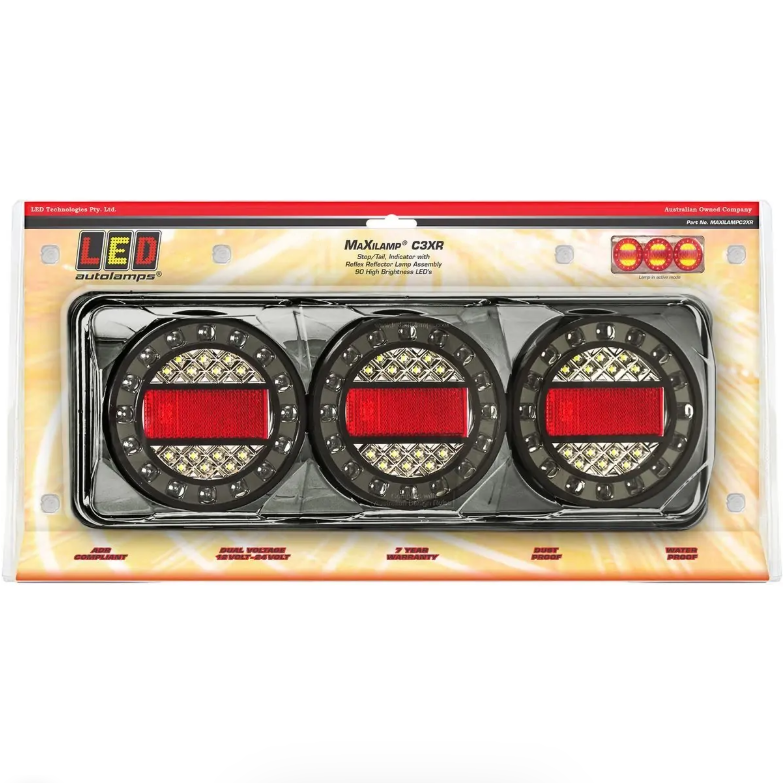

• Bolt mount bulk boxed version with black chrome design

Specifications and Materials

The rear combination lamp uses 90 LEDs, a 40cm cable, PMMA acrylic lens and ABS base. Current draw is listed across stop, tail and indicator functions at both 13.8V and 28V, so check the trailer wiring and vehicle system before fitment.

Part number: MAXILAMPC3XRB.

See the official manufacturer Maxilamp 3 specification sheet for manufacturer technical data

Compatibility and Fitment

Check the mounting face, lamp orientation, cable path and required rear lighting functions before ordering. This bolt mount version suits flat horizontal mounting, and the wiring needs a clean pass-through behind the rear panel.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp firmly to a flat surface, then test stop, tail and indicator operation from the towing vehicle. Also keep sealant and adhesive away from the breather area, because covering it can affect the lamp and warranty.

Trailer Applications

Workshops fit this rear combination lamp to trailers, truck trays, service bodies and larger towable equipment where a wide rear lamp footprint suits the body layout. It also suits replacement work where the existing Maxilamp 3 bolt mount style needs to match.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repairers, fleets and trailer owners who need larger rear combination lamps for practical fit-up. Browse more LED Lights from ICS Trailers
