Description

Overview

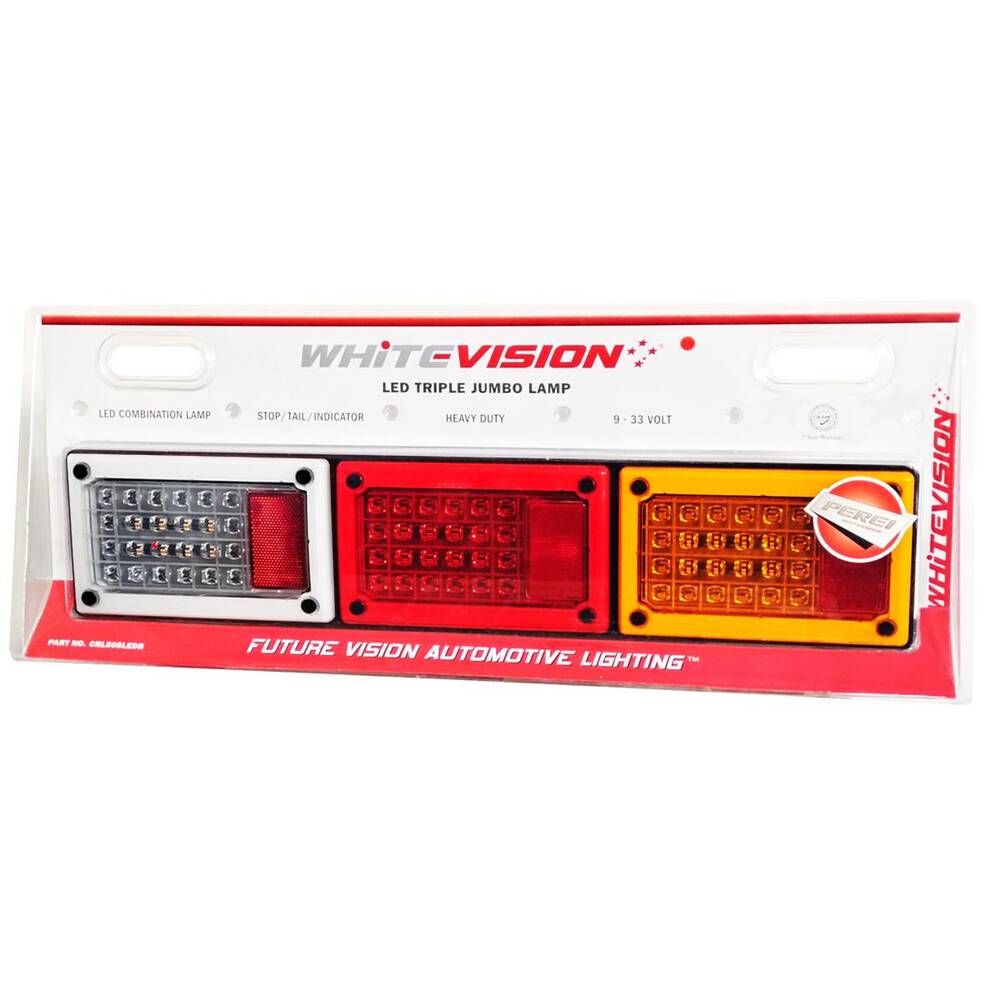

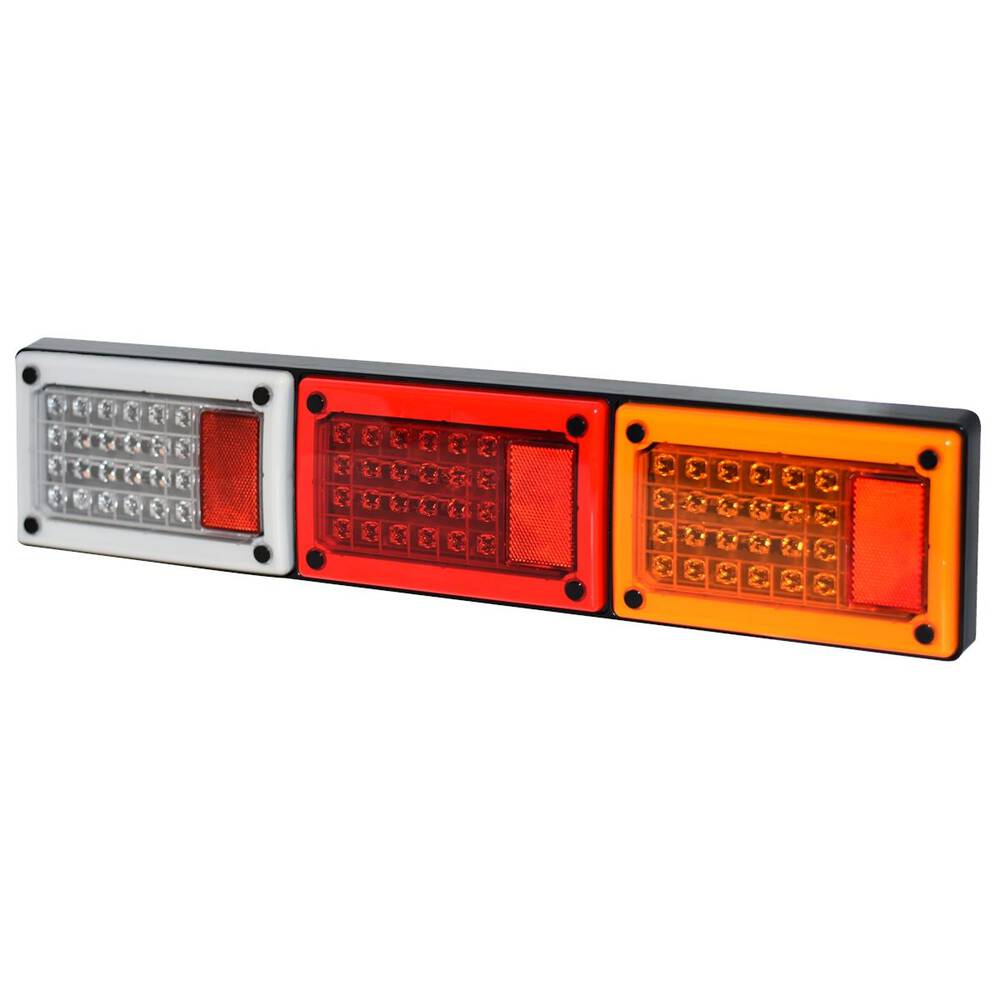

LED triple jumbo combination lamp with reverse handles stop, rear position, direction indicator, reverse and reflector functions in one heavy-duty rear lighting assembly. It suits trucks, rigid bodies, buses, coaches, trailers and heavy vehicles that need a 9-33V rear lamp with modular LED construction and a strong ABS/PC housing.

Features

• Triple jumbo layout covers stop, rear position, direction indicator, reverse and reflector functions
• Modular LED system supports individual insert module replacement
• High heat and enhanced UV protective coating suits harsh operating conditions
• Front or rear stud mounting gives installers flexible panel fitment options

Specifications and Materials

This LED triple jumbo combination lamp with reverse runs on 9-33V DC Varivolt systems and uses a polycarbonate lens, ABS/PC housing, IP67 sealing and stud mounting. Power ratings are 2.4W stop, 0.4W/0.8W rear position, 2.8W indicator and 2.4W reverse.

Part number: CRL505RLEDB.

Use the Whitevision 505 Series technical details when checking the manufacturer product family.

Compatibility and Fitment

Match this lamp to 9-33V truck or trailer wiring before ordering. Also check the rear panel space, stud mounting position and whether the job needs the reverse version or the related stop, tail and indicator version without reverse.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

The lamp supports ADR-compliant rear lighting when mounted in the correct rear position and wired correctly. Before fitting, inspect the panel, stud holes, cable route and sealing area so the lamp sits flat and the wiring avoids sharp edges.

Trailer Applications

Workshops fit this style of LED triple jumbo combination lamp with reverse to heavy trailers, rigid truck bodies, buses, coaches and OE vehicle builds. Because the lamp uses replaceable modules, damaged or failed lighting sections can be serviced without replacing the complete rear lamp assembly.

Why Choose ICS Trailers

ICS Trailers supplies heavy trailer and commercial vehicle lighting parts for repairs, refits and body builds, so buyers can match the voltage, mounting style, lamp functions and service modules before fitting. For more trailer lighting options, browse the ICS Trailers LED Lights category
