Description

Overview

LED reverse lamp provides rear white reverse lighting in a recessed rectangular body for trailer and vehicle applications. The included grommet and plug suit fit-ups where the lamp needs to sit neatly into a rear panel rather than surface mount on top of it.

Features

• Recessed rectangular reverse lamp with included grommet and plug
• 12-24V operation for compatible trailer and vehicle electrical systems
• 32 white LEDs for the reverse lighting function
• IP67 sealing for exposed exterior mounting

Specifications and Materials

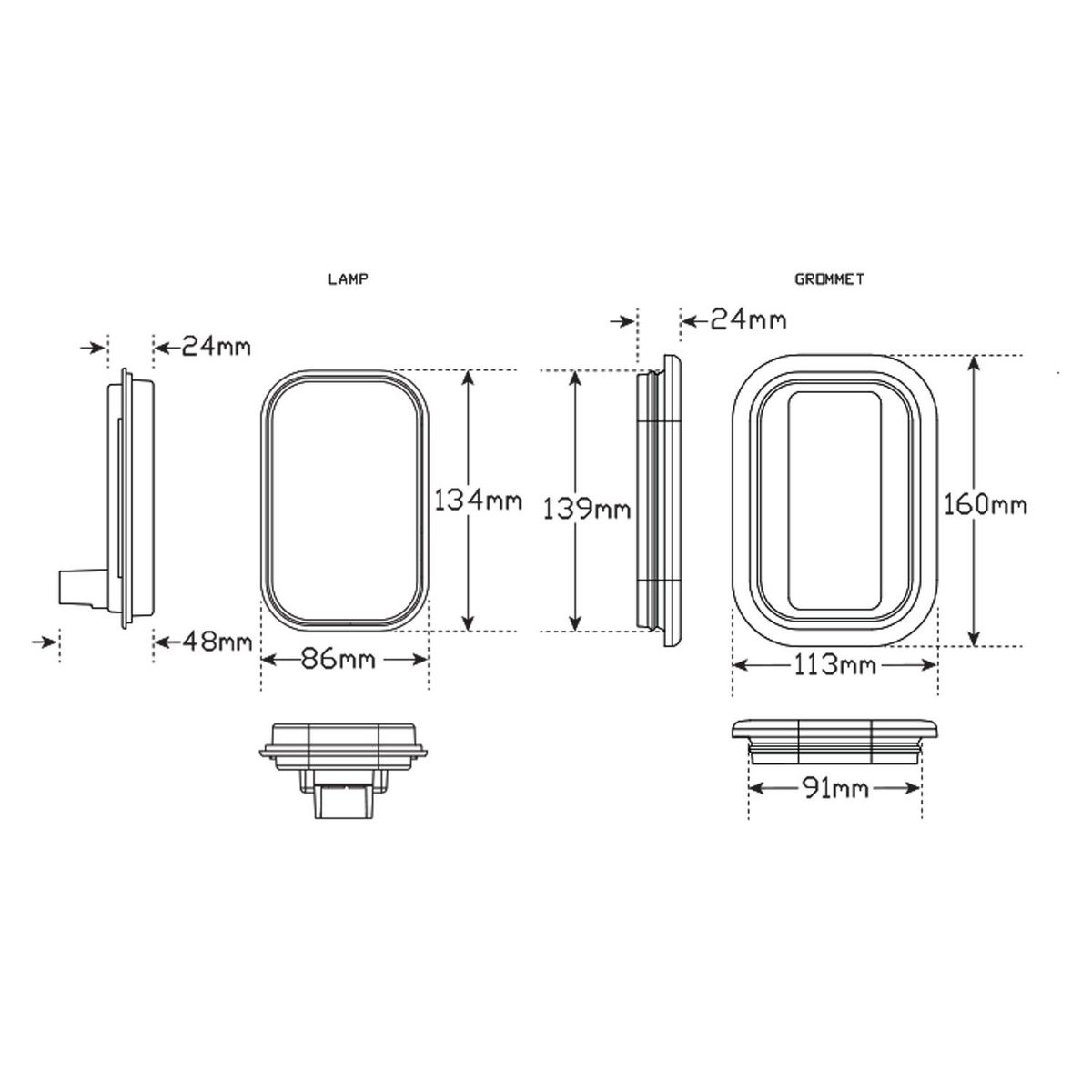

The LED reverse lamp uses a hardened acrylic lens, 53102 plug connection and 32 white LEDs. The lamp body measures 134mm x 86mm x 16mm, while the grommet suits a 139mm x 91mm cutout with 23mm radius. Reverse draw is 0.15A at 13.8V and 0.08A at 28V.

Part number: 130WMG.

See the official manufacturer 130 Series specification sheet for manufacturer technical data

Compatibility and Fitment

Check the cutout size, panel thickness, cable path and reverse circuit before ordering. Because this lamp recesses into the panel, the rear body needs enough clearance for the lamp, grommet and plug wiring behind the mounting face.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp securely in the correct rear-facing position, then test the reverse function from the towing vehicle before road use. Also protect the wiring behind the panel so it cannot rub, pinch or pull tight when the trailer flexes.

Trailer Applications

Workshops fit this LED reverse lamp to trailers, tippers, semis and service bodies that use a recessed rectangular rear lamp. It also suits replacement work where the existing lamp, grommet and plug arrangement need to match the 130 Series layout.
