Description

Overview

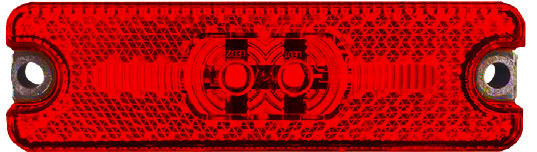

LED rear marker lamp restores red rear marker lighting on caravans, RVs, trailers and light trucks using a slim surface-mounted marker body. The integrated reflector helps cover marker and reflector requirements in one compact lamp, while the 13mm low-profile shape suits tight exterior panel positions.

Features

• Red rear marker function with integrated retro reflector.
• 13mm low-profile body suits compact exterior fit-ups.
• 9-33V operation suits common 12V and 24V electrical systems.
• Surface mount design uses common 80mm centre-to-centre fixing holes.

Specifications and Materials

The LED rear marker lamp runs on 9-33V and draws 0.8W. It uses a polycarbonate lens, surface mounting and IP67 environmental sealing for exterior marker applications.

Part number: RM70RLED.

The lamp measures 88 × 26 × 13mm and carries CTA-060900 approval reference for the red rear marker version. It belongs to the SM70 marker family with front, side and rear lens options.

Use the Whitevision SM70 technical sheet to match the reflector body, voltage and surface mount dimensions.

Compatibility and Fitment

Check the red rear marker function, 9-33V supply range, 80mm fixing centres and available panel space before ordering. Also compare the 88mm body length and 13mm depth against the existing marker position, especially on caravan and RV panels where clearance is tight.

Related Parts

Check the related SM70 Series marker lamps below against the vehicle lighting layout before ordering.

Compliance and Safety

Confirm the lamp faces the correct direction after fitting, then check mounting screws, wiring joins and sealing. If the old marker has water entry, cracked lens material or loose mounting holes, repair the panel before fitting the replacement.

Trailer Applications

Workshops fit this LED rear marker lamp during caravan lighting repairs, RV exterior upgrades, trailer body repairs and light truck marker replacements. The slim reflector body suits installs where a separate reflector would add clutter or take up extra panel space.

Why Choose ICS Trailers

ICS Trailers supplies marker lamps and trailer lighting parts for body repairs, fleet maintenance and electrical fit-ups, so you can match the lamp function, body size and mounting style before ordering.
