Description

Overview

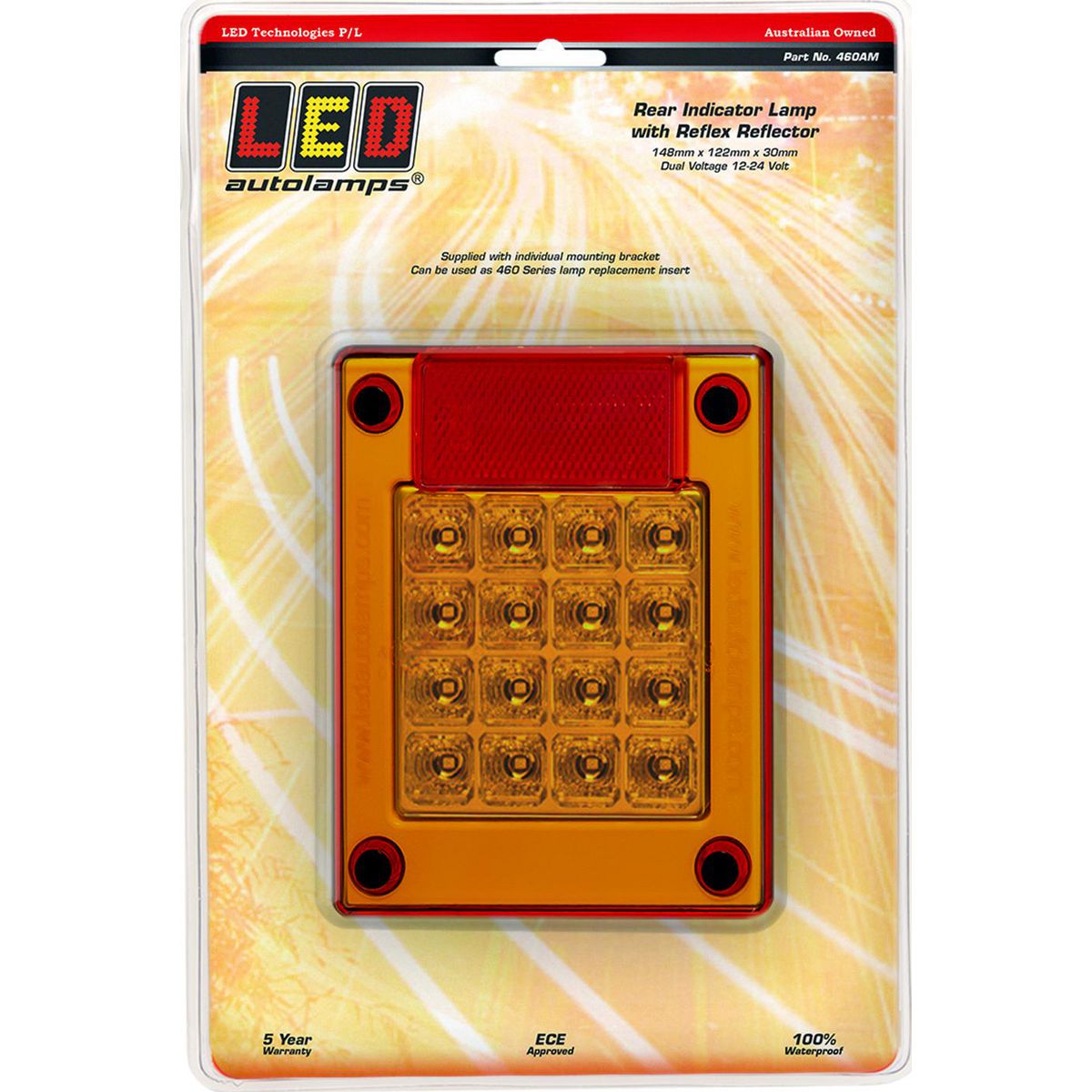

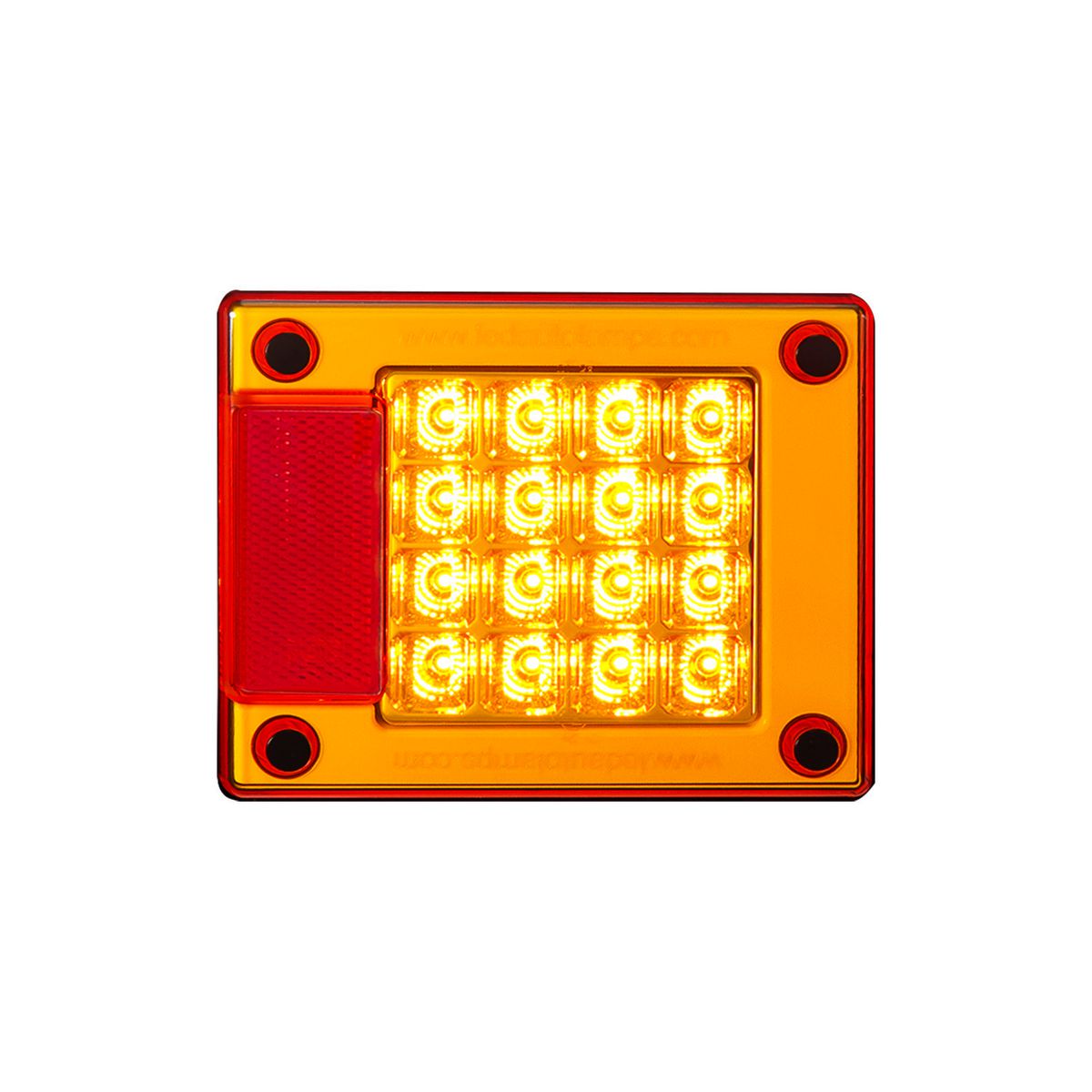

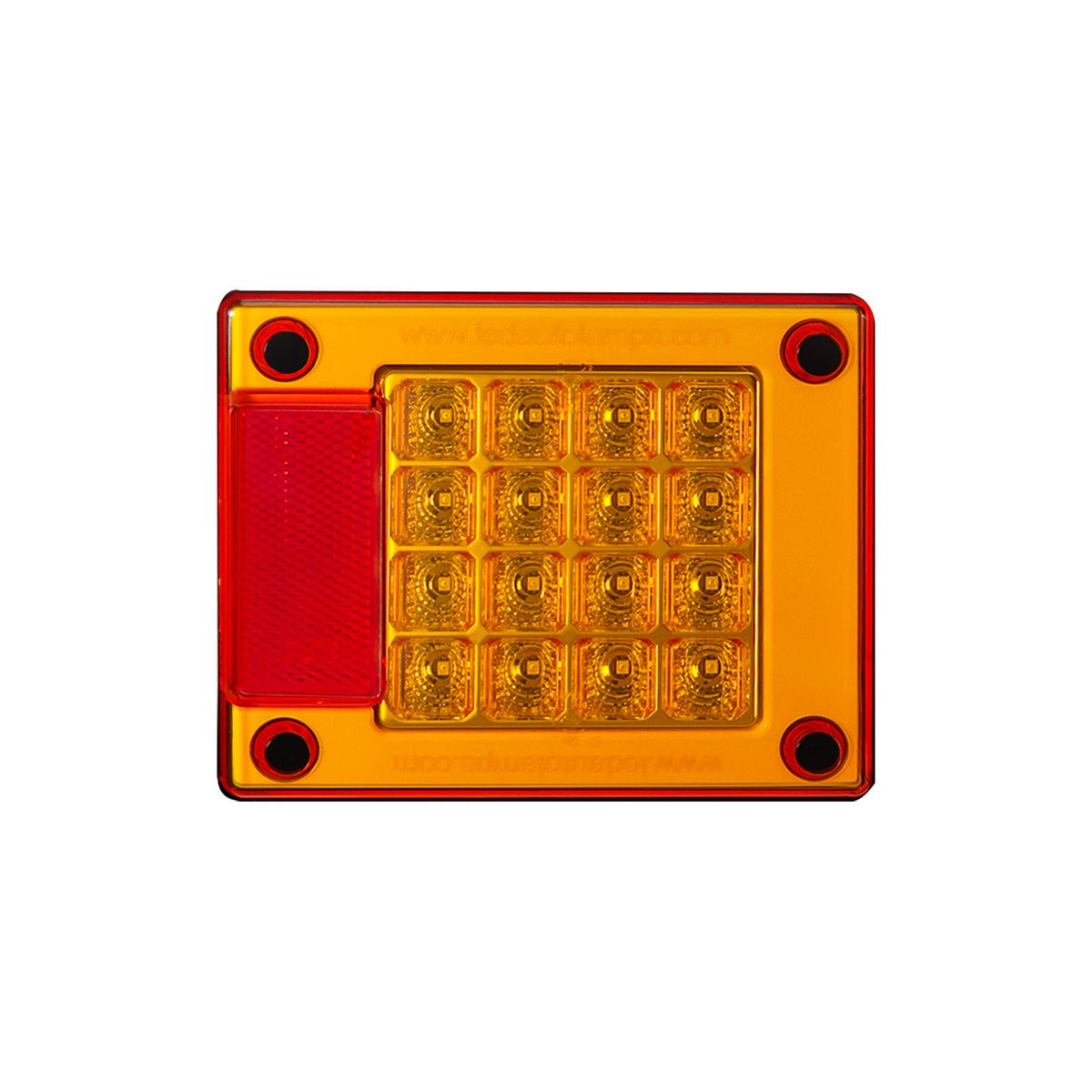

LED rear indicator lamp gives trailers, truck bodies, trays and service bodies a rear amber indicator with an inbuilt reflex reflector.

The 460 Series body suits rear lamp replacement where the indicator needs to mount as its own lamp instead of inside a full combination assembly. Also, the bracket-mounted design lets the lamp sit cleanly on a flat rear panel.

Features

• Rear amber indicator function with inbuilt reflex reflector
• 12-24V multivolt operation for trailer and truck systems
• 16 LED layout with 10cm cable
• IP67-rated PMMA lens and ABS bracket construction

Specifications and Materials

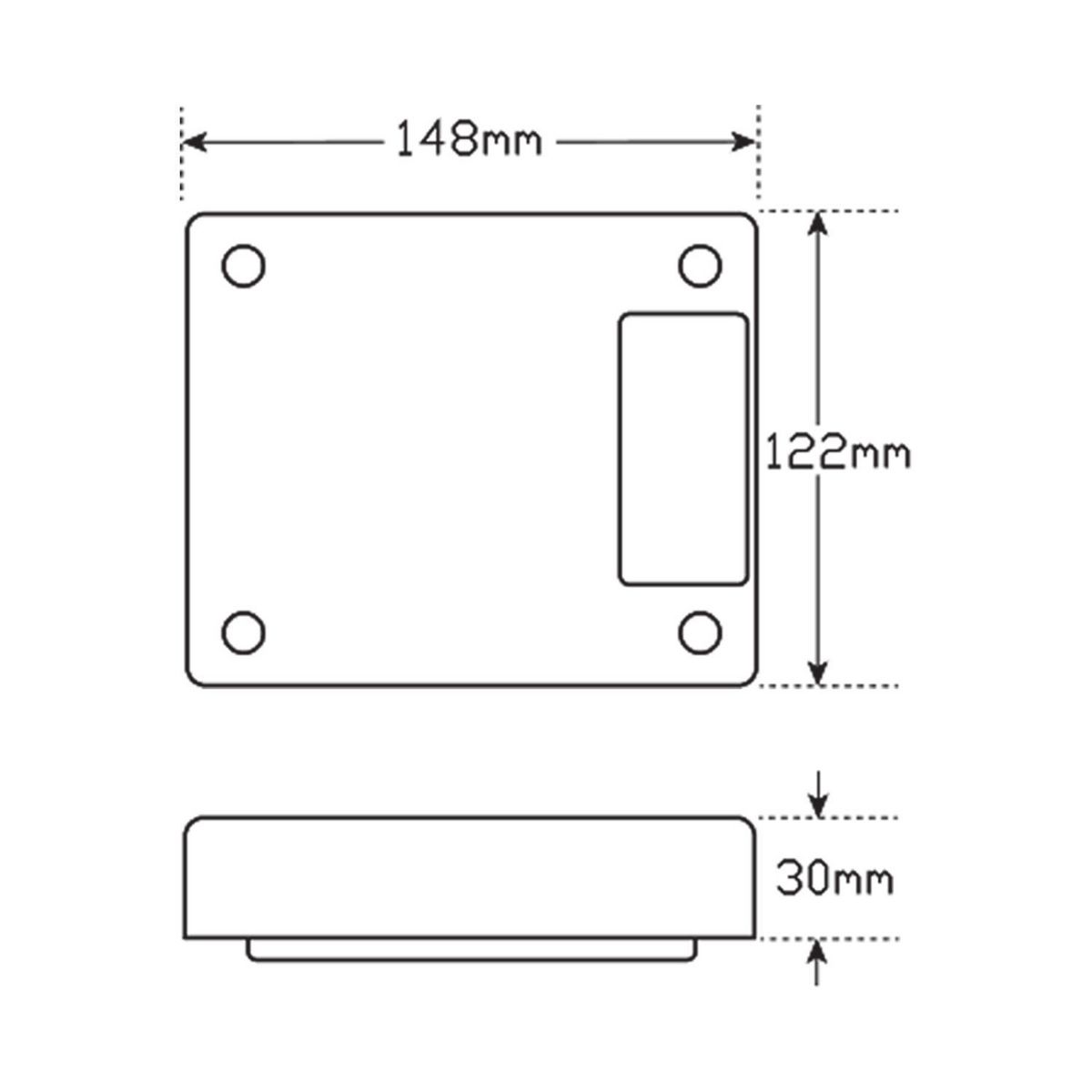

This LED rear indicator lamp measures 148mm x 122mm x 30mm and uses a 10cm cable. The lamp has 16 LEDs, a PMMA lens, an ABS bracket and a separate rear indicator function with reflector.

Part number: 460AM.

Indicator current draw is 0.32A at 13.8V and 0.18A at 28V, with ECE Indicator 2A-E9-01.6205 approval and CTA Indicator/Ref CTA-060089 approval.

See the official LED Autolamps 460 Series technical guide

Compatibility and Fitment

Check the existing rear lamp function, voltage range, mounting space and cable route before ordering. This lamp surface mounts horizontally onto a flat rear panel with the bracket, with the cable run through the mounting surface.

Use this amber rear indicator version when the trailer or body already separates stop/tail, indicator and reverse lamps. For a complete 460 Series rear layout, match the other lamp functions to the same series and mounting style.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the rear panel, bracket face and cable route before fitting the replacement lamp. If the previous lamp failed from impact, vibration or water entry, repair the mounting area before installing the new unit.

After fitting, test the indicator circuit at the vehicle and trailer plug. Then confirm the amber signal flashes clearly and the reflector remains visible in the rear lighting position.

Trailer Applications

Workshops fit this LED rear indicator lamp to trailers, truck bodies, trays and service bodies that use individually mounted rear lighting.

The 460 Series format helps when the rear panel has enough room for separate lamps but still needs a clean matching lamp family across stop/tail, indicator and reverse functions.

Why Choose ICS Trailers

ICS Trailers supplies rear indicator lamps for trailer repair, rewiring and body fit-out work. Match the voltage, rear lamp function, bracket style and panel space before ordering.
