Description

Overview

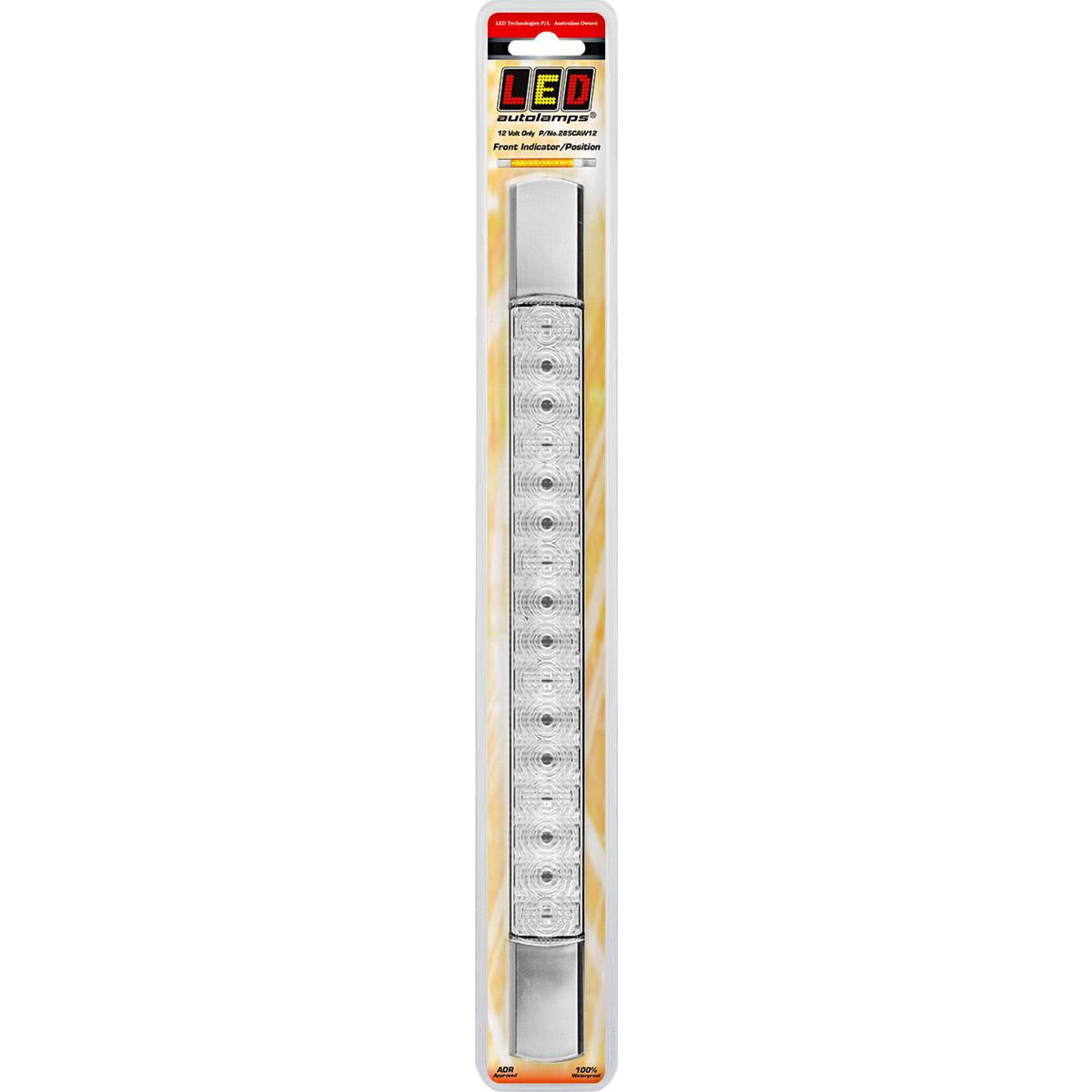

12V slimline indicator lamp supports front vehicle and trailer-body lighting where amber indicator and white position functions need one low-profile lamp.

The 285 Series body suits narrow front panels, bullbar-style mounts and body fit-out work where a larger lamp would take too much space. Also, the chrome end caps give the lamp a cleaner finish on exposed mounting faces.

Features

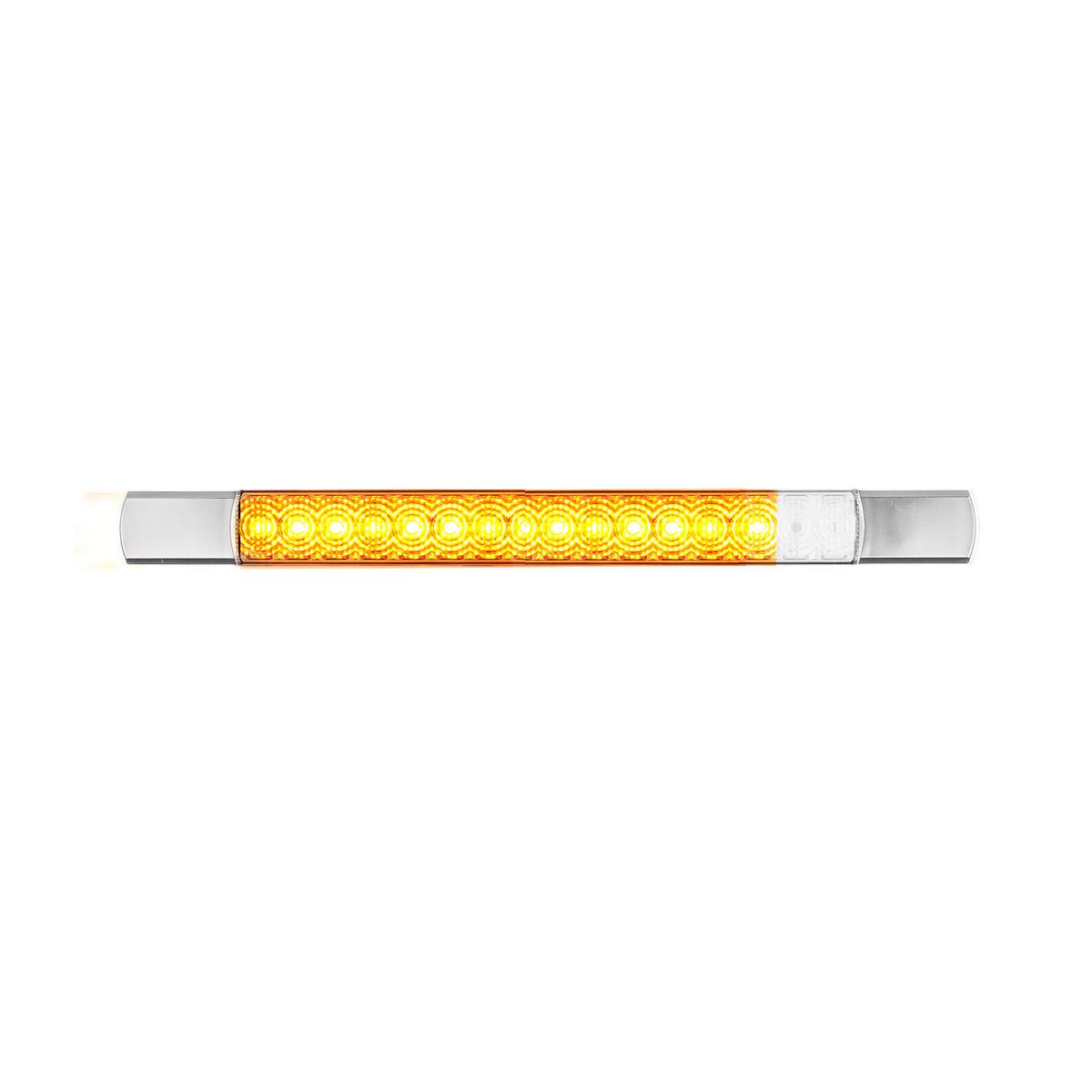

• Combined front indicator and front position functions
• 12V operation with 16 LED output
• Low-profile 285mm x 25mm x 10mm body
• IP67-rated surface-mount design with chrome end caps

Specifications and Materials

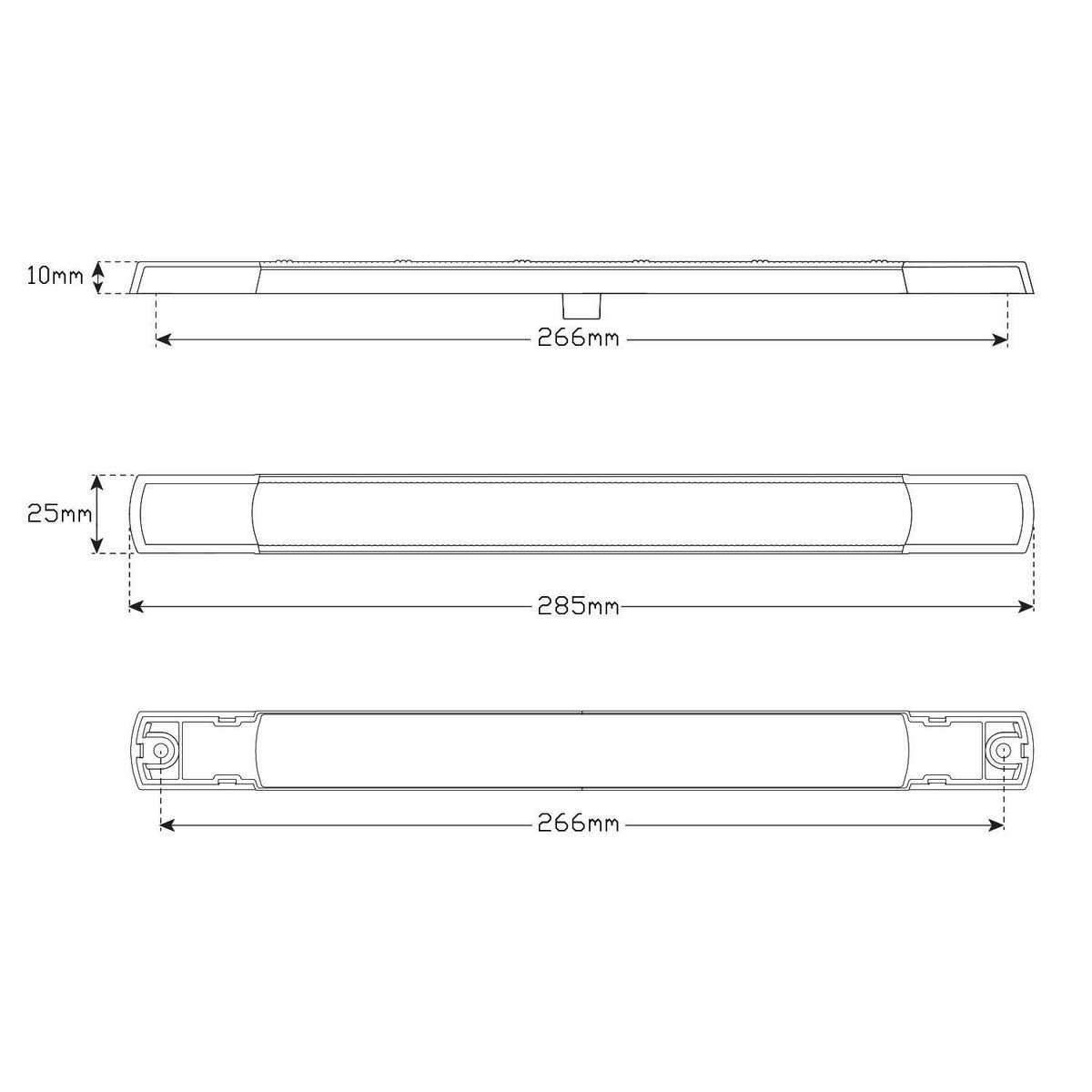

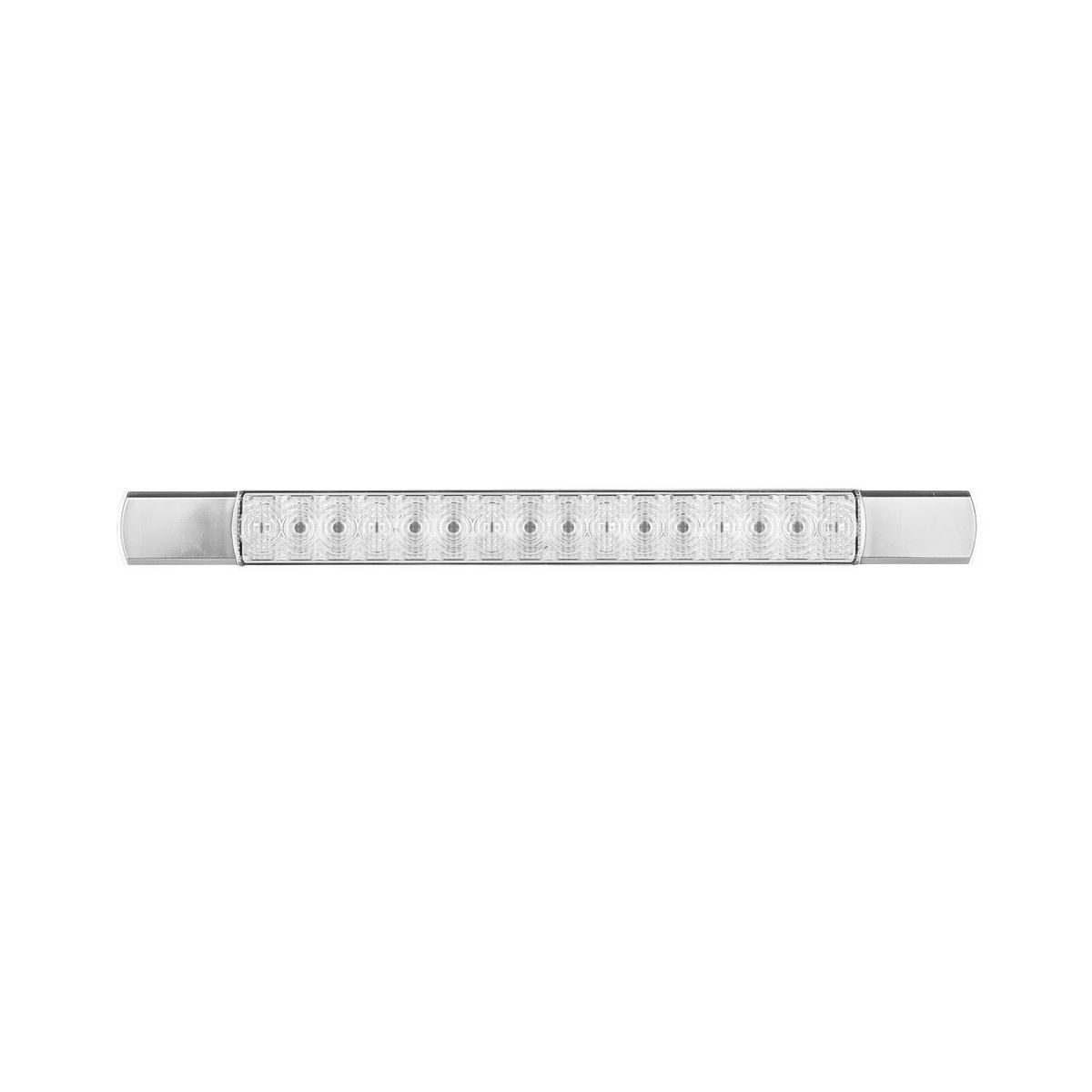

This front indicator and position lamp measures 285mm x 25mm x 10mm and uses an 8.5cm cable. The lamp has 16 LEDs, a slim surface-mount body and chrome end caps.

Part number: 285CAW12.

Current draw at 13.8V is 0.20A for the indicator function and 0.03A for the marker function. ADR approvals cover 6/00 Cat1 and 49/00 categories.

See the official LED Autolamps 285 Series technical guide

Compatibility and Fitment

Check the voltage, mounting direction, available panel length and lamp function before ordering. This 12V slimline indicator lamp suits front lighting positions where the existing fitment matches the 285 Series layout.

Remove the end caps, screw the lamp to a flat surface, then refit the caps once the wiring and body position are secure. Use horizontal mounting only for this front indicator and position version.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the mounting surface, screw points and cable path before fitting the lamp. If the old lamp failed from vibration, impact or water entry, repair the mounting area before installing the replacement.

After fitting, test the indicator and position circuits separately. Then check that the lamp sits firmly and remains visible from the correct front lighting position.

Trailer Applications

Workshops fit this lamp to tow vehicles, trays, service bodies and trailer-body builds that need a slim front-facing lighting assembly.

The narrow 285mm strip format helps when the front panel has limited height but still needs indicator and position light output in one unit.

Why Choose ICS Trailers

ICS Trailers supplies slim LED lighting for trailer repair, rewiring and body fit-out work. Match the voltage, front lighting function, mounting direction and available panel space before ordering.
