Description

Overview

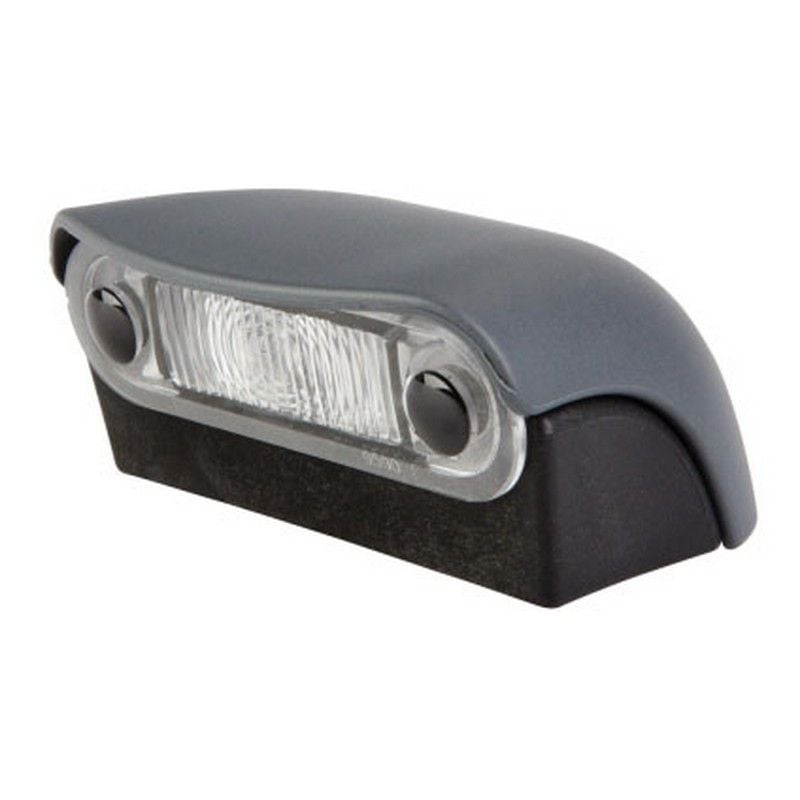

LED licence plate lamp supports trailer number plate lighting where a sealed surface mount lamp needs to run on 12V or 24V systems. The compact housing carries white LED illumination across the registration plate area, while the pre-wired cable helps keep installation straightforward on trailer rear frames, guards and number plate brackets.

Features

• White LED number plate illumination for trailer registration plate lighting.
• Multivolt operation suits both 12V and 24V electrical systems.
• Completely sealed body helps resist high pressure washing and temporary submersion.
• Pre-wired with 0.5m of multi-core cable for direct electrical connection.

Specifications and Materials

This LED licence plate lamp uses a black surface mount housing with reverse polarity protection, IP 6K6 dust and high pressure water jet resistance, and IP 6K7 temporary immersion resistance.

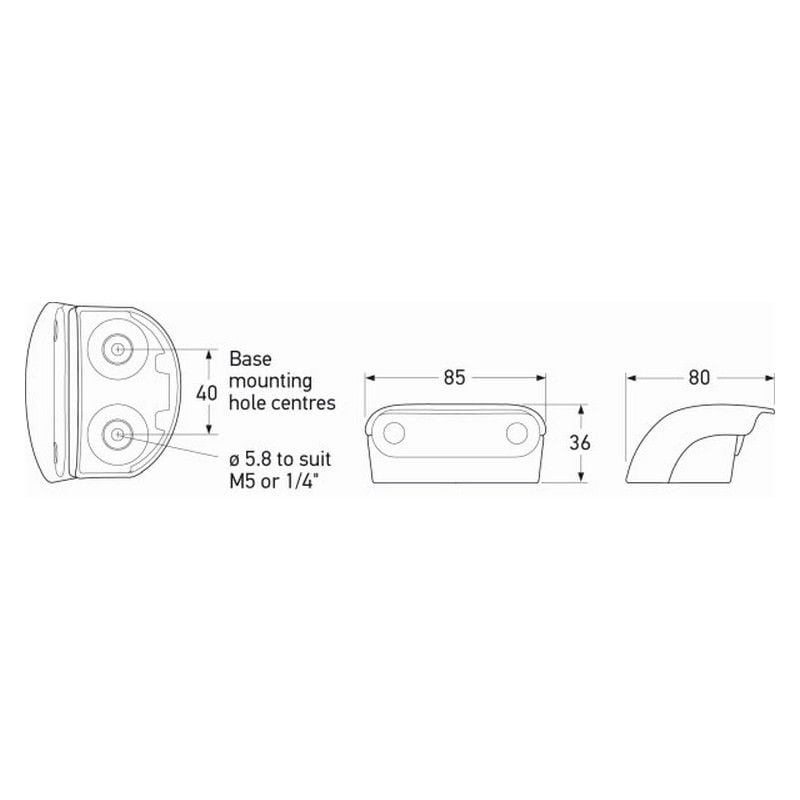

The lamp measures 85mm wide, 80mm deep and 36mm high, with 40mm base mounting hole centres and 5.8mm mounting holes to suit M5 or 1/4″ fasteners.

Part number: 2559.

See the HELLA LED number plate lamp technical details for product specifications.

Compatibility and Fitment

Match the mounting hole centres, cable route and number plate position before ordering. For compliance, mount the lamp so it illuminates the registration plate surface correctly and does not leave the cable exposed to sharp metal edges.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2KA 959 640-341, 2KA959640341

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Install the lamp against ADR number plate lighting requirements for the trailer application. Also, solder and heat shrink electrical joins where possible, then protect the lamp circuit with the correct fuse rating for the wiring setup.

Trailer Applications

Workshops fit this LED licence plate lamp to trailer rear frames, boat trailers, caravans, horse floats, commercial trailers and replacement number plate light assemblies. Because it handles 12V and 24V systems, it also suits mixed fleet maintenance where trailers may move between different towing vehicles.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
