Description

Overview

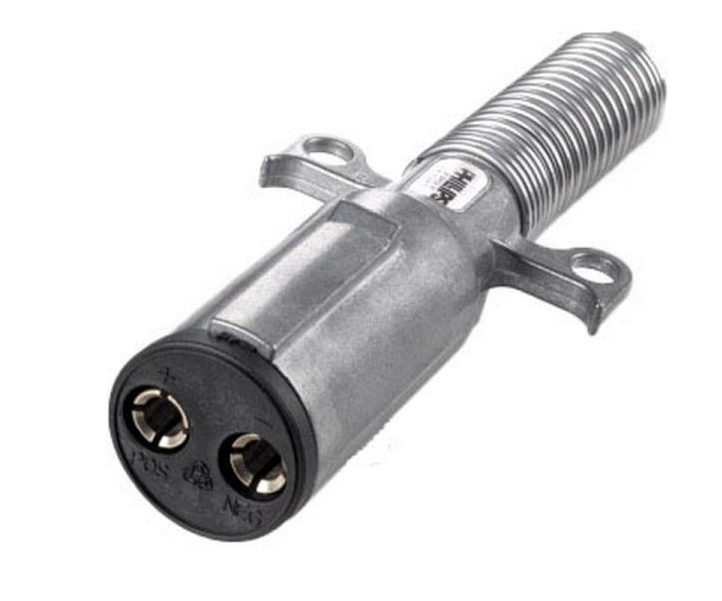

2 pole trailer plug carries high current auxiliary power through a separate trailer connection, away from the main lighting circuit. Hella builds this 200A plug for heavy current draw requirements where a standard trailer lighting plug cannot handle the load.

Features

• Rated to 200A at 12V for high current trailer power connections.
• Compatible with SAE J560B 2-pole connector setups.
• Operates independently of the lighting circuit.
• Plug body suits matching 2-pole trailer socket connections.

Specifications and Materials

This 2 pole trailer plug uses a round 2-pole connection layout and matches heavy duty trailer auxiliary power applications. The manufacturer sketch lists 110mm overall length, 76mm body width and 43mm connector face width for the plug assembly.

Part number: 4940.

See the HELLA trailer power connection technical data for compatible connector details

Compatibility and Fitment

Match the plug to a compatible SAE J560B 2-pole socket before ordering. Also check cable size, current draw, plug clearance and socket position so the connection can handle the trailer auxiliary circuit safely.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 8JA 905 394-001, 8JA905394001, 905.394-001, 905394001

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the circuit load before fitting, then use cable and terminations rated for the application. Because high current trailer circuits can generate heat under poor connection conditions, inspect the plug face, terminals and cable strain relief during regular trailer servicing.

Trailer Applications

Workshops fit this 2 pole trailer plug where trailers need a dedicated high current power connection. It suits heavy vehicle towing setups, auxiliary power feeds and trailer electrical repairs that need a separate connector instead of sharing the lighting plug.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies trailer electrical parts for repairs, upgrades and workshop fit-outs. Match the current rating, connector type and mating socket before fitting this 2 pole trailer plug to the trailer circuit.
