LED Combination Trailer Lamp 9-33V

Allan Davis on 20/05/2026

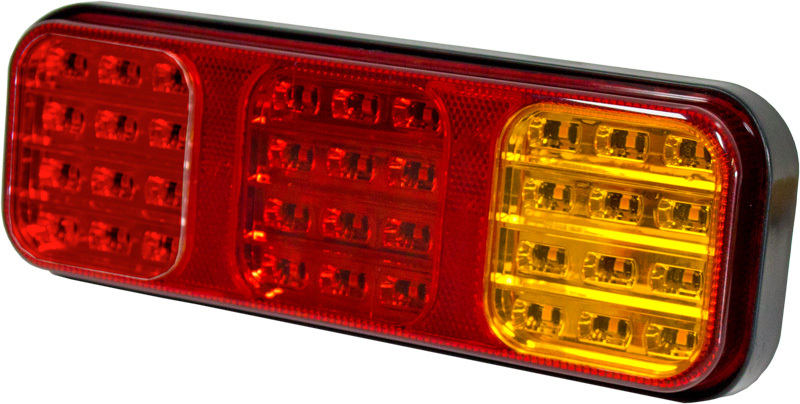

LED combination trailer lamp with stop tail indicator and reflector lens

LED Combination Trailer Lamp 9-33V

$70.00

LED combination trailer lamp for 9-33V rear signalling, with stop, tail, indicator and reflex reflector functions, IP67 sealing, polycarbonate lens and heavy duty Smart Clip base for surface-mounted trailer and commercial vehicle lighting.

Part number CRL280LED.

Quick Quote

SKU: CRL280LED Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

LED combination trailer lamp handles stop, tail, indicator and reflex reflector functions in one rear lighting unit. It suits trailer and commercial vehicle fit-outs that need a 9-33V lamp with a sealed body, wide voltage range and heavy duty Smart Clip mounting base.

Features

  • Stop, rear position, direction indicator and reflex reflector functions
  • 9-33V DC Varivolt range suits mixed trailer and vehicle electrical systems
  • IP67 sealed construction supports exposed rear trailer mounting
  • Heavy duty Smart Clip base gives installers multiple mounting options

Specifications and Materials

This LED combination trailer lamp uses a polycarbonate lens and a heavy duty Smart Clip base. It measures 284 x 100 x 37mm, with 116mm or 195mm mounting centre options. Power ratings are 3W stop, 0.5W rear position and 3W indicator.

Part number: CRL280LED.

Use the Whitevision 280 Series technical details when checking the manufacturer product family.

Compatibility and Fitment

Match this lamp to 9-33V trailer wiring and confirm the available mounting centres before ordering. Also check whether the job needs the standard stop, tail and indicator version, or the related reverse and Deutsch connector variants.

Related Parts

Check the related versions below against the trailer setup before ordering.

Use Part number Part type
Related package CRL280LEDB Stop tail indicator blister pack
Related connector version CRL280LEDDT Stop tail indicator with Deutsch
Reverse version CRL280RLED Stop tail indicator reverse lamp
Reverse connector version CRL280RLEDDT Reverse lamp with Deutsch
Reverse blister version CRL280RLEDB Reverse lamp blister pack
Reverse blister DT version CRL280RLEDDTB Reverse blister with Deutsch



Compliance and Safety

The lamp supports ADR-compliant rear lighting when installed in the correct position and wired correctly. Before fitting, inspect the mounting panel, wiring entry and sealing points so the body sits flat and the cable path avoids sharp edges.

Trailer Applications

Trailers, rigid bodies, buses, coaches and custom commercial builds use this lamp style for compact rear signalling. Because the LED combination trailer lamp combines several rear lighting functions in one housing, it helps keep the rear corner tidy without adding separate stop, tail and indicator lamps.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repair work, refits and new body builds, so buyers can match the voltage, mounting style and lamp functions before fitting. For more trailer lighting options, browse the ICS Trailers LED Lights category
