Description

Overview

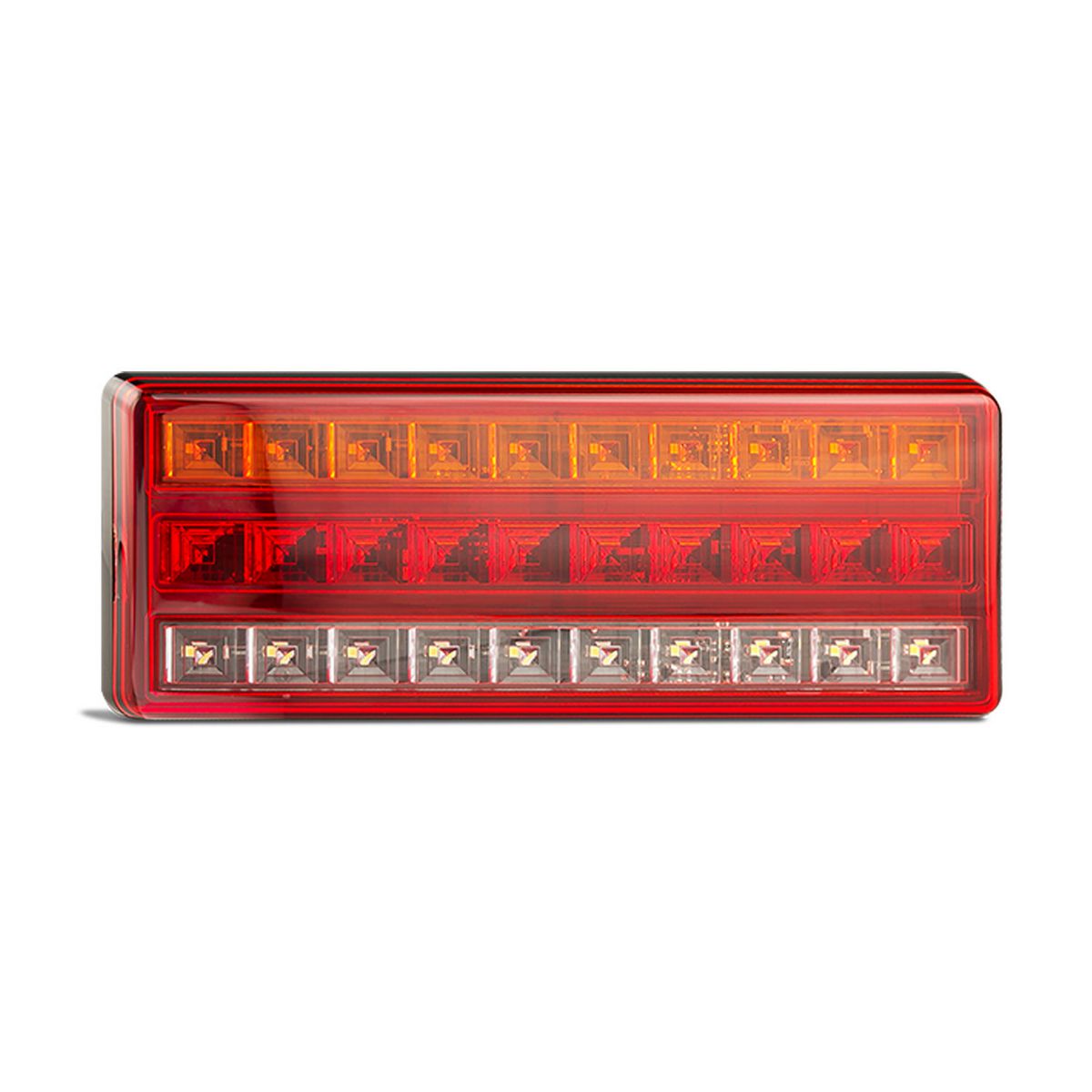

LED combination lamp handles stop, tail, indicator and reverse functions in one slim rear lamp body. The 275 Series format suits trailer, tray and small truck rear panels where one compact lamp needs to cover the main rear signalling functions.

Features

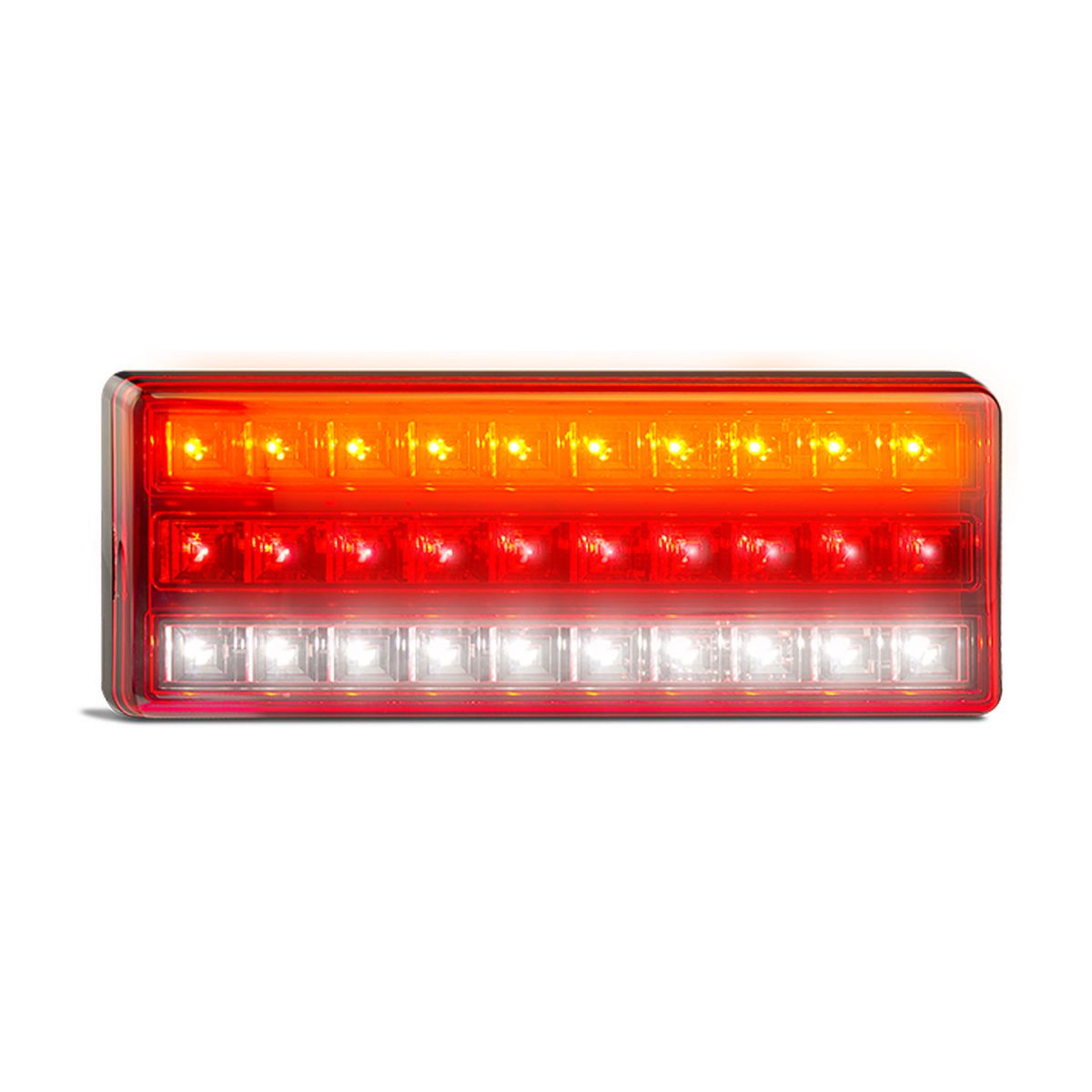

• Stop, tail, indicator and reverse functions in one rear lamp
• 12-24V operation for compatible trailer and vehicle systems
• Low-profile body for bolt mounting to a flat rear surface
• IP67 rating with ECE and CTA approval data

Specifications and Materials

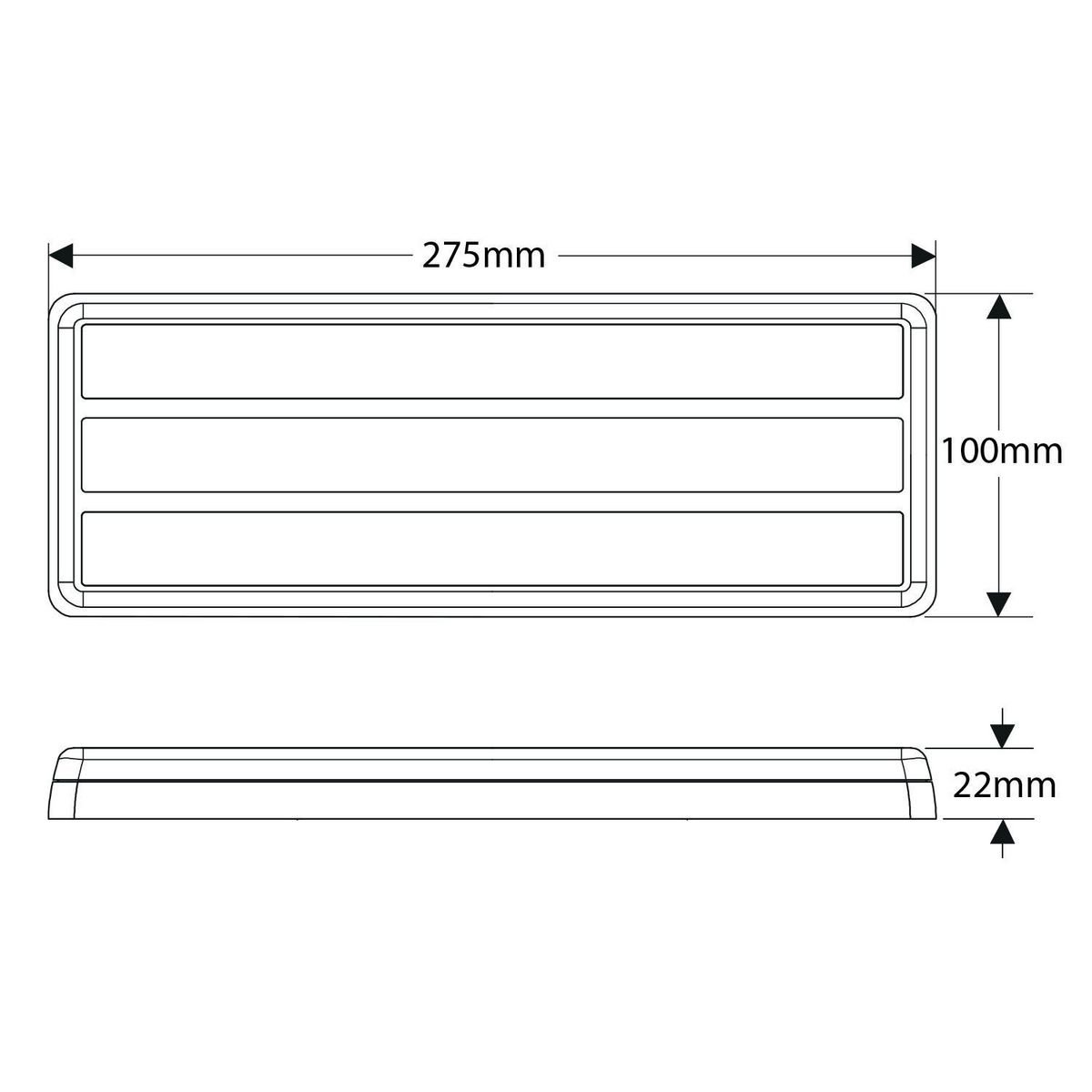

The LED combination lamp measures 275mm x 100mm x 22mm and uses 30 LEDs. It carries a hardened acrylic lens, ABS base and 30cm sheathed cable, with current draw listed across stop, tail, indicator and reverse functions.

Part number: 275ARWM.

View the LED Autolamps 275 Series technical guide

Compatibility and Fitment

Check the mounting space, voltage system, cable route and rear lamp function layout before ordering. Mount the lamp horizontally on a flat surface with the indicator at the top, then run the cable through the rear fixing surface.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Secure the lamp with the rear bolts, then test stop, tail, indicator and reverse operation from the towing vehicle. Also protect the cable where it passes through the panel so vibration cannot rub the sheath against a sharp edge.

Trailer Applications

Workshops fit this LED combination lamp to small trays, truck bodies, service bodies and trailers that need a slim rear lamp with reverse lighting included. It also suits replacement work where the existing 275 Series footprint needs to match.
