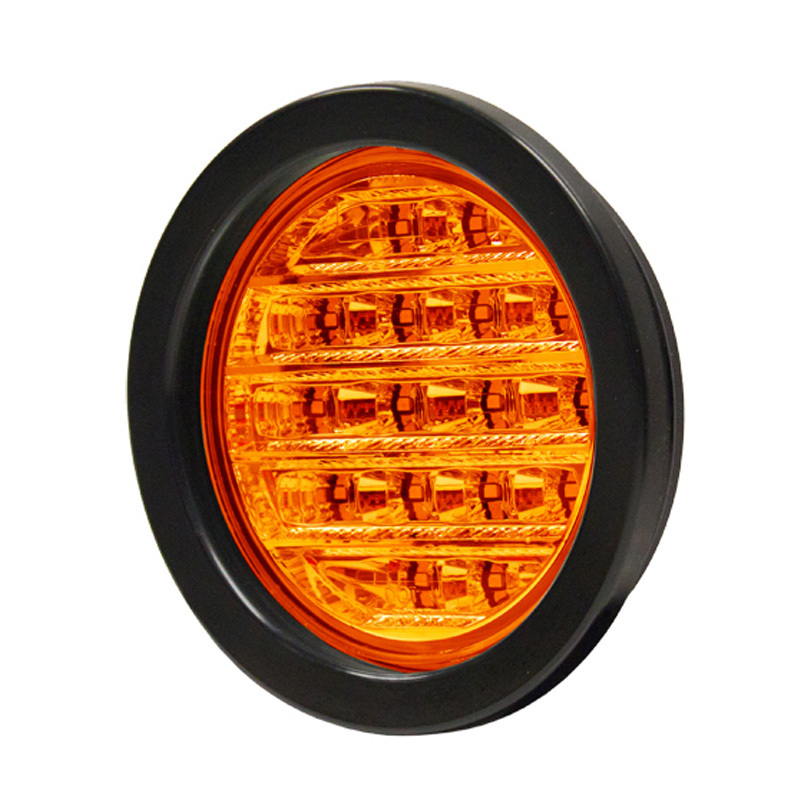

LED Amber Indicator Lamp With Grommet 400 Series
LED Amber Indicator Lamp With Grommet 400 Series
$30.00
LED indicator lamp with grommet for trailer and commercial vehicle rear signalling, with 9-33V operation, 2W indicator output, 0.5m cable, IP68 sealing, rubber insert mounting and 110mm insert diameter for retrofit fit-ups.
Part number RL400DG.
Description
Overview
LED indicator lamp with grommet restores the rear direction indicator function on trailers, trucks and commercial vehicles using 4″ round rubber-mounted signal lamps. The amber lens and grommet insert suit retrofit work where vibration resistance and a round lamp footprint matter.
Features
- Amber rear direction indicator function with 2W LED output.
- 9-33V DC Varivolt® operation suits common 12V and 24V systems.
- Includes rubber grommet insert for front-mounted fitment.
- IP68 hermetic sealing helps protect the lamp in wet and dusty service conditions.
Specifications and Materials
The LED indicator lamp with grommet uses free-form optics, an amber lens, ABS body and 0.5m twin core sheathed cable. It has a 110mm insert diameter and 140mm overall diameter, so check the existing cut-out and outer lamp space before ordering.
Part number: RL400DG.
The lamp carries rear direction indicator ADR compliance under 6/00 Cat2a and CRN 47517. It also carries CTA-060509 approval reference for the 400 Series amber indicator variant.
Use the Whitevision RL400 technical sheet when matching the 400 Series insert size and grommet system.
Compatibility and Fitment
Match the 110mm insert diameter, 140mm overall diameter, 9-33V supply range and 0.5m cable length before ordering. Also inspect the mounting opening, because the rubber grommet needs a clean seat to hold the lamp firmly under vibration.
Related Parts
Check the related 400 Series lamps and grommet parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | RL400DCG | Clear lens indicator lamp with grommet |
| Companion lamp | RL400SG | Red stop/tail lamp with grommet |
| Companion lamp | RL400RG | Clear reverse lamp with grommet |
| Spare grommet | WV400G | Rubber grommet suit |
| Related assembly | CRL350LED | Combo stop/tail/flasher lamp |
| Related assembly | CRL350RLED | Combo stop/tail/flasher/reverse lamp |
Compliance and Safety
Confirm the indicator flashes correctly after fitting, then check cable routing, grommet seating and lens condition. If the old grommet has hardened, cracked or lost grip, replace it so the lamp stays secure.
Trailer Applications
Workshops fit this LED indicator lamp with grommet during heavy trailer lighting repairs, truck body builds, rigid body work, bus and coach repairs and older round-lamp replacements. The rubber-mounted format helps when the lamp sits in a vibration-prone rear panel.
Why Choose ICS Trailers
ICS Trailers supplies lighting parts for trailer repairs, fleet maintenance and body builds, so you can match lamp function, diameter, voltage and mounting style before ordering.
Browse more LED Lights for trailer repairs.
