Jumbo Stop Tail Indicator Reverse LED Lamp 12-24V
Jumbo Stop Tail Indicator Reverse LED Lamp 12-24V
$128.00
Jumbo stop tail indicator reverse LED lamp suits 12-24V trailer rear lighting, with 72 LEDs, IP67 sealing, 1.2m cable and a 595mm body for larger rear panels.
Part number J3BARWM.
Description
Overview
Jumbo stop tail indicator reverse LED lamp restores stop, tail, indicator, reverse and reflector functions in one J3 Series rear trailer assembly. The 595mm body suits larger rear panels where a compact lamp would not cover the same mounting space or visual layout.
Features
- Stop, tail, indicator, reverse and reflector functions in one rear assembly.
- 72 LEDs across the amber, red and white lamp sections.
- 12-24V multivolt operation suits mixed trailer and vehicle fleets.
- IP67 sealing helps protect the lamp against dust and water exposure.
Specifications and Materials

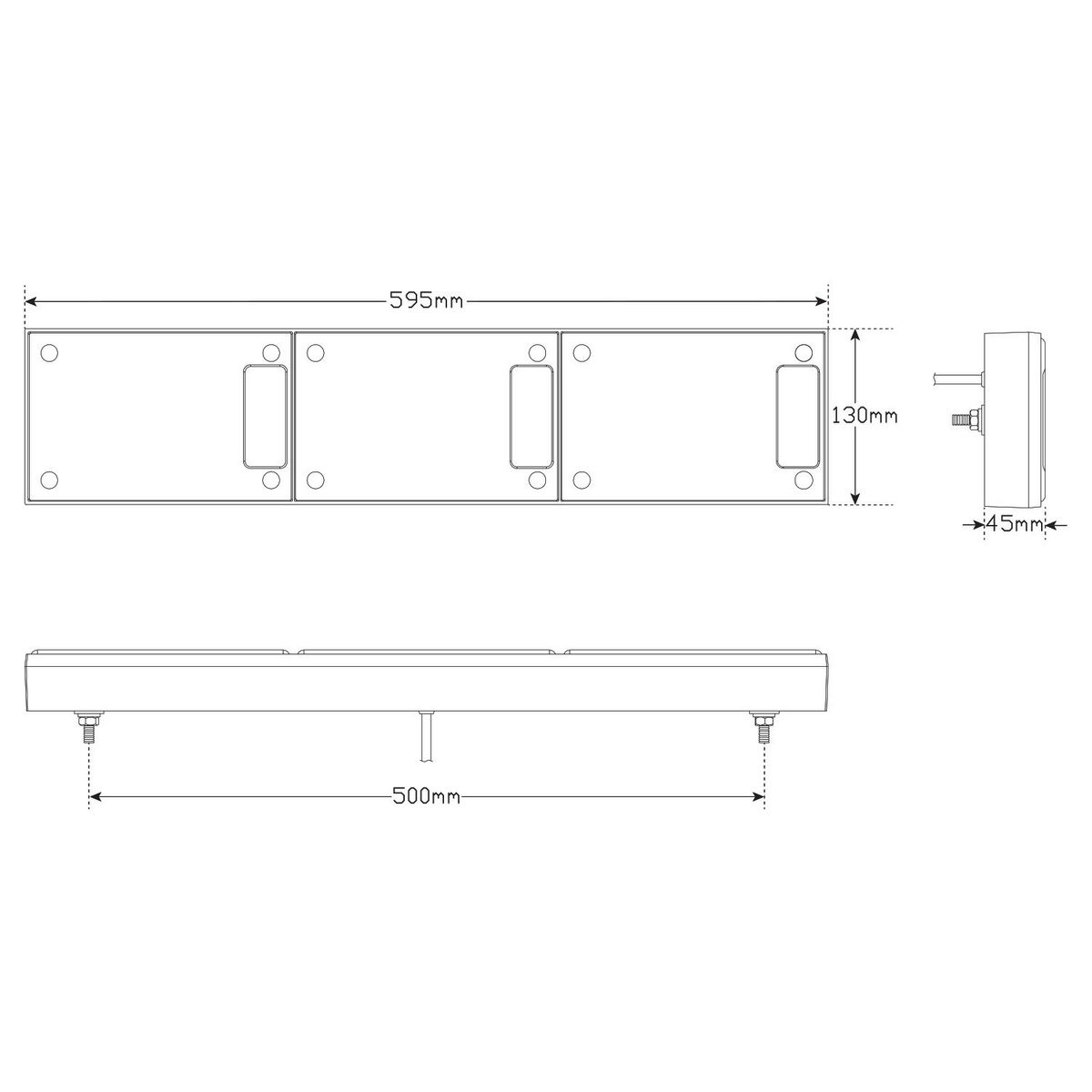

This jumbo stop tail indicator reverse LED lamp measures 595mm x 130mm x 45mm and uses a 1.2m bare-wire cable. It has a hardened acrylic lens, ABS base and current draw of 0.47A stop, 0.04A tail, 0.42A indicator and 0.18A reverse at 13.8V.
Part number: J3BARWM.
The manufacturer technical guide covers dimensions, draw and fitting details
Compatibility and Fitment
Match the J3 Series body size, rear function layout, 12-24V system and bare-wire connection before ordering. For fitting, surface mount the assembly horizontally on a flat panel with the stainless steel bolts supplied, then run the cable through a 12mm hole in the mounting surface.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Bracket to suit | J3B3B | triple black bracket |
| Replacement component | J3RM | stop tail insert |
| Replacement component | J3AM | indicator insert |
| Replacement component | J3WM | reverse insert |
| Related version | J3BARWMLCSB | left-hand CSB plug version |
| Related version | J3BARWMRCSB | right-hand CSB plug version |
| Related version | J3BARRM | stop tail indicator lamp |
Compliance and Safety
Confirm the lamp sits level, the cable has clean clearance and each rear function works before road use. Also check the mounting bolts after fitting, because a wide rear assembly can work loose if the panel surface is uneven.
Trailer Applications
Workshops fit this jumbo stop tail indicator reverse LED lamp to trailer rear bars, truck bodies, ute trays and caravan lighting repairs. It suits larger rear lighting setups where stop, tail, indicator, reverse and reflector functions need to sit together across one wide assembly.
Why Choose ICS Trailers
ICS Trailers supplies trailer lighting parts for repairers, fleets and operators who need the lamp size, function and wiring style to line up before fitting. Browse more LED Lights for trailer lighting replacements.
Online prices apply to website orders only. In-store pricing may differ.
