Description

Overview

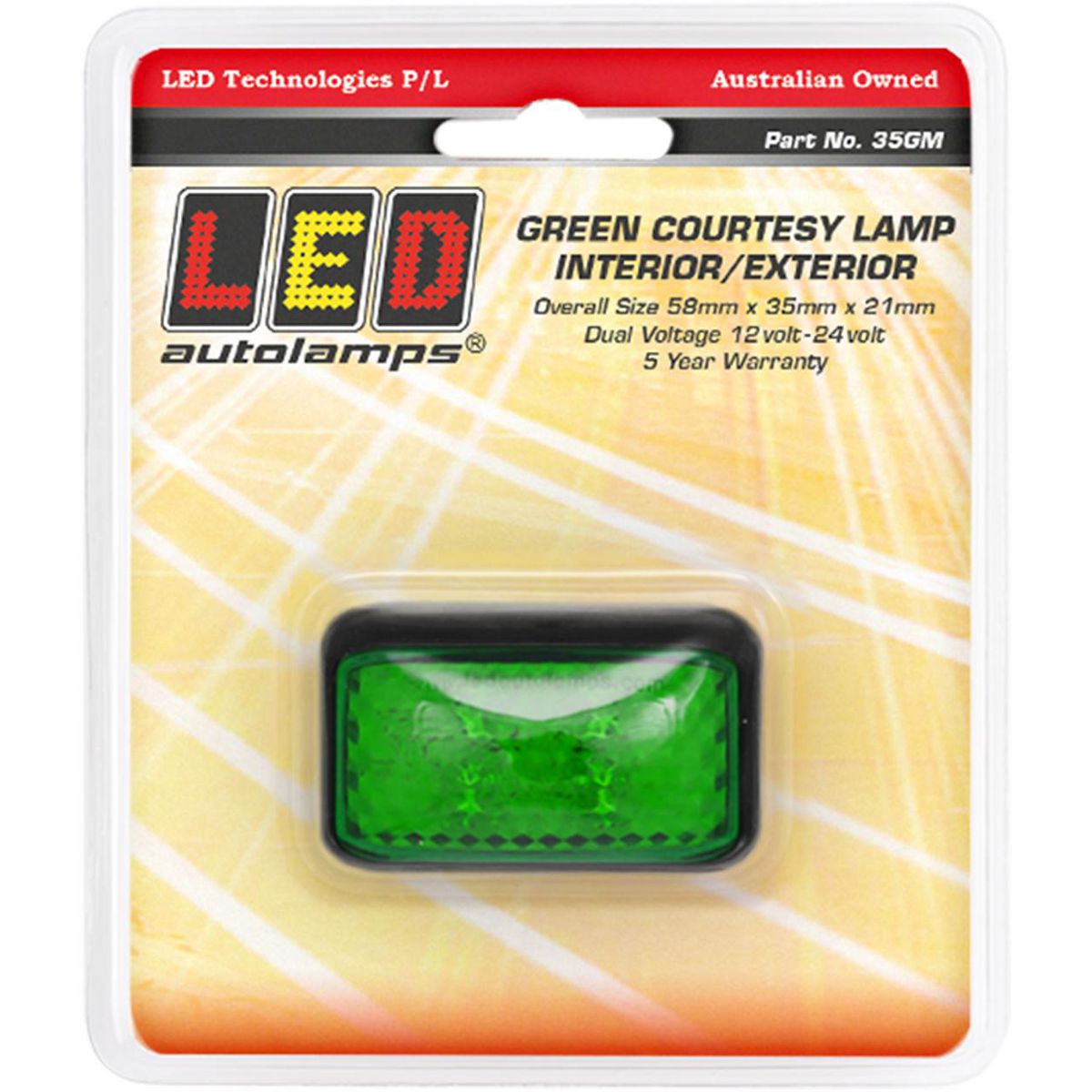

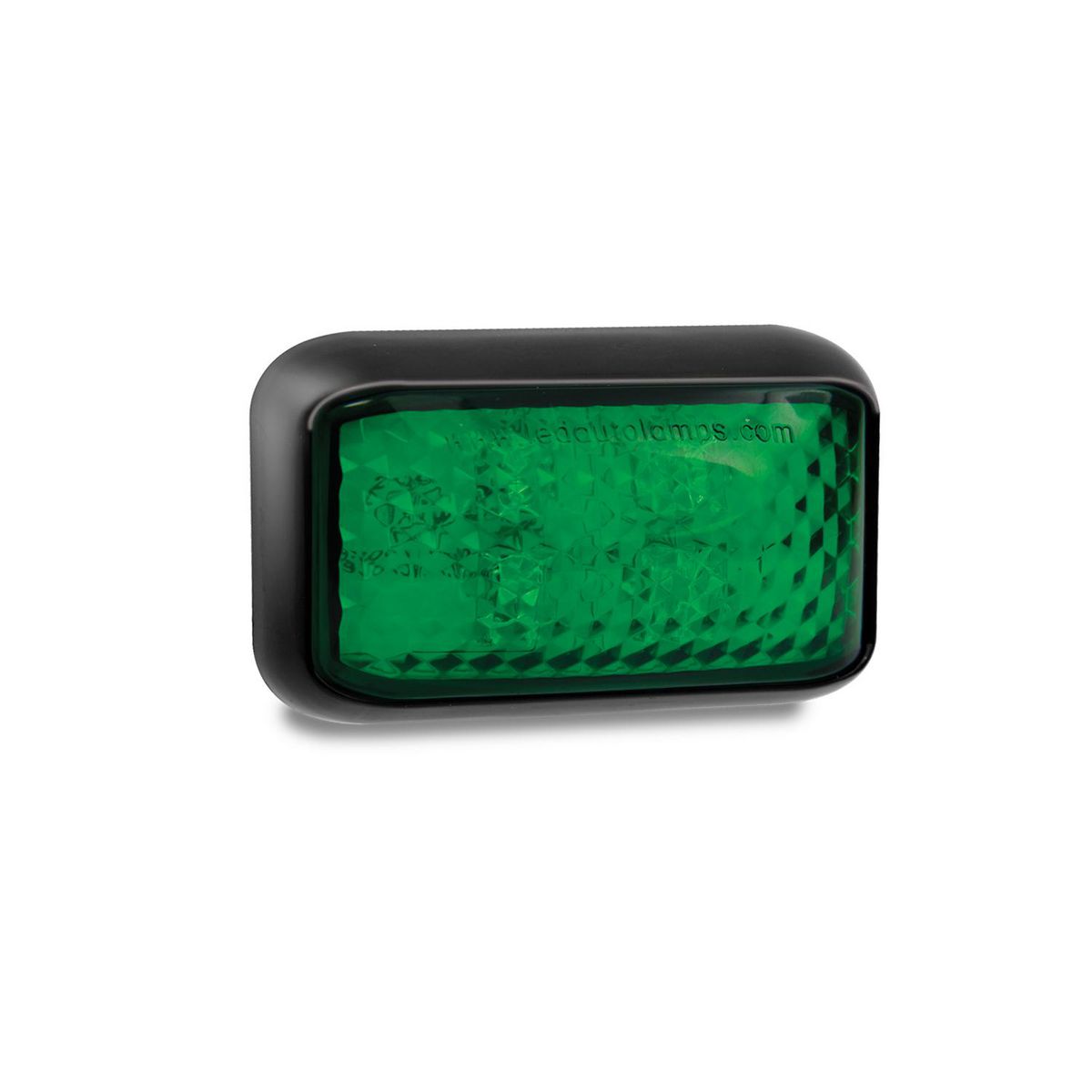

Green LED courtesy lamp adds compact coloured illumination for trailer bodies, service areas and equipment compartments. The low profile surface mount body keeps the lamp neat on flat panels, while the green lens helps separate this light from standard white work lighting.

Features

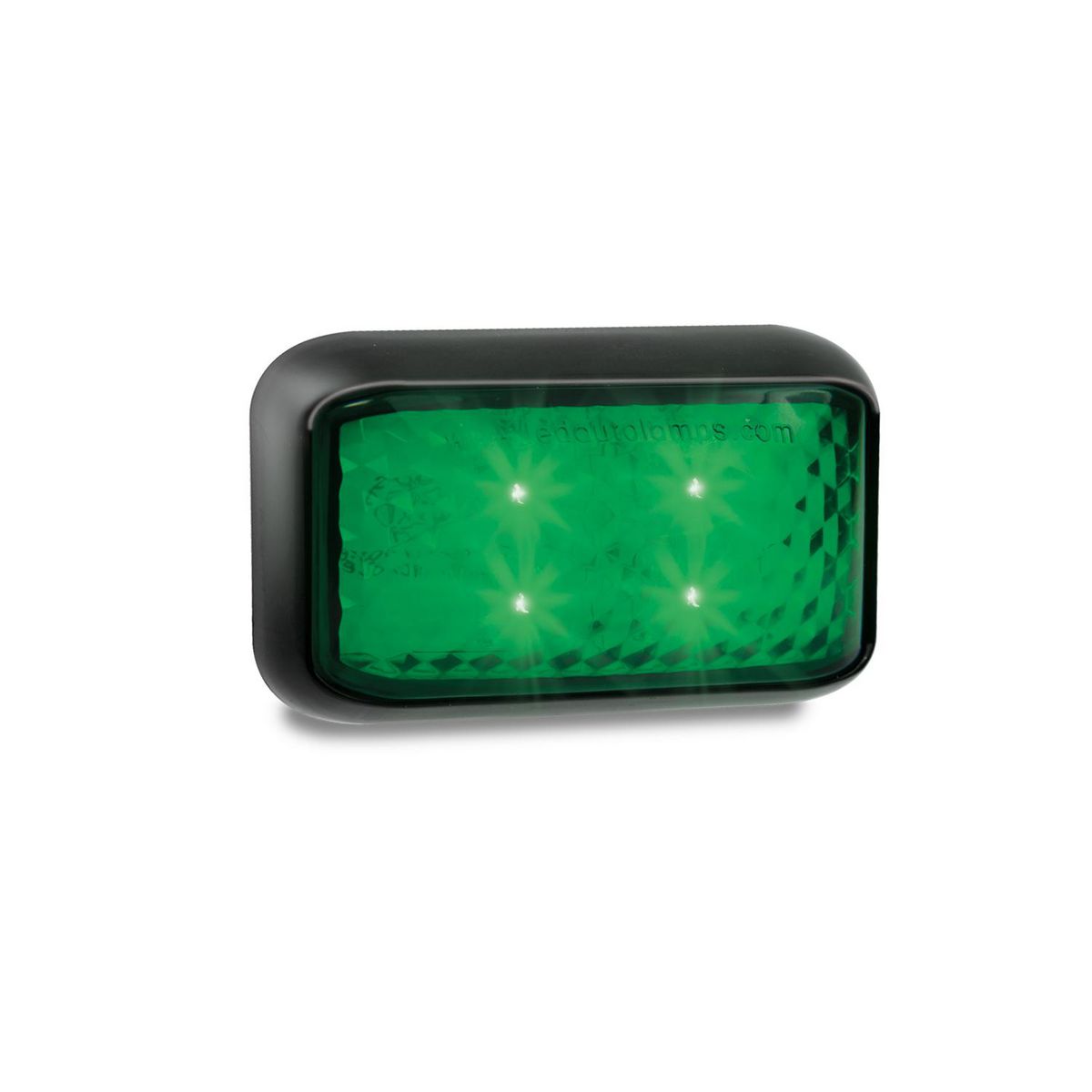

• Four green LEDs provide coloured courtesy lighting.

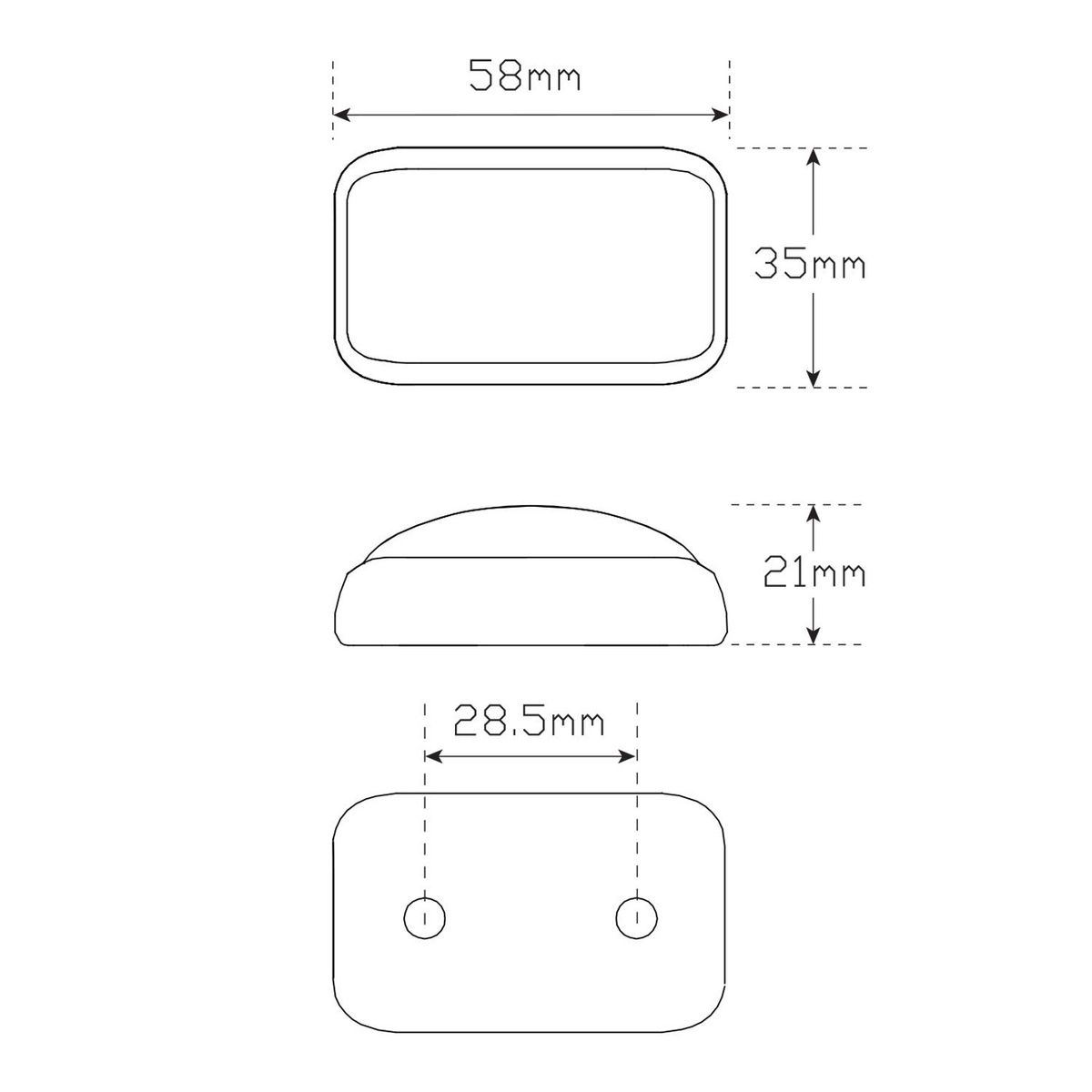

• 58mm x 35mm x 21mm body suits compact surface mounting.
• 40cm cable gives enough lead length for neat wiring through the panel.
• IP67 rating helps protect the lamp against dust and water exposure.

Specifications and Materials

This green LED courtesy lamp runs on 12V to 24V systems and carries a 5 year manufacturer warranty. Part number: 35GM. The lamp draws 0.04A at 13.8V and 0.02A at 28V, with 0.6lx illumination at 1m.

The 35 Series format uses a surface mount bracket, then the wiring runs through the rear and the lens clips into place. Use the official 35 Series technical guide for manufacturer technical detail.

Compatibility and Fitment

Check the available mounting surface, cable route and voltage before ordering. Because this lamp mounts to a flat surface with the wire passing through the back, confirm there is enough clearance behind the panel for the cable and fixing points.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Use this lamp as a courtesy or accent light, then check the full lighting layout before returning the trailer to service. Also inspect the cable path and sealing around the mounting area so the wiring stays protected from rubbing, water entry and panel movement.

Trailer Applications

Workshops fit green courtesy lamps to body steps, toolboxes, service compartments, access areas and equipment panels where coloured low current lighting suits the job. The green LED courtesy lamp also suits fleet fit outs where matching colour and lamp size matters across multiple units.

Why Choose ICS Trailers

ICS Trailers can supply this lamp with other trailer electrical parts, brackets and service hardware, so repair jobs can be matched up without splitting the order across unrelated part categories.

Browse more trailer lighting parts in LED Lights
