Front Position Indicator Lamp Black Bezel
Front Position Indicator Lamp Black Bezel
$23.00
Front position indicator lamp for 12/24V trailer and truck lighting, with black bezel, 14 LEDs, 40cm cable, IP67 sealing and concealed base mounting for a clean clip-in fit.
Part number 97WIM.
Description
Overview
Front position indicator lamp supports front outline marker lighting with a supplementary front indicator function in one compact unit. The black bezel and concealed mounting base give the lamp a clean face with no visible screw heads once clipped into place.
Features
- Twin function marker and supplementary indicator lamp
- 12-24V multivolt operation for trailer and truck systems
- Black bezel with concealed base mount and clip-in lamp body
- IP67 rated housing with acrylic lens and PC/ABS base
Specifications and Materials

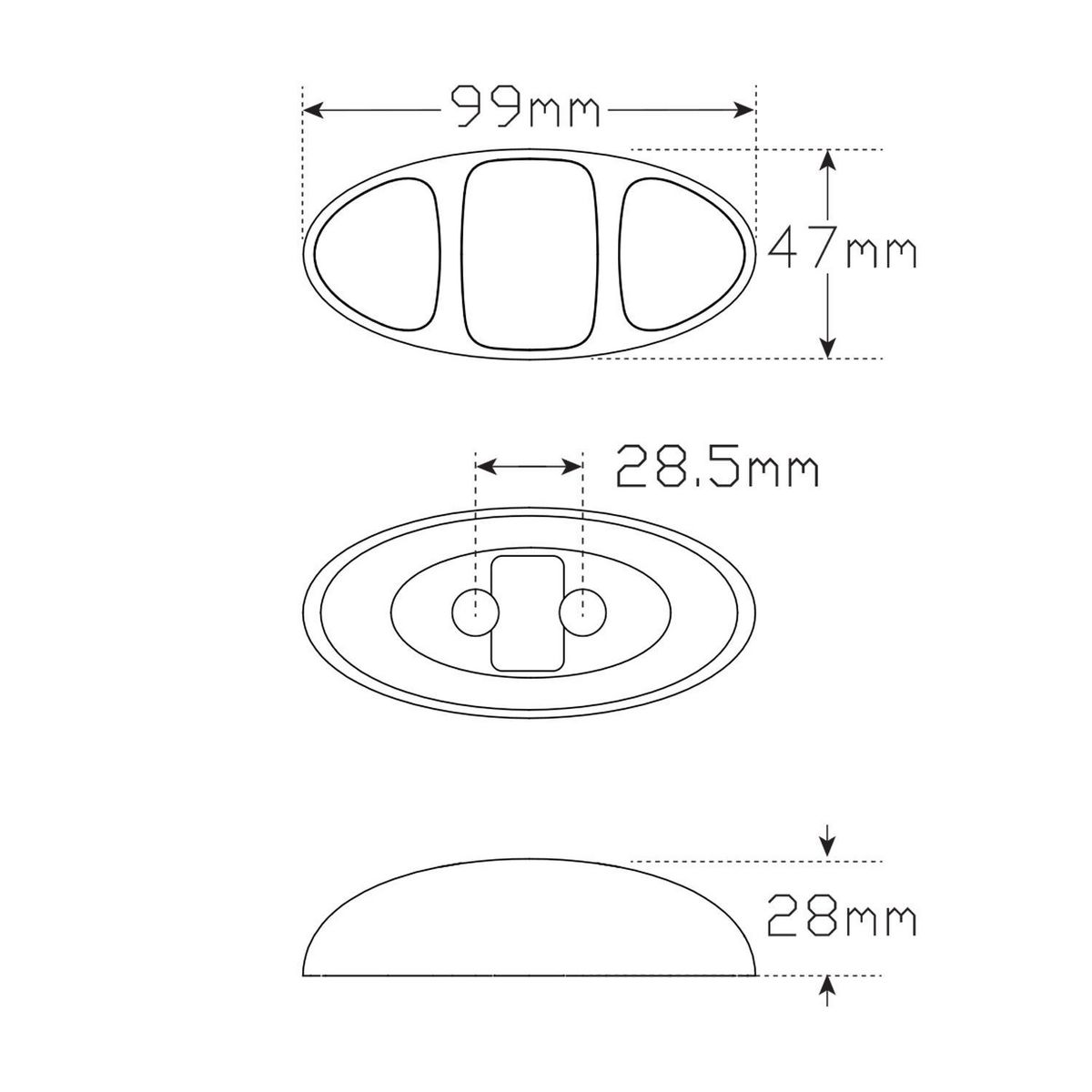

This front marker and supplementary indicator lamp measures 99mm x 47mm x 28mm and uses a 40cm cable. It carries 14 LEDs, an acrylic lens and a PC/ABS base and bezel.
Part number: 97WIM.
Current draw is 0.06A on the marker circuit and 0.06A on the indicator circuit at both 13.8V and 28V. The 97 Series front function carries ECE Front End E9*7R02/27*23716*00 and CTA Front End 49/00 CTA-060118 approval details.
See the manufacturer technical guide
Compatibility and Fitment
Check the front marker position, indicator wiring and mounting space before ordering. Drill a 10mm hole for the wire and plug, surface mount the base with the supplied screws, then clip the lamp into place.
Related Parts
Check the related versions below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 97WIMB | Bulk front marker indicator lamp |
| Related version | 97WIMCSB | CSB plug front marker indicator lamp |
| Related version | 97CWIM | Chrome bezel front marker indicator lamp |
| Replacement component | 97BB | Black bezel |
| Bracket to suit | 97BKT | Black rail bracket with reflector |
Compliance and Safety
Confirm the marker and supplementary indicator circuits operate correctly after installation. Also check the lamp orientation, cable route and clip engagement before road use, because the base needs to sit flat and hold the lamp securely.
Trailer Applications
Workshops fit front position indicator lamp units on trailers, rigid bodies and commercial vehicle front corner lighting setups. This black bezel version suits replacement work where the front marker and supplementary indicator need to match the 97 Series footprint.
Why Choose ICS Trailers
ICS Trailers supplies trailer lighting parts for repairs, refits and fleet servicing, with practical details to help match the lamp to the job.
