Description

Overview

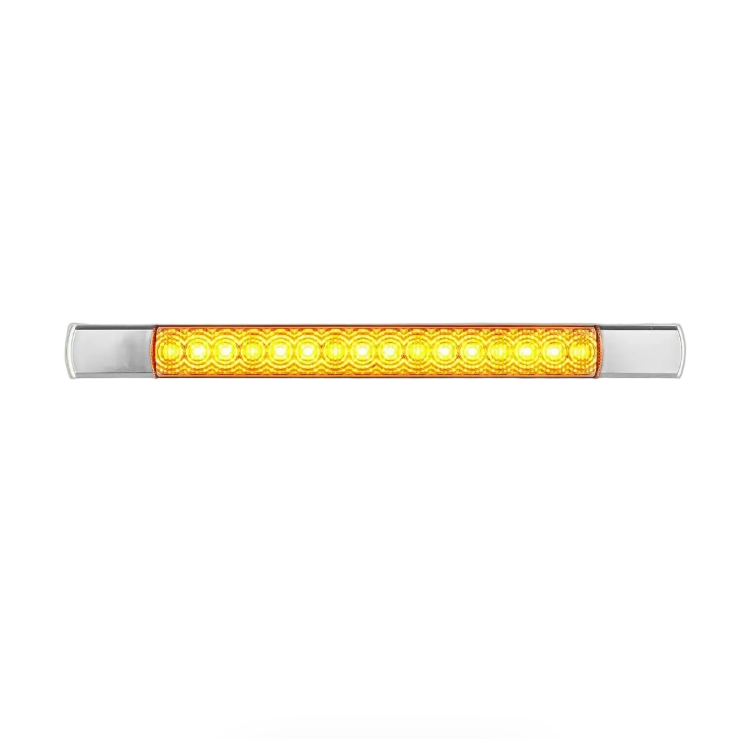

The front indicator lamp gives trailers, truck bodies and caravan fronts a slim 12V amber LED indicator in the 285 Series body. Its clear lens stays tidy when inactive, while the chrome end caps help the lamp suit polished bull bars, front panels and bodywork where the finish matters.

Features

• 12V front indicator function with 16 LEDs.
• Low-profile 285mm body suits narrow front mounting positions.

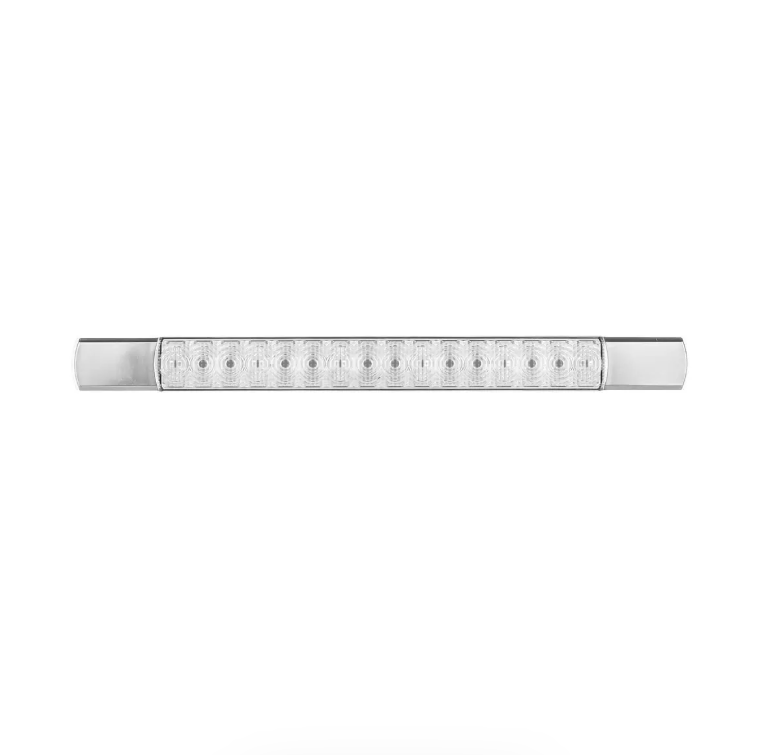

• Clear lens when inactive, with amber output when powered.
• IP67 rating supports exterior trailer and vehicle lighting work.

Specifications and Materials

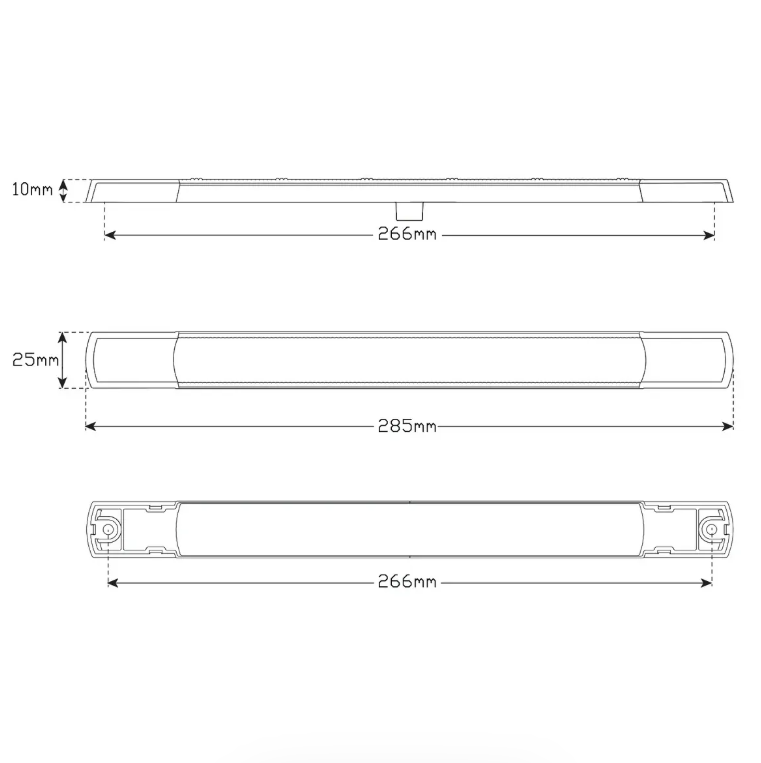

This front indicator lamp measures 285mm x 25mm x 10mm and includes an 85mm cable. It draws 0.20A at 13.8V on the indicator circuit and mounts to a flat surface with the supplied screws after the end caps are removed.

Part number: 285CAT12.

See LED Autolamps 285 Series product information

Compatibility and Fitment

Match the 12V supply, front indicator function, lamp length and chrome end-cap style before ordering. The lamp supports horizontal or vertical mounting, so check the panel position, wiring route and front lighting layout before drilling.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Isolate the lighting circuit before fitting the lamp, then protect the cable from sharp edges and moving parts. After installation, test the indicator operation from the tow vehicle and confirm the front lamp position suits the trailer lighting layout.

Trailer Applications

Workshops fit this lamp to trailer fronts, truck bodies, bull bars and caravan panels where a slim amber indicator needs to sit close to the surface. It suits repair work as well as new body fit-outs using 12V lighting circuits.

Why Choose ICS Trailers

ICS Trailers supplies LED lighting for trailer repair, fleet maintenance and body fit-out work, so matching voltage, function and mounting style stays straightforward. Browse more products in the LED Lights
