Description

Overview

Designline rear direction indicator lamp replaces the rear indicator module in compatible Hella Designline and Jumbo lamp assemblies. It suits horizontal module positions and gives trailers a clear amber rear indicator without changing the whole lamp assembly. Because it runs on Multivolt input, it suits 12V and 24V trailer electrical systems.

Features

• Horizontal Designline rear direction indicator lamp for LED module replacement.
• Ultra Wide Visibility Optics improve side visibility from the amber indicator lens.
• Multivolt 9 to 33V operation suits mixed commercial transport setups.

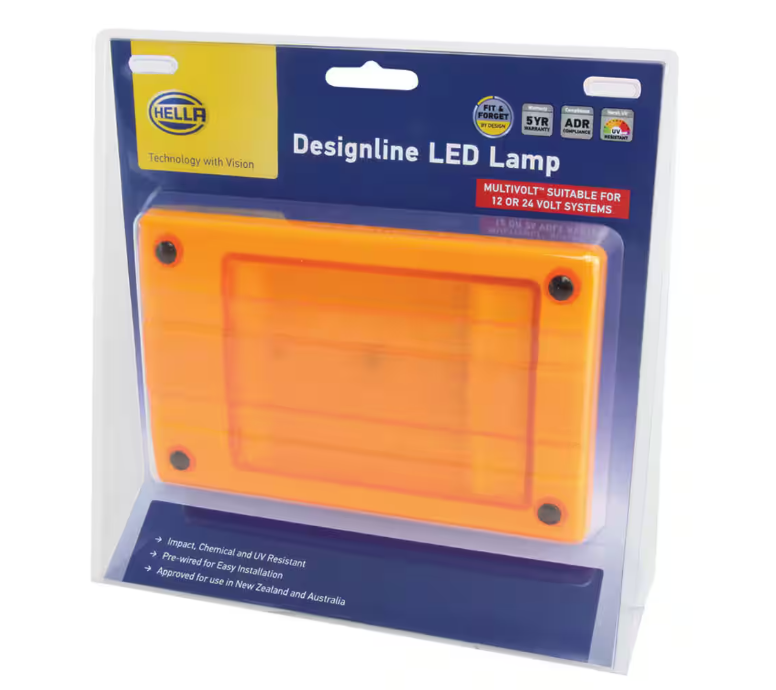

• Blister pack version for retail display and protected shelf storage.

Specifications and Materials

This Designline rear direction indicator lamp uses a four point recess mount and a 200mm pre-wired lead. It consumes 6W on the rear indicator circuit and includes reverse polarity protection with a 5000W transient voltage suppressor.

Part number: 2146-H24BL.

For current product family details, read the HELLA Jumbo and Designline LED lamps information

Compatibility and Fitment

Check the lamp housing, module orientation, wiring, voltage and indicator monitoring setup before ordering. This horizontal module matches Hella Designline series lamp housings and updates globe type Jumbo or Designline lamp modules. If the vehicle needs HCS indicator failure monitoring, use the HCS version instead.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm ADR 6/00 Cat 2a installation requirements and keep the module reference axis aligned with the vehicle longitudinal axis. Also check the drain hole, protect the cable from chafe and solder with heat-shrink for a sealed joint. The module does not include a reflex reflector, so fit a separate reflector where the trailer layout needs one.

Trailer Applications

Fleets and workshops fit this module to semi-trailers, truck bodies and commercial transport equipment with Designline or Jumbo rear lamp assemblies. It supports indicator module updates when the housing remains serviceable but the globe style module needs changing.
