Description

Overview

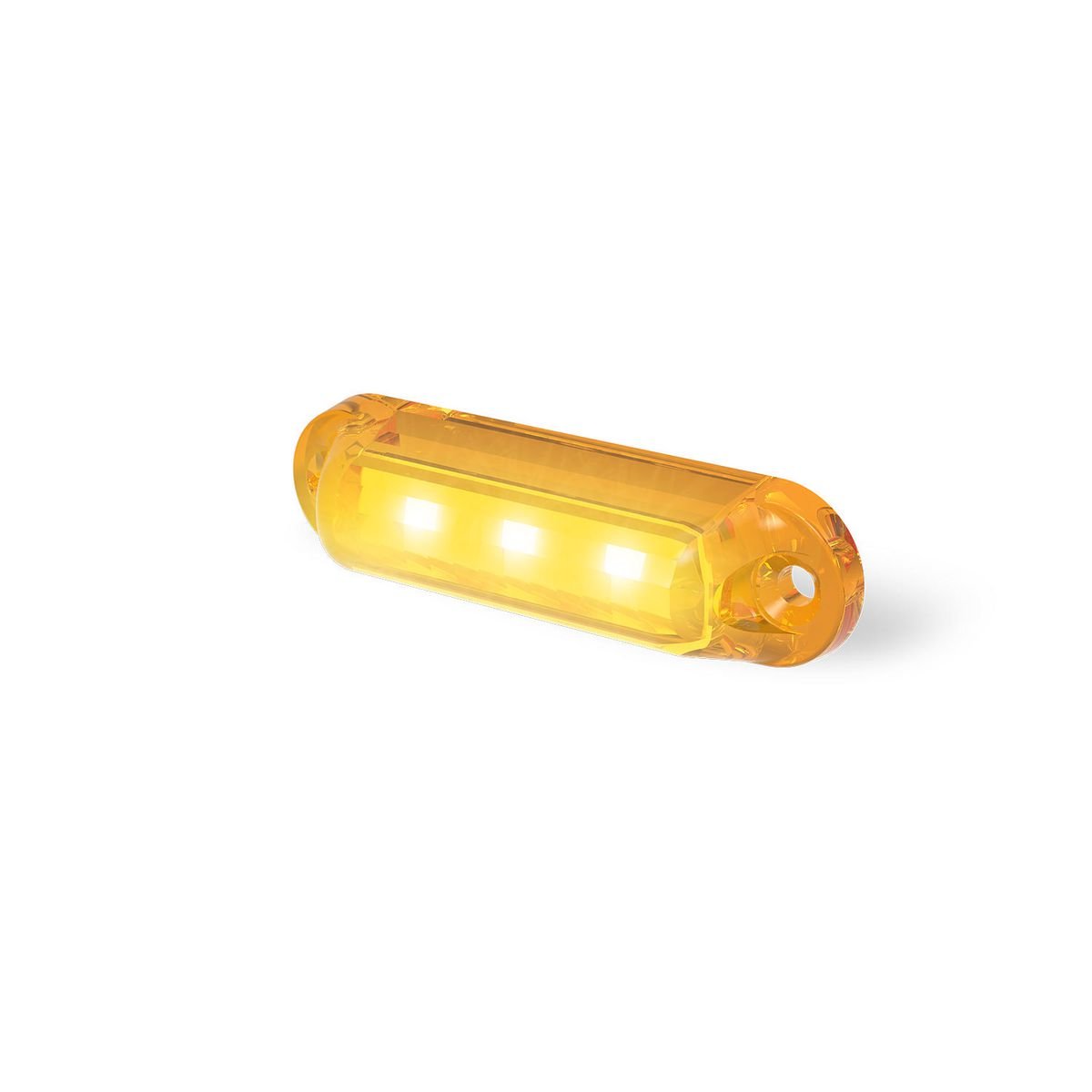

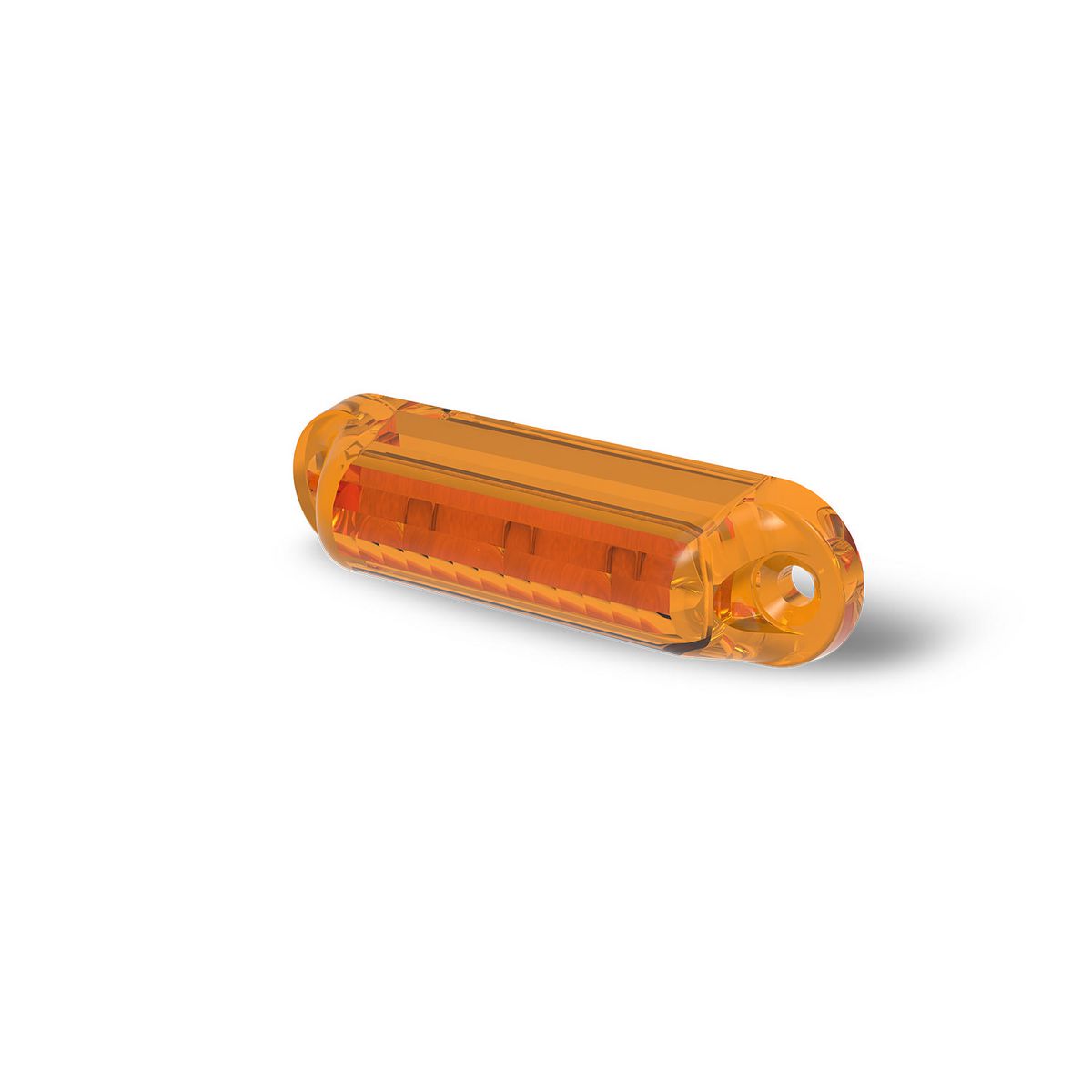

12V LED side marker lamp gives trailers a compact amber marker light for side visibility and body outline marking. Its slim 16 Series body helps when the trailer rail, guard or side panel has very little spare mounting room.

Features

• Amber side marker function for 12V trailer lighting circuits.
• Compact 58mm body suits tight side rail and body panel spaces.
• IP67 protection helps seal the lamp against dust and water.
• Screw mounting lets the lamp fit horizontally or vertically on a flat surface.

Specifications and Materials

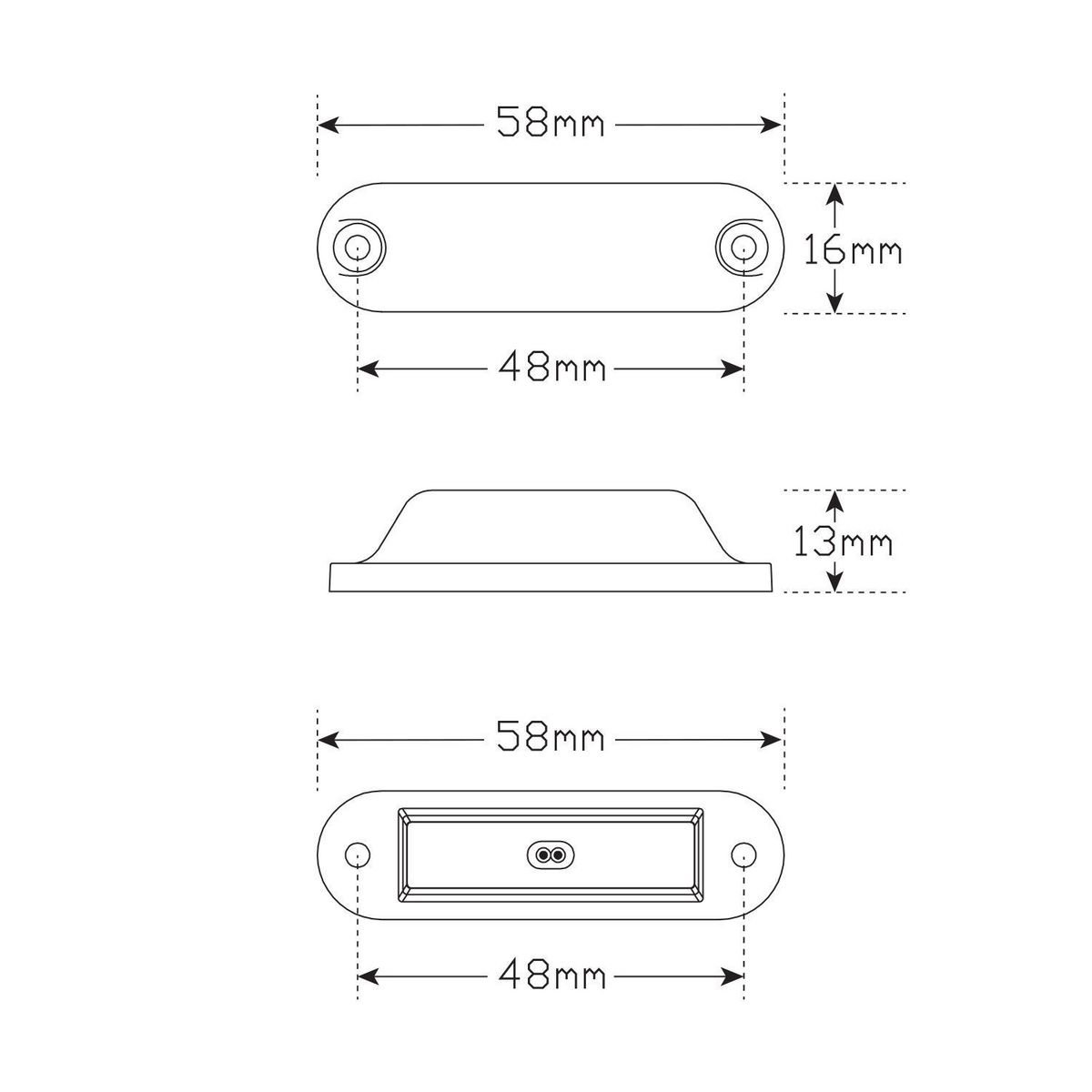

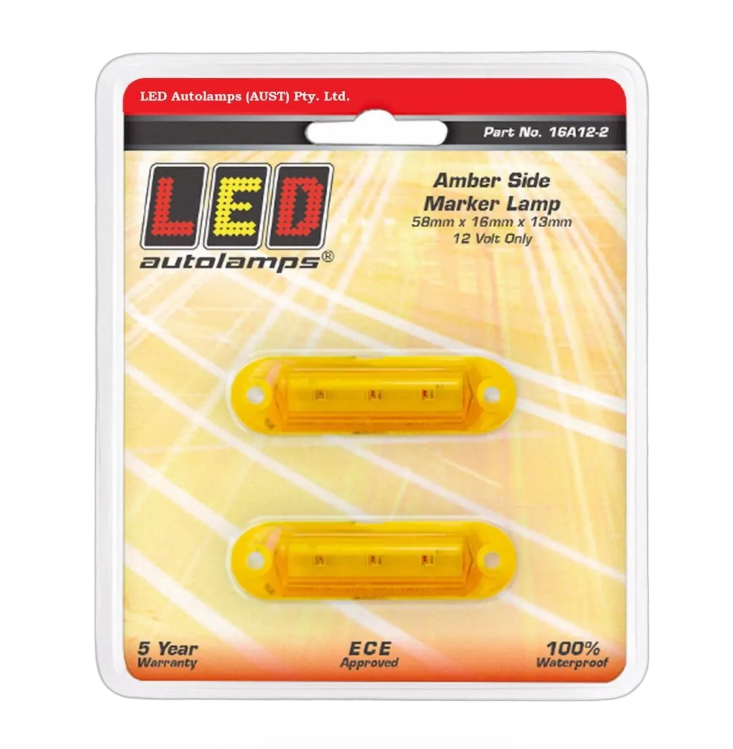

This twin blister pack carries two amber marker lamps with 3 LEDs per lamp, 20cm cable leads and PMMA/acrylic lenses. The lamp measures 58mm x 16mm x 12.6mm, and the side marker function carries ECE approval E9*91R00/17*22080*00 and CTA approval CTA-060174.

Part number: 16A12-2.

See the official 16 Series marker lamp guide for manufacturer technical details.

Compatibility and Fitment

Match this lamp to 12V amber side marker positions before ordering. Check the panel space, 48mm mounting hole spacing, cable path and lens colour, because the 16 Series also includes rear and front outline marker variants. The 12V LED side marker lamp mounts horizontally or vertically on a flat surface with the supplied screws.

Compliance and Safety

Mount marker lamps to suit the trailer layout and ADR 13/00 placement requirements. Also inspect the wiring path before tightening the screws, because cable rub or water entry can shorten lamp life. After installation, test the lamp in daylight and low light, then confirm the amber side marker remains visible from the side position.

Trailer Applications

Workshops fit this style of compact marker lamp on trailers, ute trays, service bodies and caravan-style bodies where side visibility matters but mounting space stays tight. Because the housing sits small and narrow, the 12V LED side marker lamp suits rails, guards and body panels that cannot take a larger clearance light.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for trailer repairs, body builds and workshop fit-outs. When matching a side marker, check voltage, lens colour, mounting space and approval markings before replacing the lamp. See more LED Lights
