Description

Overview

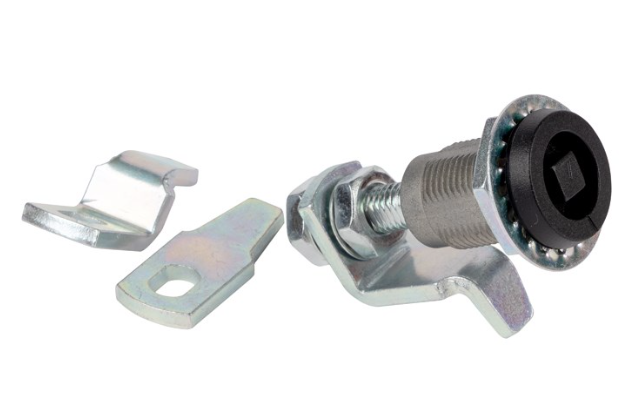

The 8mm square compression latch secures toolbox, compartment and access-panel doors with a tool-operated compression action that draws the cam firmly behind the frame. This black zinc alloy version includes three cams for matching different door and frame depths.

Features

• 8mm square driver for controlled tool-operated access
• Includes three cams covering a combined 12-81mm grip range
• 28mm diameter low-profile latch head
• Die-cast zinc alloy body with black powder coated finish

Specifications and Materials

Product type: tubular compression latch. Driver type: 8mm square. Head diameter: 28mm. Material: die-cast zinc alloy. Finish: black powder coat. Three cams are included.

The matching 8mm square operating key is sold separately.

Part number: CLT8SBL.

Review the manufacturer guidance for square-drive compression latches

Compatibility and Fitment

Match the 8mm square driver, 28mm latch head, panel opening, cam reach and required closed-door grip before ordering. The main mismatch risk is confusing this square driver with an 8mm hex, 7mm square or triangular latch that uses a similar round body.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. E3L1BP8S

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Secure the retaining nut and selected cam so vibration cannot loosen the latch during service. Test the door through repeated opening and closing cycles, confirming the cam clears the frame before rotation and applies firm compression without distorting the panel or seal.

Trailer Applications

Workshops fit this tubular compression latch to trailer toolboxes, service compartments, 4WD canopies, utility bodies, equipment cabinets and access panels that need a compact black latch operated by an 8mm square key.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Compression latches are easy to misidentify because 7mm square, 8mm square, 8mm hex and other driver styles can share a similar round body. ICS Trailers can help compare the old latch head, panel thickness, cam reach and closed-door grip before ordering. This version suits repairs needing a black, tool-operated latch with three cam options. Add the matching square key if the vehicle or toolbox does not already carry one.
