Description

Overview

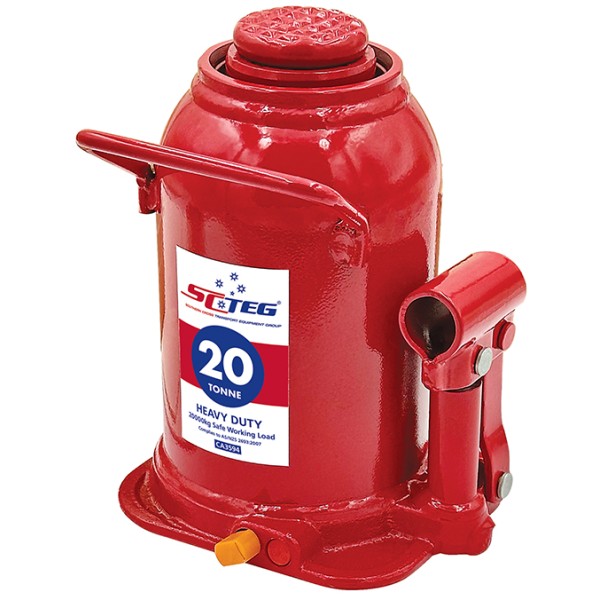

Hydraulic squat jack 20 tonne suits heavy lifting when ground clearance is tight. You can slide it under trucks, trailers, caravans, SUVs and 4WDs without fighting for space. It suits workshop, roadside and fleet jobs. It also focuses on controlled lifting, so you can set the load carefully. Because it sits low, it helps when tyres drop into ruts or suspension settles.

Features

• Low profile body for tight clearance lifting
• Lever operated hydraulic lift with 3-piece handle
• Horizontal or vertical operation for flexible setup
• Wide base for stability on hard, flat surfaces

The jack uses a simple lever action, so you can lift smoothly without power tools. It also suits lifting and pushing tasks where you need short travel. For longevity, the body uses a durable enamel coating that helps resist workshop grime.

Specifications and Materials

Part number: CA3594.
Hydraulic squat jack 20 tonne uses a self-contained hydraulic system with a screw adjusting head.
See vehicle jacks mandatory standard supplier guide for compliance context.
Safe working load: 20,000kg.
Minimum height: 195mm.
Maximum height: 365mm.
Screw adjusting height: 65mm.
Handle: 3-piece.

Compatibility and Fitment

Use this jack on firm, level ground and keep the load centred on the head cap. On soft ground, place a stable base plate first. Use rated stands for any work that lasts more than the lift. Chock wheels and apply the park brake before lifting trailers. Raise the load slowly and re-check contact after the first few pumps.

Compliance and Safety

The manufacturer states compliance with AS/NZS 2693:2007. Even so, never get under a vehicle that only a jack supports. Lift the load, place rated stands, and then lower onto the stands. Before first use, bleed the jack if it feels spongy. Open the release valve, then pump the handle several times with no load. Use high grade mineral hydraulic jack oil (ISO grade 10 to 15) when topping up. Store the jack upright, otherwise seals can weep and performance can drop.

Trailer Applications

Hydraulic squat jack 20 tonne works well for low-clearance trailer tasks like tyre changes and suspension checks. It also helps when you need a small lift to adjust coupling height. It suits caravans and plant trailers where the chassis sits low, so setup stays simpler. Keep the base clean for roadside use so it sits flat on bitumen. Switch to workshop lifting gear once you confirm the load point. Always plan a stand position before you start lifting around heavy trailers.

Cross-reference and Suitability

No confirmed interchangeable part numbers were identified for this jack, so select it by load rating and lift range.
