Description

Overview

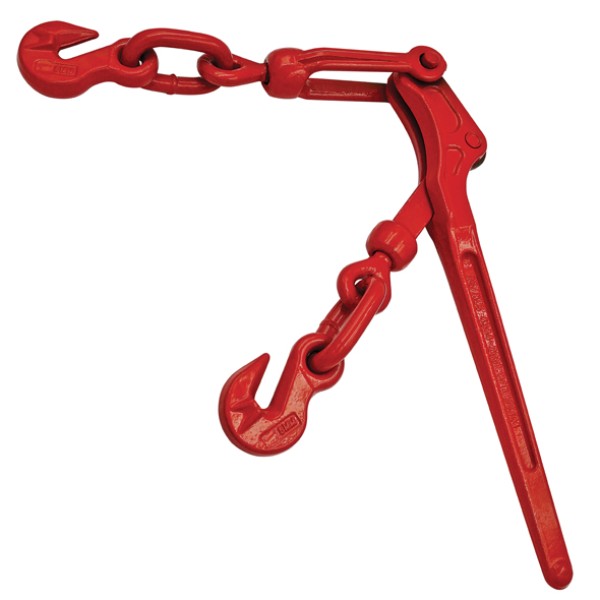

Load Binder Dog 8mm G70 3800kg is a chain tensioning dog for 8mm Grade 70 transport chain. It lets you take up slack quickly, so loads stay tight during transit. The swivel grab hooks also help the chain sit square on anchor points.

Features

Use this style of binder dog when you want a simple manual tensioner on a trailer or truck. Load Binder Dog 8mm G70 3800kg suits many transport chain setups, but you still need to match chain grade and ratings. If the chain is not Grade 70, choose a rated alternative instead.

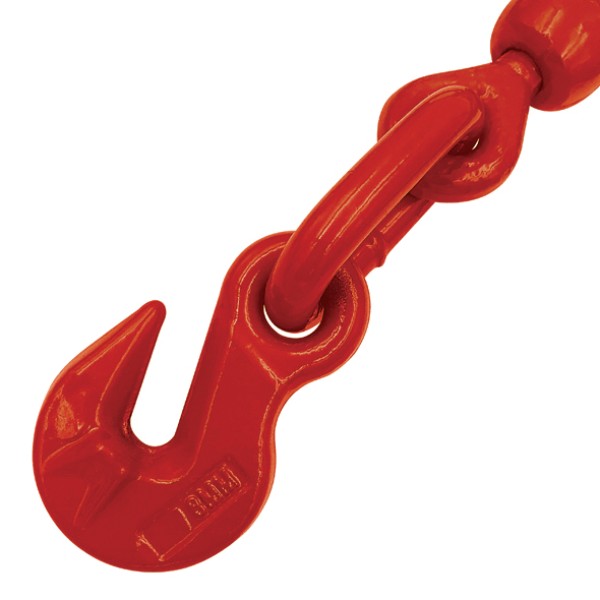

• Swivel grab hooks help reduce chain twist at awkward angles
• Drop forged and heat treated build for hard transport work
• Over centre action gives fast tensioning and quick release
• Heavy duty design for repeated use when inspected regularly

Specifications and Materials

Part number: CA4814.
Read WorkSafe Victoria load restraint safety guidance so you understand safe chain tensioning practices.

• Suits chain: 8mm Grade 70 (G70)
• Lashing capacity: 3,800kg
• Minimum break strength: 13,300kg
• Includes swivel grab hooks

The supplier states drop forged, heat treated steel components. Because chain restraint gear lives outside, clean and oil moving points as needed.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required.
No interchange list was provided, so selection depends on chain size and grade.

Compliance and Safety

This item is supplied as conforming to AS/NZS 4344:2001 for load binder hardware. However, safe use depends on procedure, training and inspection. Keep hands clear of pinch points when you tension or release the dog. Do not use an extension bar unless your risk controls specifically allow it. If you see cracks, bent parts or heavy wear, remove it from service.

Trailer Applications

Load Binder Dog 8mm G70 3800kg suits general restraint tasks on flat tops and drop decks. It also fits equipment trailers when you already run 8mm Grade 70 chain. When you restrain sharp loads, add corner protection so the chain does not cut in. As a result, you protect the chain and you keep tension more consistent.

Cross-reference and Suitability

No confirmed cross-reference part numbers were found for this item, so match it by chain size, grade and rated capacity only.

Why Choose ICS Trailers

ICS Trailers backs you with parts support for heavy vehicle trailers and restraint hardware. You can also bundle related components, so maintenance stays consistent across the fleet. Browse Hardware at ICS Trailers using Browse Hardware parts at ICS Trailers to find related load restraint items.
